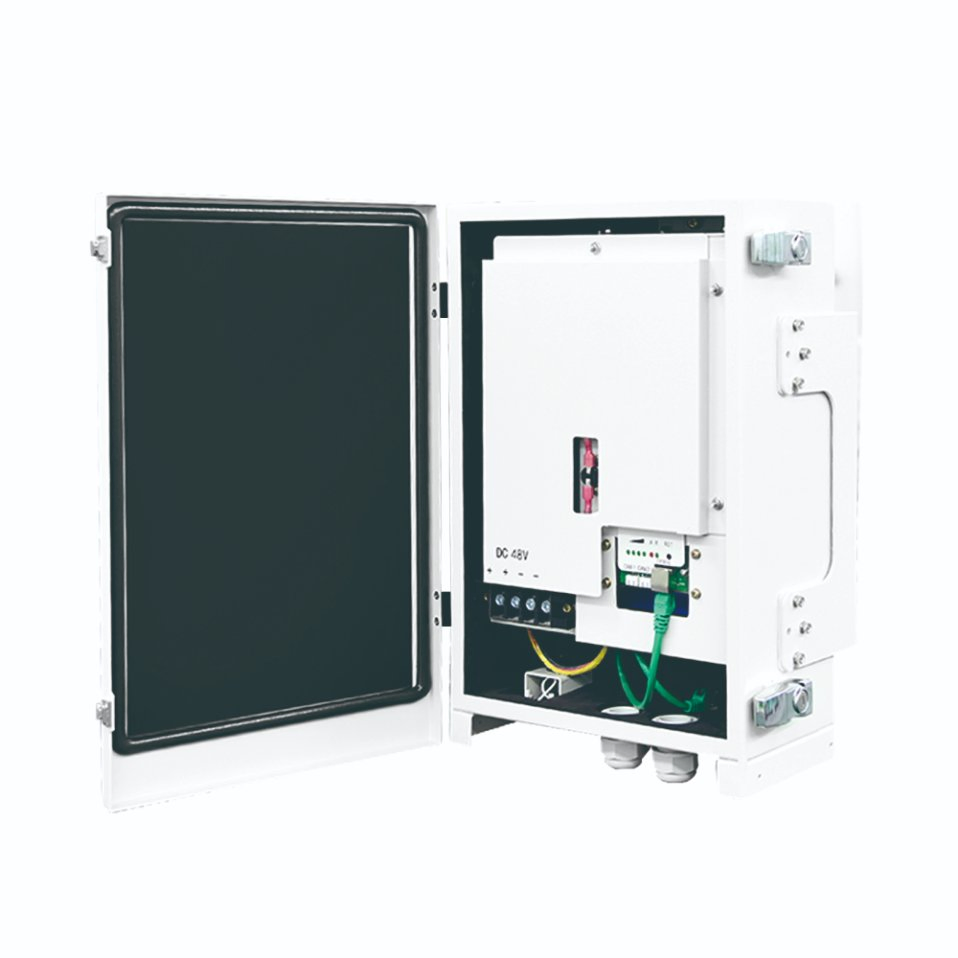

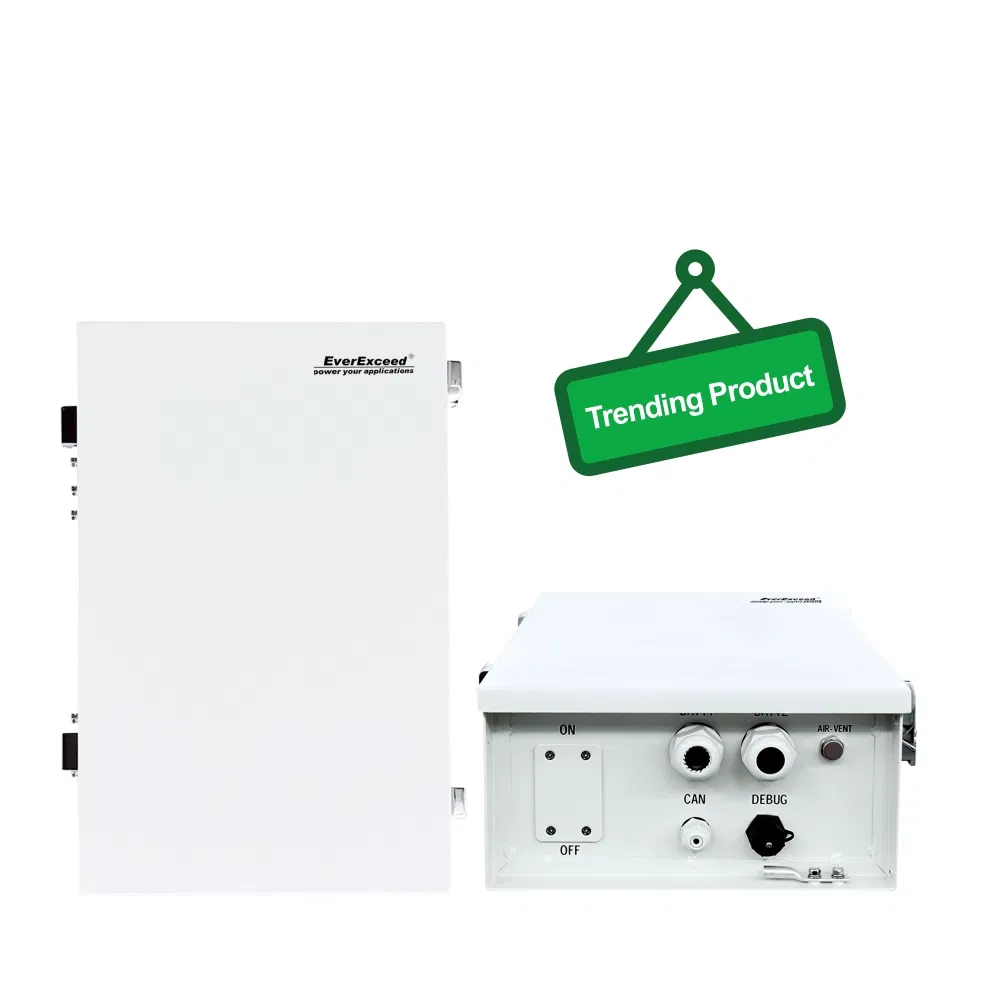

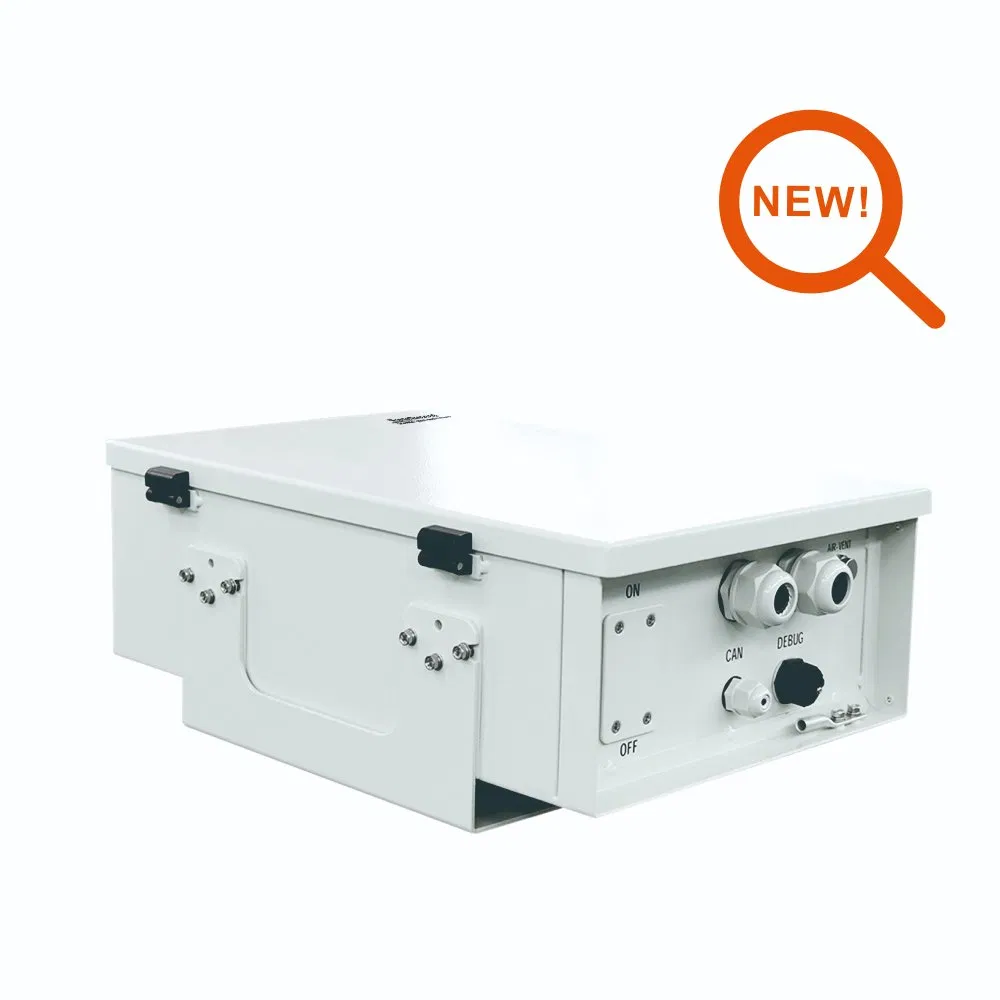

These LiFePO4 batteries adopt high energy density and conversion efficiency of lithium technology in excellent energy-saving performance and longer lifespan. They enable smooth site capacity expansion to support 5G evolution, cutting costs and shortening 5G deployment time. Designed with small size, high quality insulation materials, and strong anti-theft safety locks, they are highly safer, smarter and simpler for telecom 5G micro base stations.
15+ years of design life with >3000 cycles. Stable LFP cells remove fire risks during thermal runaway. Includes BMS with cell balancing and optional heating for environmental adaptability.
Intelligent automatic protection for overcharge and temperature. Bluetooth APP control reduces O&M costs by 80%. Supports RS485/CAN communication with a 70% smaller footprint than lead-acid.
Faster charging reaching 90% in 1 hour. Zero maintenance required throughout its lifetime. Compact design makes deployment easy and efficient.
| Battery Model | EV4805-T | EV4810-T | EV4820-T |
|---|---|---|---|
| Nominal Voltage | 48 V | 48 V | 48 V |
| Nominal Capacity | 5 Ah | 10 Ah | 20 Ah |
| Nominal Energy | 240 Wh | 480 Wh | 960 Wh |
| Max Charging Current | 5 A | 10 A | 20 A |
| Max Discharging Current | 15 A | 30 A | 60 Ah |
| Cycle Life | ≥3000 Cycles @ 100% DOD | ||
| IP Grade | IP 55 | ||
| Dimensions (mm) | 380 x 220 x 145 | 380 x 220 x 145 | 430 x 320 x 150 |
| Service | RMA (24/7 pre-sales and after-sales support), OEM, ODM |

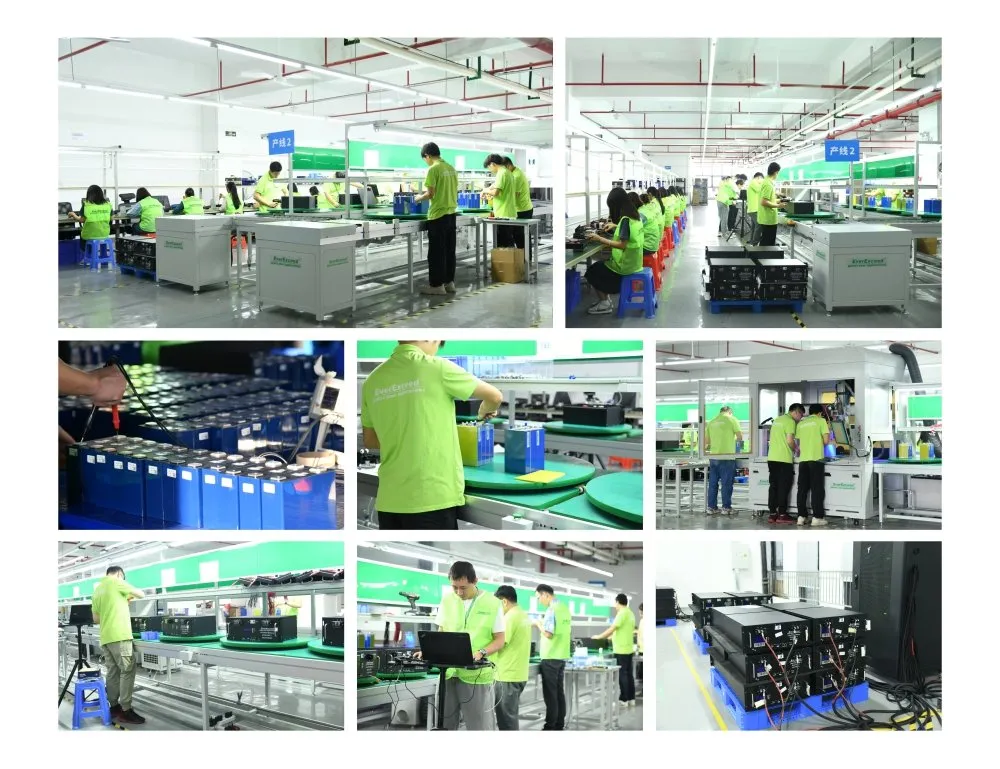

| Quality | Highly reliable quality guaranteed by advanced production equipment and European raw materials |
| Warranty | Standard 2 years, 5+ years upon request |
| Experience | Founded in 1985, 30+ years of battery manufacturing experience |
| Payment | T/T, L/C, Cash, Western Union etc. |
| Delivery | By sea/air/train/truck transportation; normally 4 weeks ex-factory |
