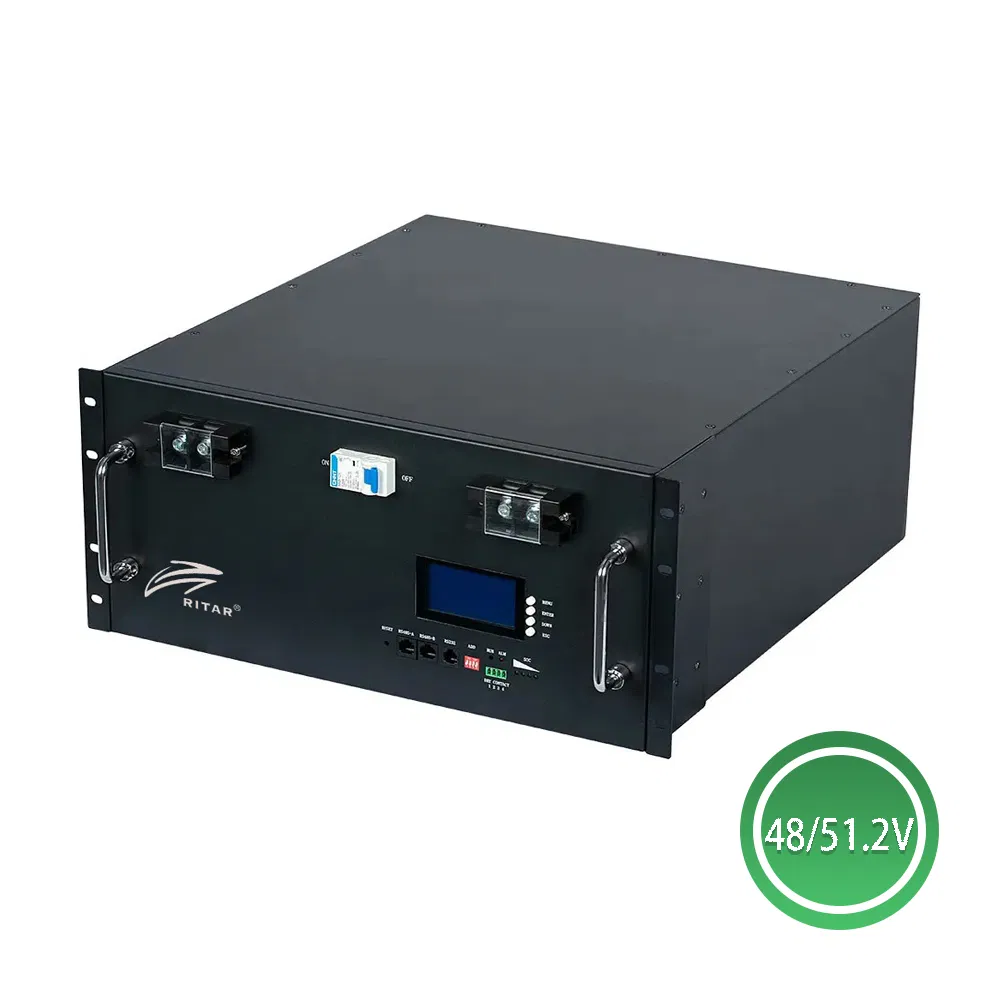

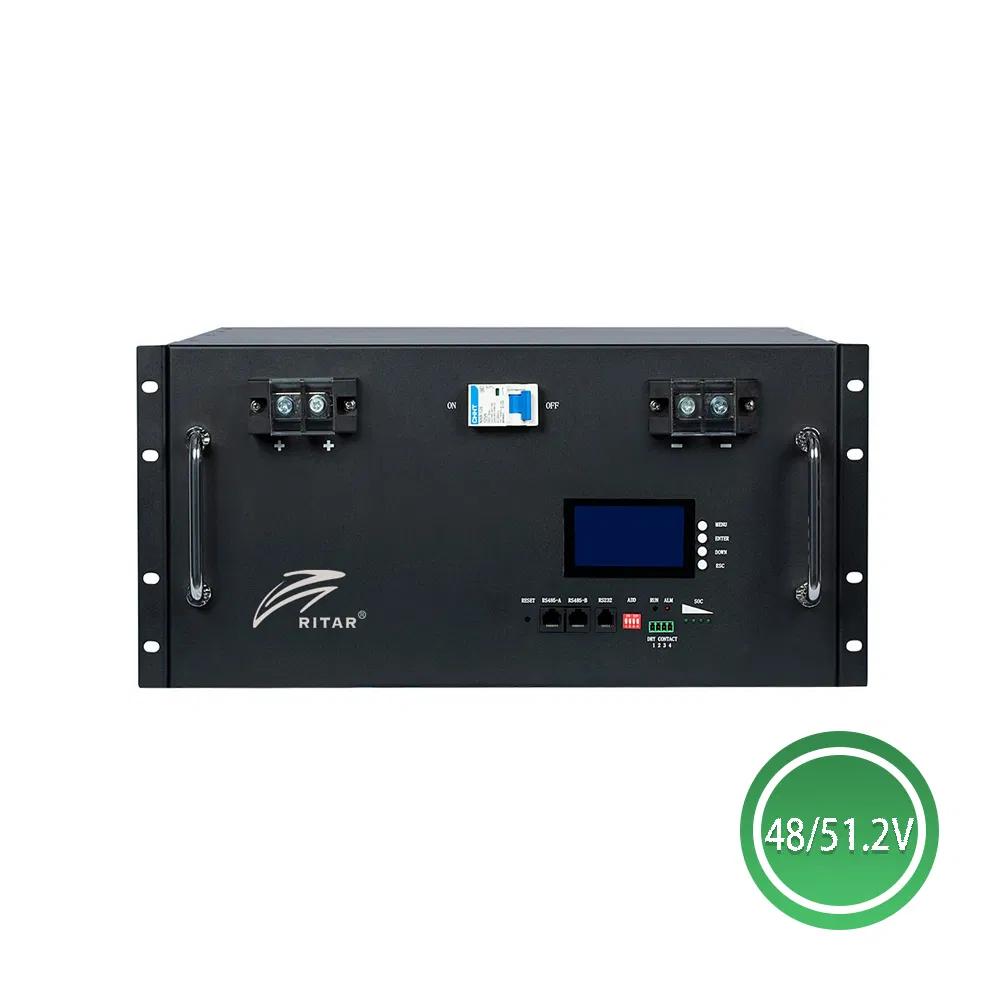

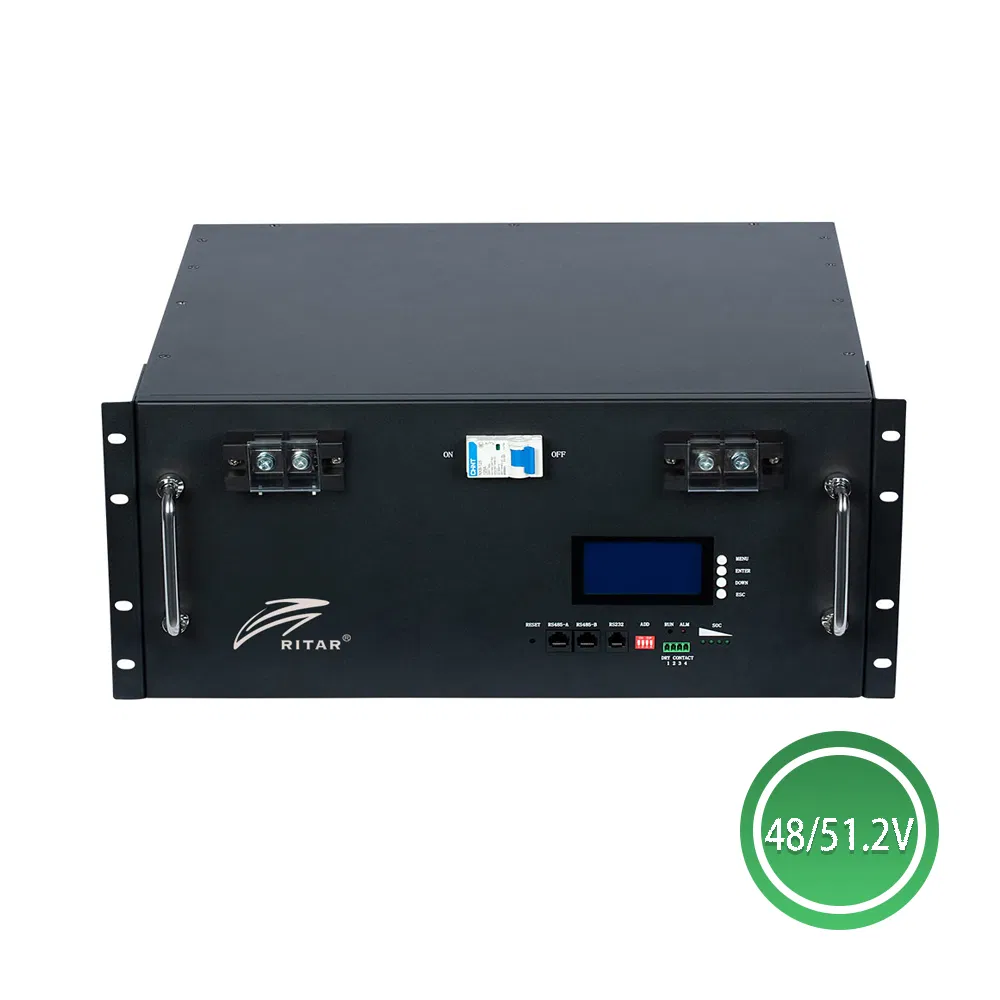

Telecom Rack Mounted Li-ion Battery System
The Rack Mounted lithium Battery system is designed for 48V/51.2V communication backup and energy storage. Utilizing advanced LiFePO4 (lithium iron phosphate) technology, it offers long cycle life, compact size, light weight, and superior safety. It is an ideal solution for harsh outdoor environments and critical backup power needs.

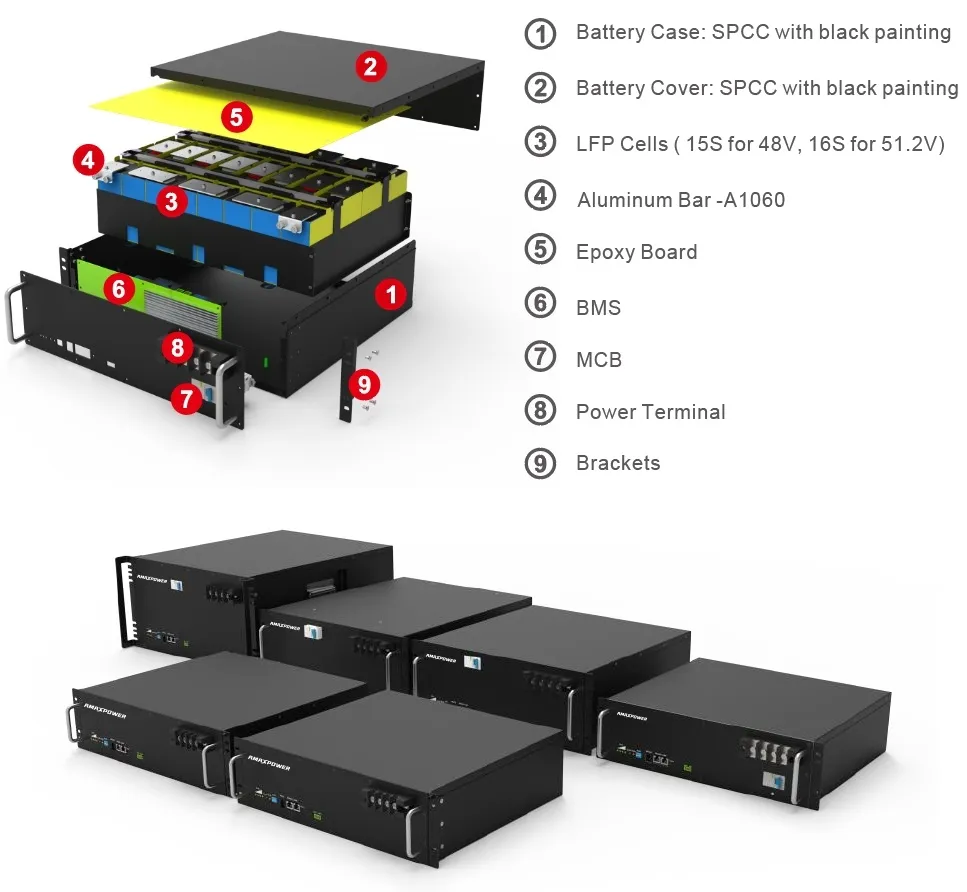

Grade A Prismatic LiFePO4 cells for maximum stability. Integrated protection for low voltage systems. Certified by UN38.3, MSDS, and CE.

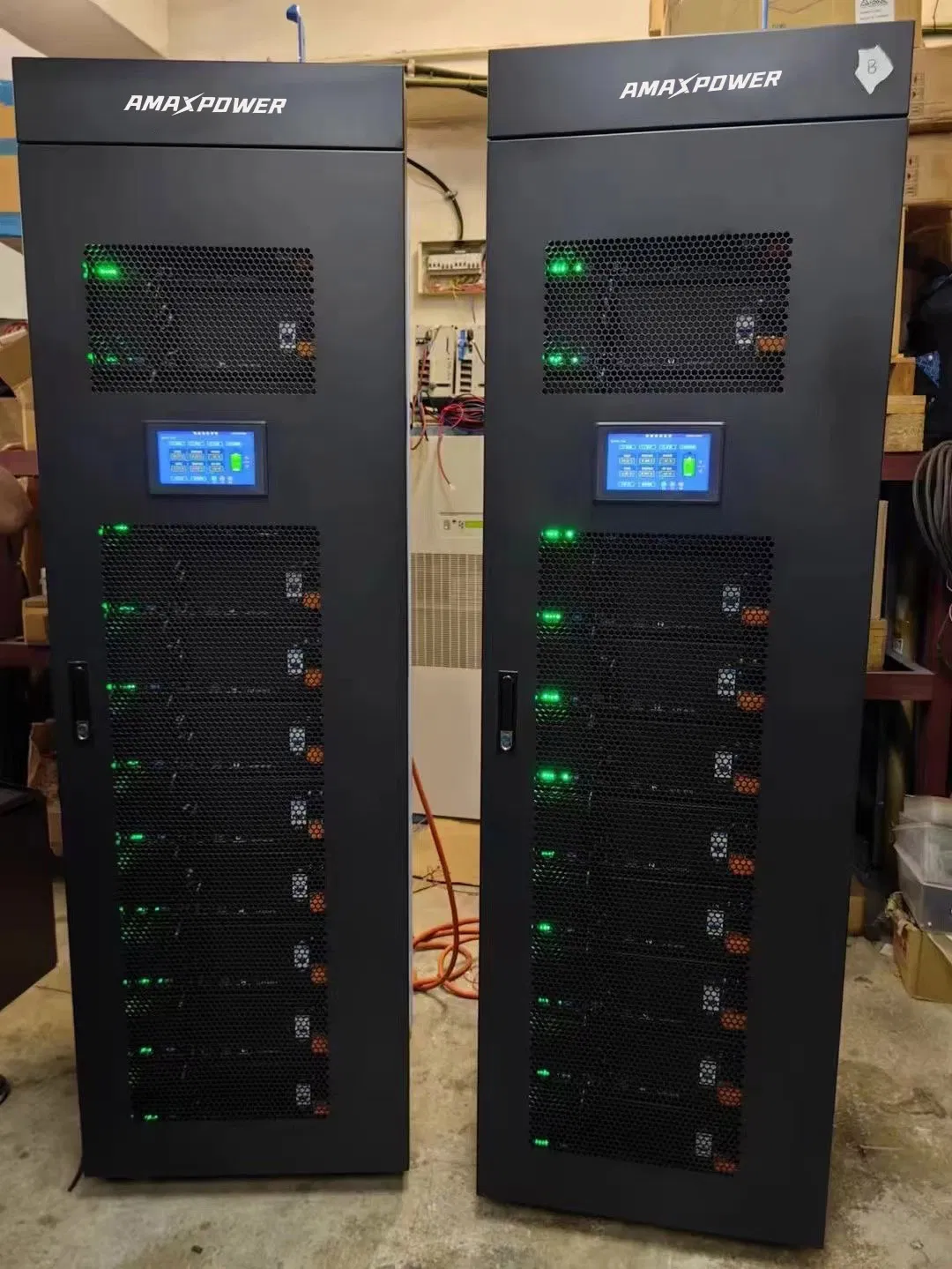

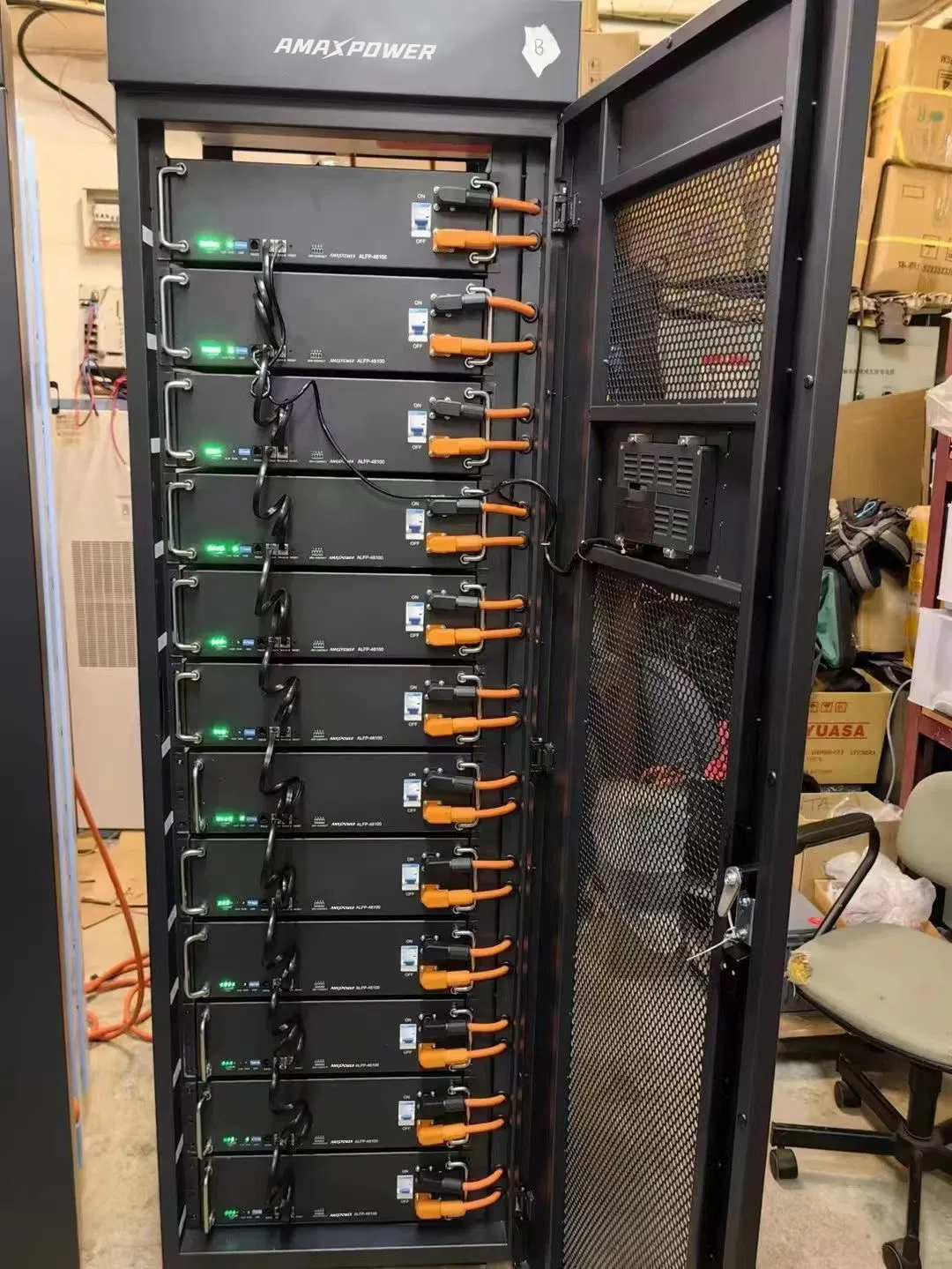

Standard 19" rack design for easy installation. Parallel support for expanded capacity. Maintenance-free with optional LCD display and Anti-theft GPS.
Integrated hardware BMS with independent charge/discharge protection. Features RS232, RS485, and CAN communication ports for real-time monitoring.
| Specification | 48V 100Ah | 48V 200Ah | 51.2V 100Ah | 51.2V 200Ah |
|---|---|---|---|---|
| Nominal Energy | 4.8KWh | 9.6KWh | 5.12KWh | 10.24KWh |
| Dimensions | 442*133*450mm | 442*222*480mm | 442*133*450mm | 442*222*510mm |
| Weight | 43KG | 80KG | 45KG | 84KG |
| Max Pulse Current | 150A / 200A | |||
| Cycle Life | ≥6000 cycles @80%DOD @25ºC | |||
| Operating Temp | Discharge: -20ºC~60ºC | Charge: 0ºC~55ºC | |||
| BMS Protection | Overcharge, Overdischarge, Overcurrent, Shortcircuit, Overtemperature | |||

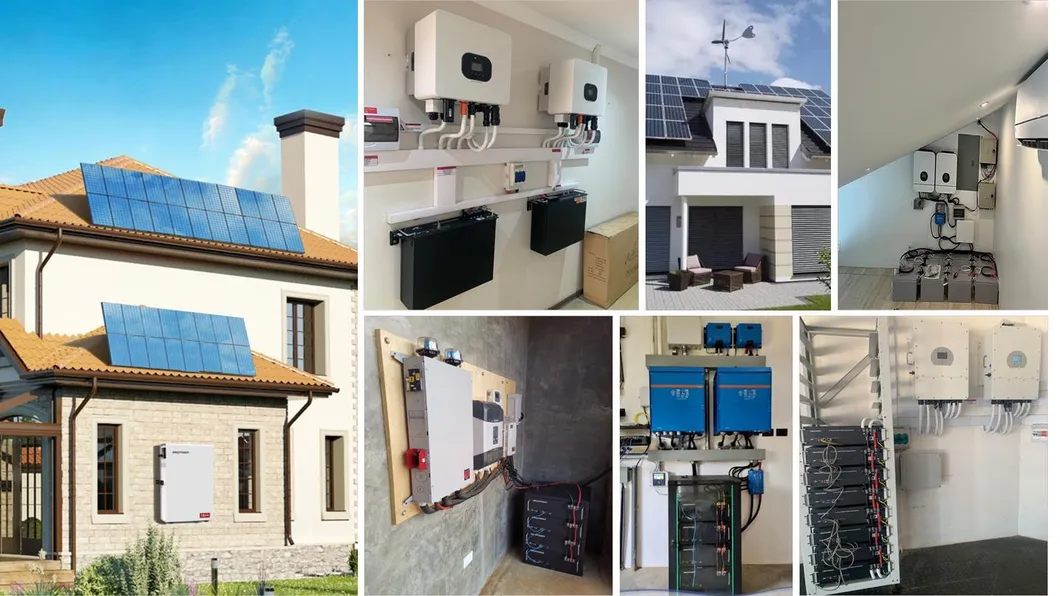

This LiFePO4 system is versatile for various energy needs including household solar energy, RV/Marine storage, telecom base stations, UPS backup power, and off-grid power generation.
