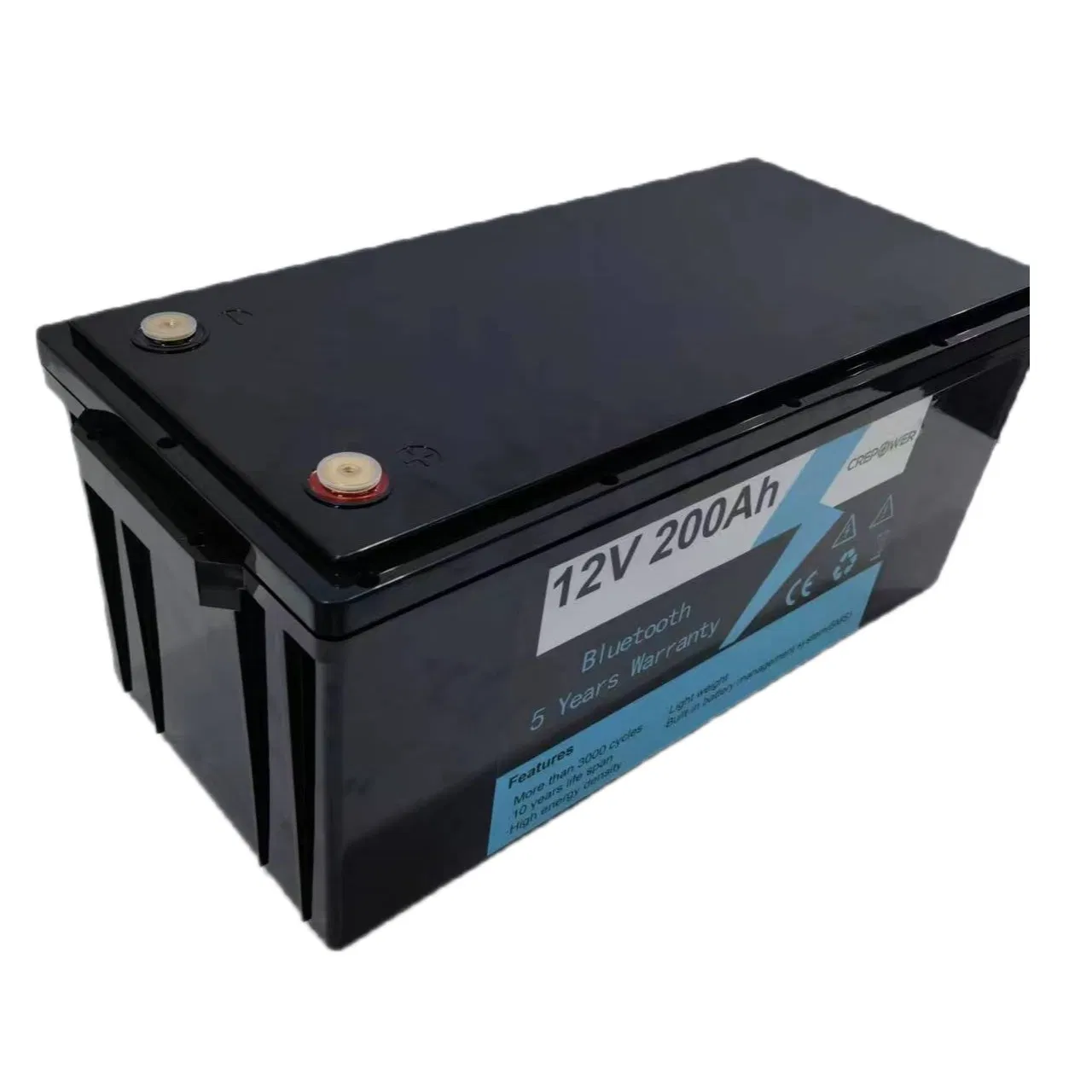

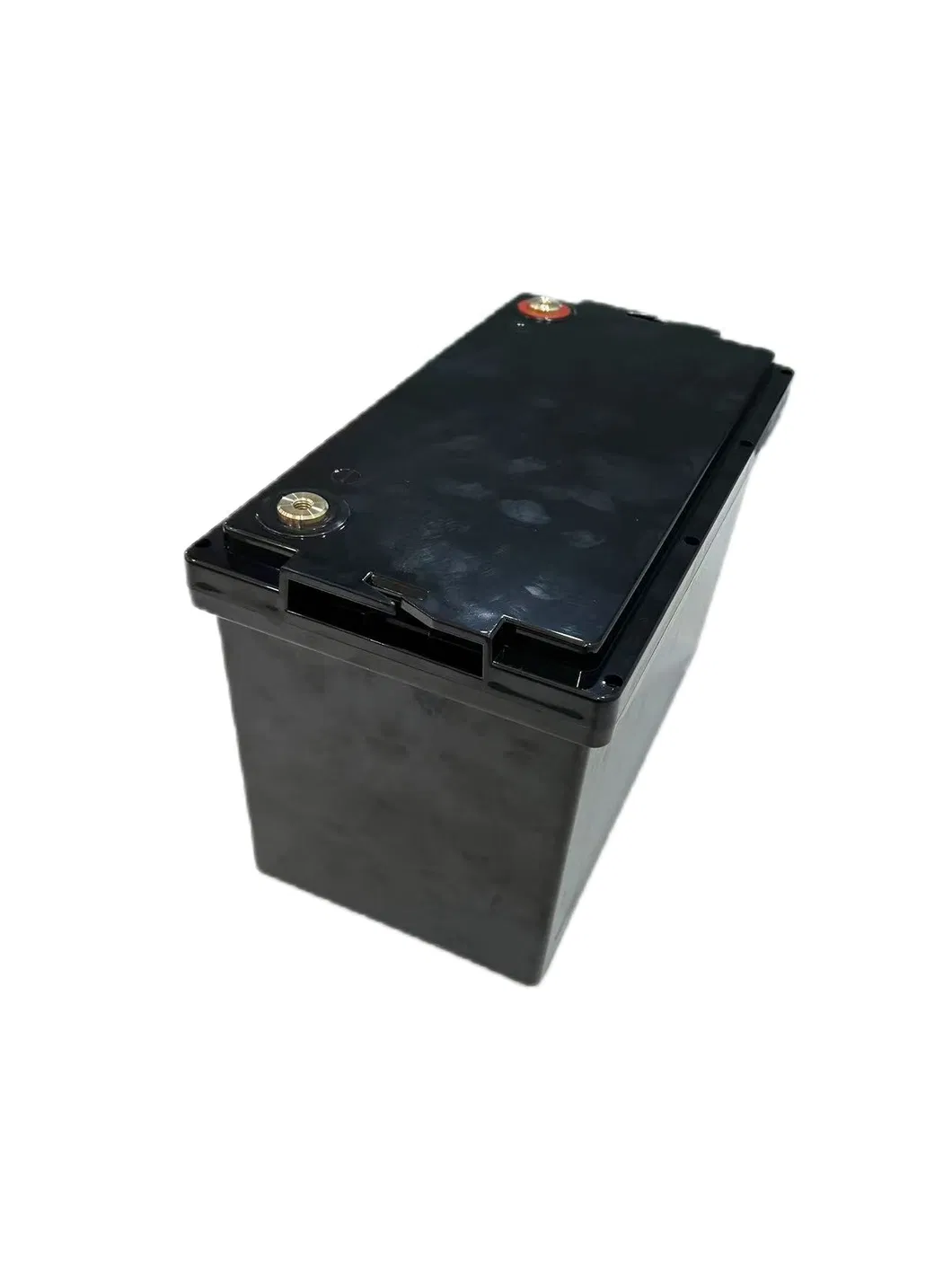

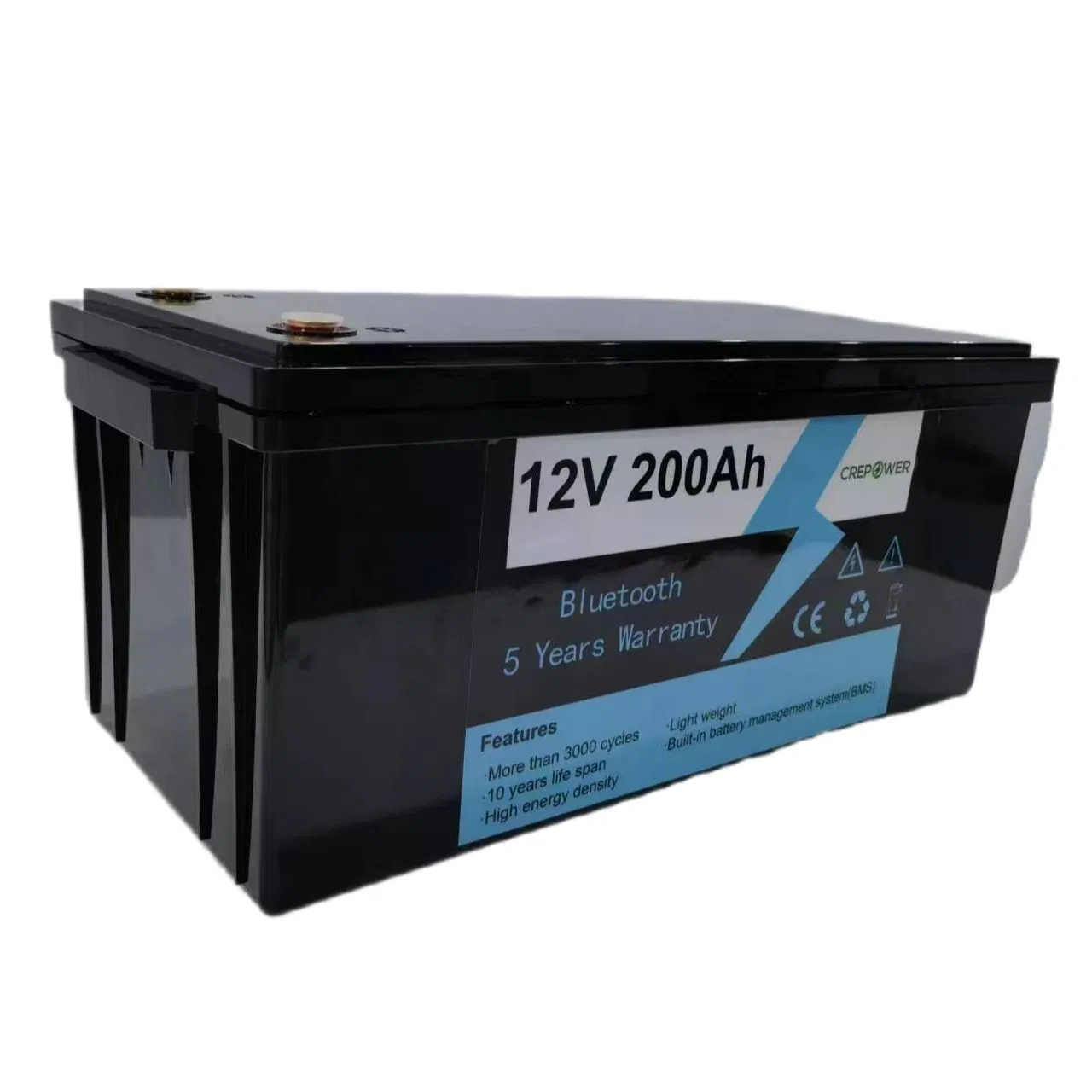

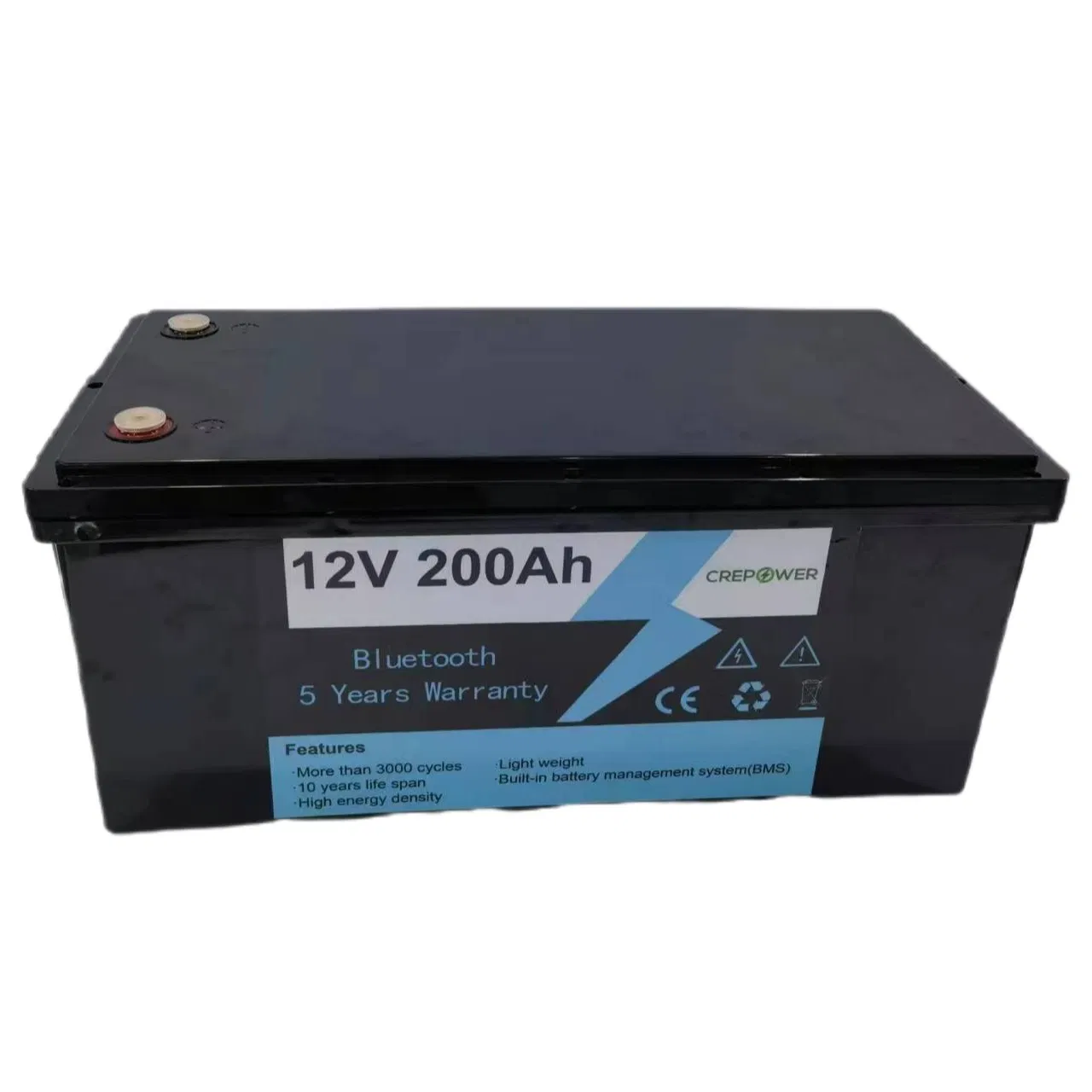

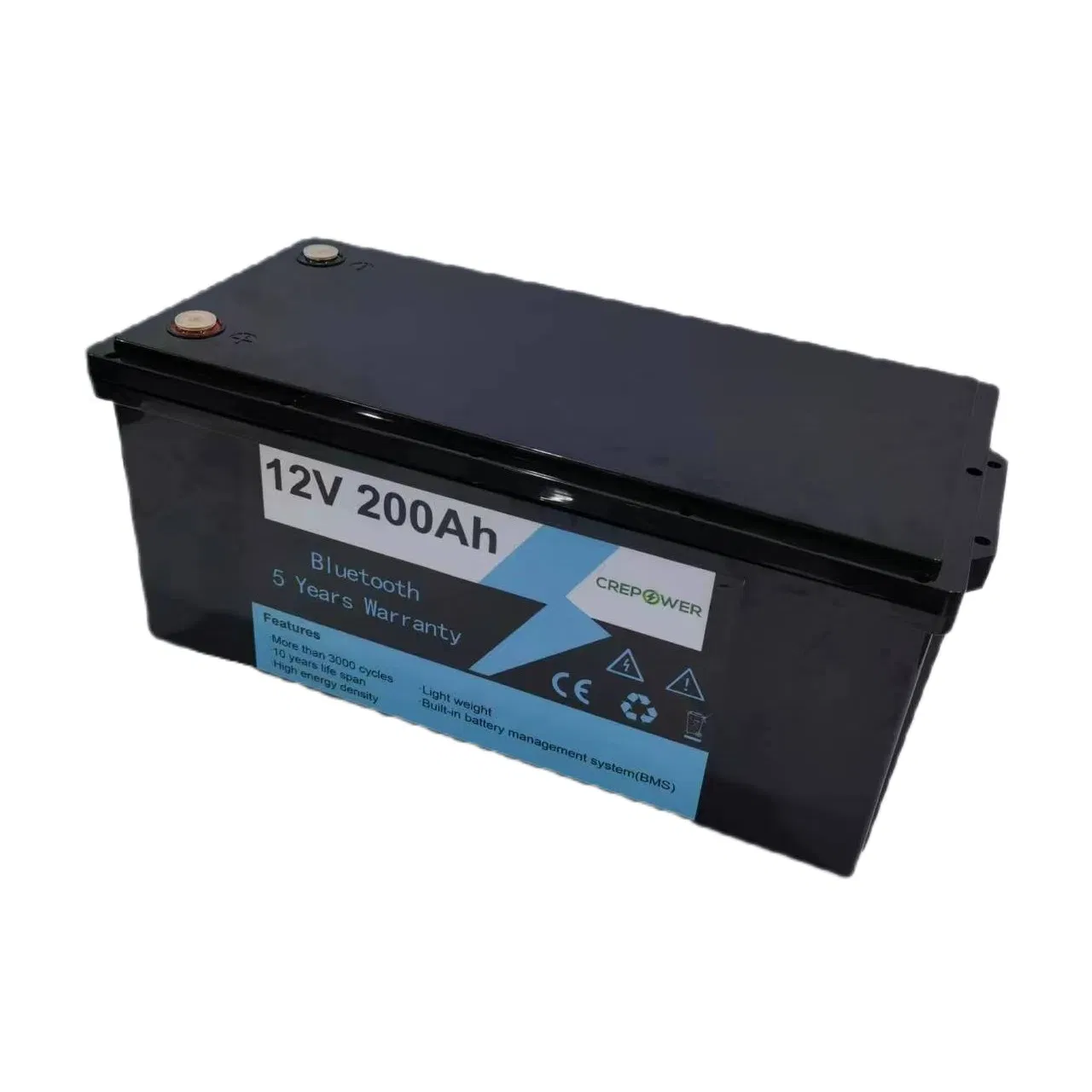

LiFePO4 12V 200ah Lithium Technology Smart BMS Inside Solar Storage Battery

1 / 5

LiFePO4 12V 200ah Lithium Technology Smart BMS Inside Solar Storage Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

CP12200

Nominal Capacity

200ah

Cycle Life

3000 Cycles

Voltage

12.8V

Energy

2.56kwh

Function

Bluetooth

Weight

26kg

HS Code

8507600090

Product Description

Hot Sale Solar energy storage 12.8V 200ah 2.56KWh LiFePO4 lithium-ion battery pack, equipped with intelligent BMS with Bluetooth function and remote monitoring function, made of A-class battery, long cycle life, high energy density, with the best structural design, light weight, easy to install, compatible with all inverters on the market, usually used in solar systems, residential/home systems, commercial systems, backup systems.

Technical Specifications

Parameter	Specification Details
Battery Type	Lifepo4 Battery (4S1P)
Nominal Voltage / Capacity	12.8V / 200Ah (2.56KWh)
Charge Cut-off Voltage	14.6V
Discharge Cut-off Voltage	10V
Standard Charge/Discharge Current	50A (0.25C)
Max Charge/Discharge Current	200A (1C)
Communication Interface	RS485/CAN/RS232
Cycle Life	≥ 3000 cycles (80% DOD)
Protection Grade	IP21
Dimensions	L521×W267×H219.5 mm
Operating Temperature	Charge: 0ºC-45ºC / Discharge: -10ºC-55ºC

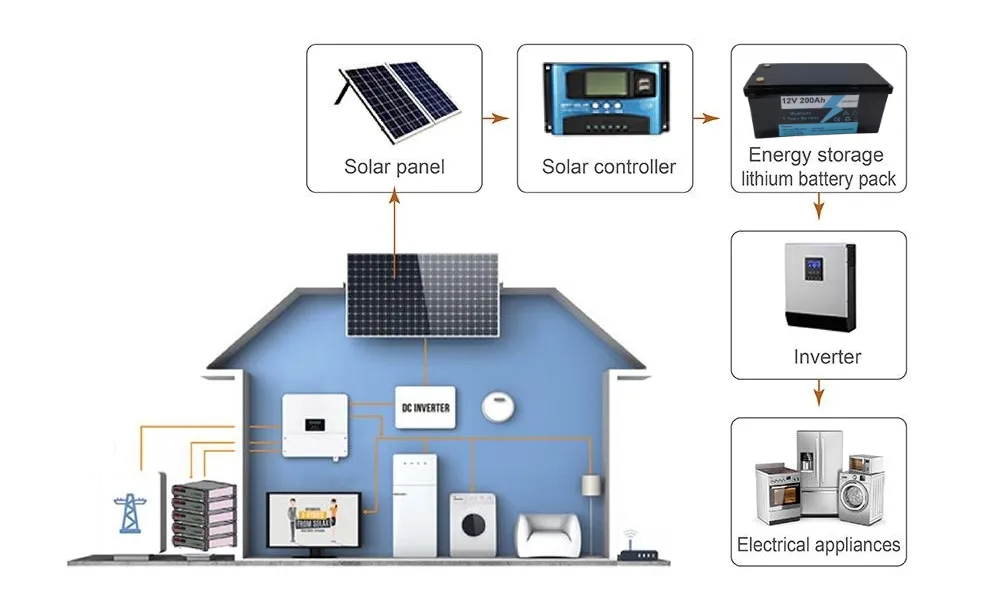

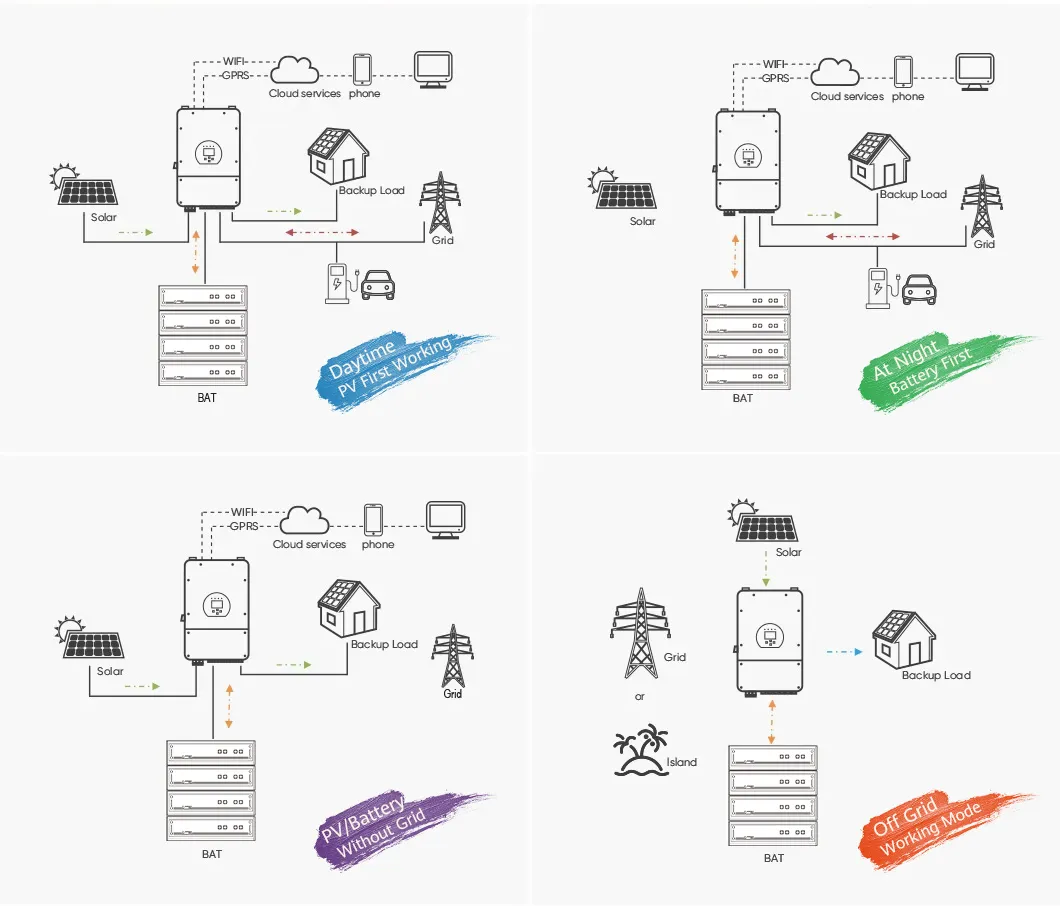

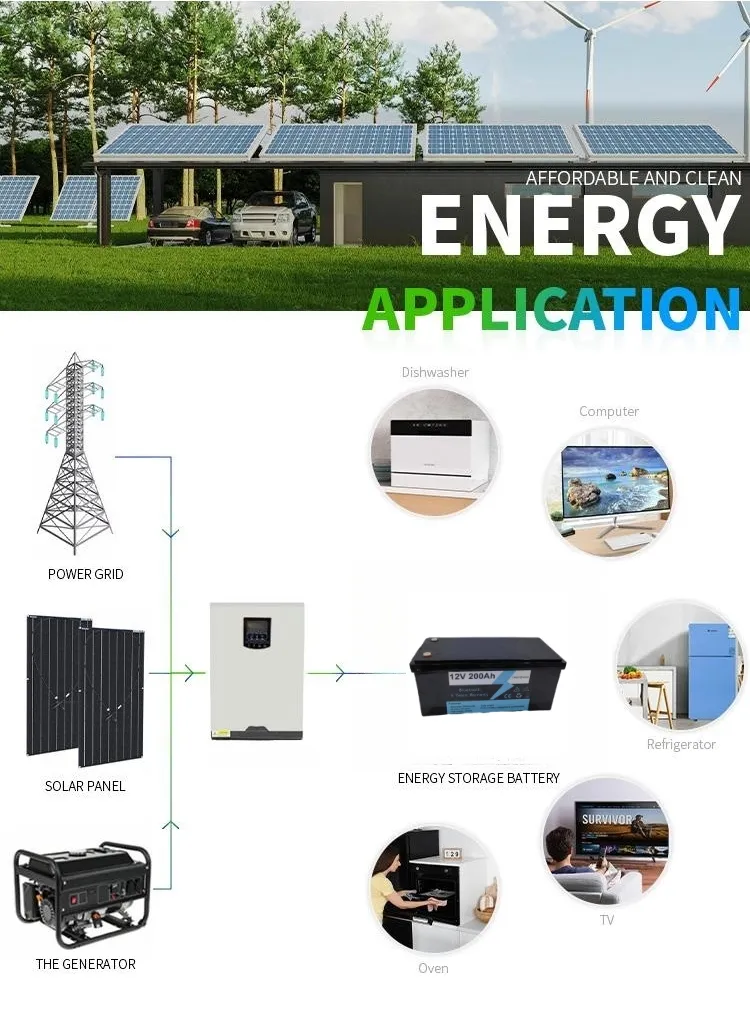

Applications & Usage

Core Advantages

Maintenance Free Design

Designed for low voltage hybrid inverters, with shells, cables and accessories ready for easy installation.

Deep Cycle Performance

Widely used in commercial and industrial solar projects. Features over 3000 deep cycles at up to 80% Depth of Discharge (DOD).

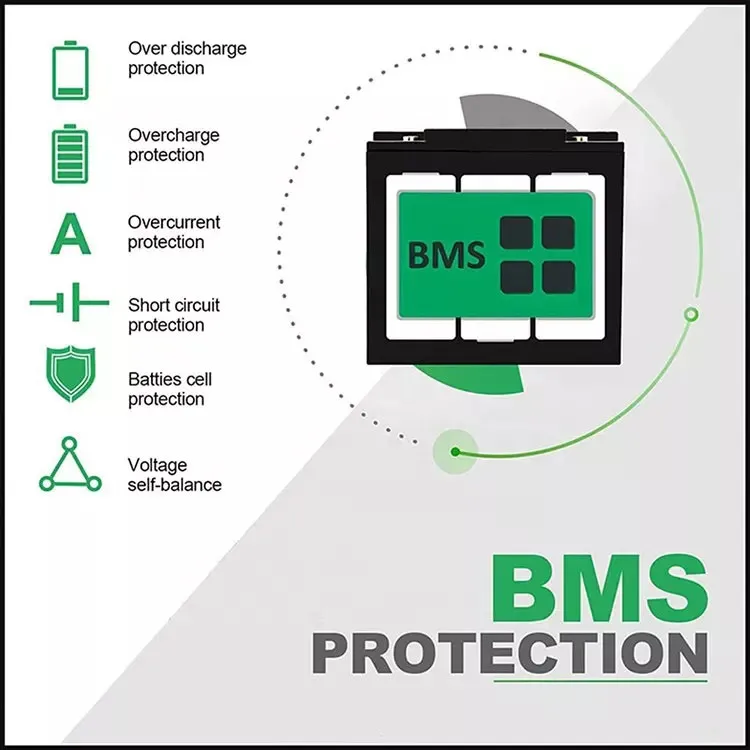

Smart Monitoring

WIFI-Bluetooth monitor allows 24/7 connectivity. Customise settings for personalised energy management and receive instant alerts.

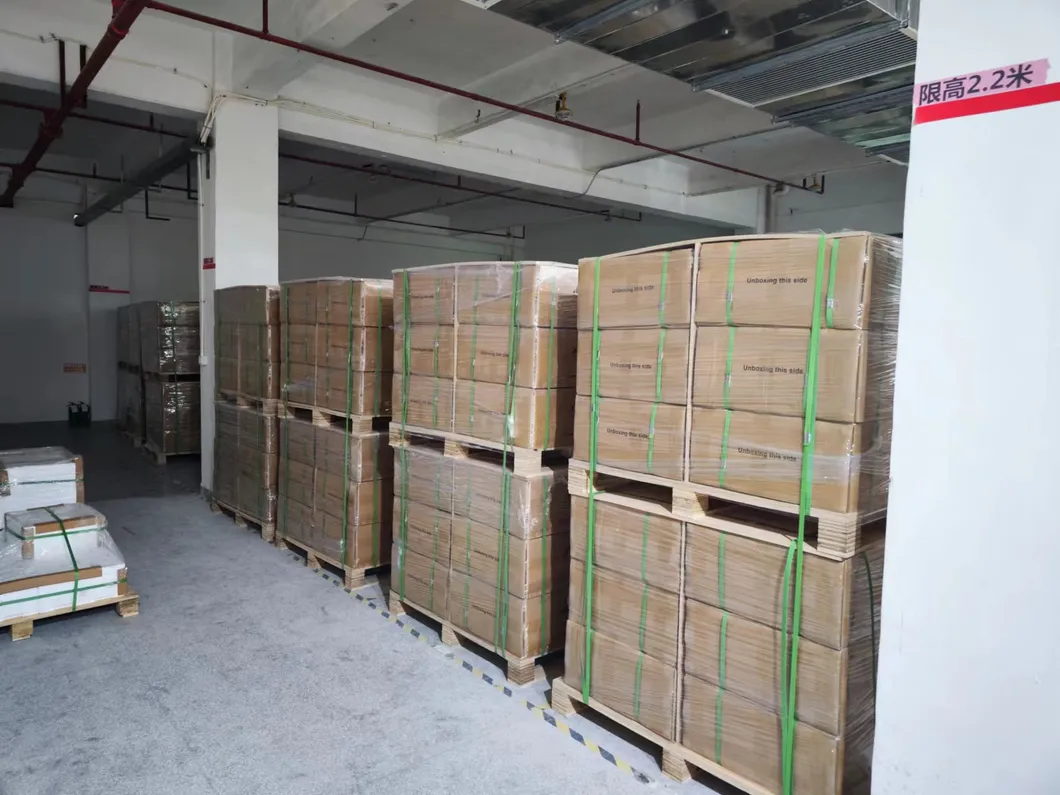

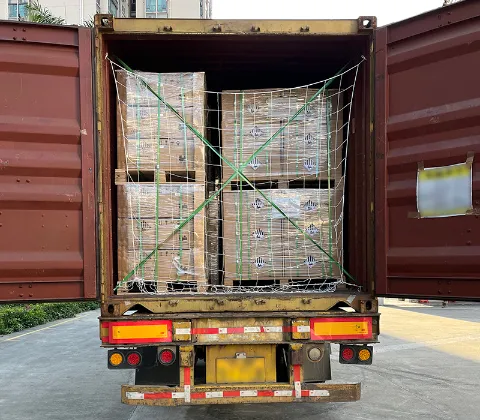

Packing & Shipping

Delivery Time: Normally within 15-21 days depending on quantity.

Shipping Methods: DHL, UPS, Fedex, Sea shipping, Air shipping, DDP, and CIF available.

Frequently Asked Questions

Can the battery be wired in parallel?

Yes, you can connect these batteries in parallel to increase your overall capacity.

What is the provided warranty for this battery?

We offer a 5-year warranty. We provide repair or replacement during this period for any quality-related issues confirmed via photo or video.

Does the mobile app allow checking individual cell voltage?

Yes, the Bluetooth-enabled App allows you to monitor the real-time voltage of each individual cell at any time.

How do I wake up the battery if it enters protection mode?

You can use a compatible lithium charger. Our lithium chargers are designed to wake up protected batteries automatically.

Do you support OEM or custom labeling?

Yes, OEM/ODM services including custom logos, stickers, and battery case designs are fully supported.

Is there a Minimum Order Quantity (MOQ)?

There is no strict MOQ limit. Small sample orders are welcome, though larger quantities benefit from better pricing.
