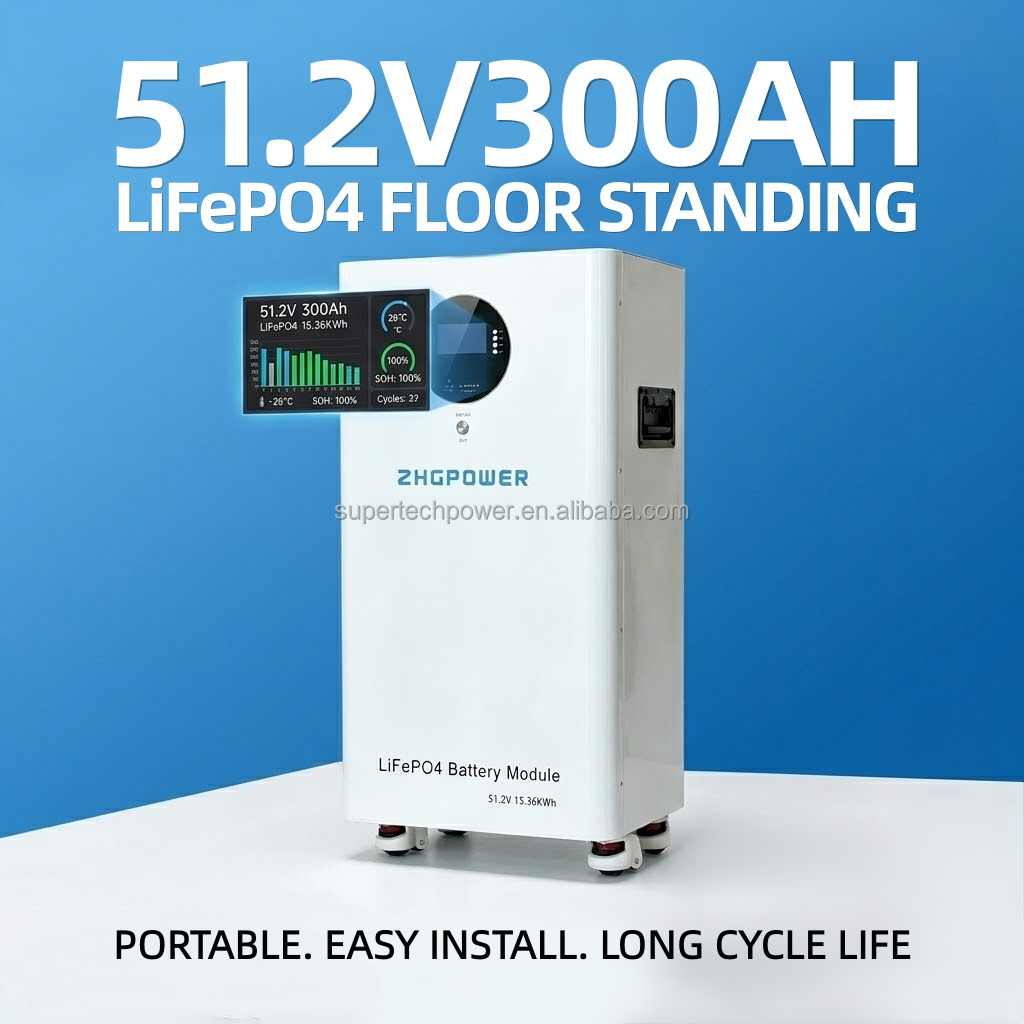

Delivering a massive 15.36kWh of energy, this 280Ah/300Ah/314Ah class battery is designed to power large households for 24+ hours. One single unit provides more power than three standard 5kWh batteries, significantly saving installation space and system complexity.
Stay in control anywhere, anytime. Upgraded with built-in WiFi and Bluetooth, you can monitor voltage, SOC, cycle count, and health status in real-time via our dedicated App. The integrated LCD screen provides instant data access at a glance.
Safety is our top priority. Equipped with an intelligent active balancing BMS and a built-in circuit breaker, the system provides full safeguards against over-charge, over-discharge, over-temperature, over-current and short-circuit faults, delivering stable and secure operation throughout use.

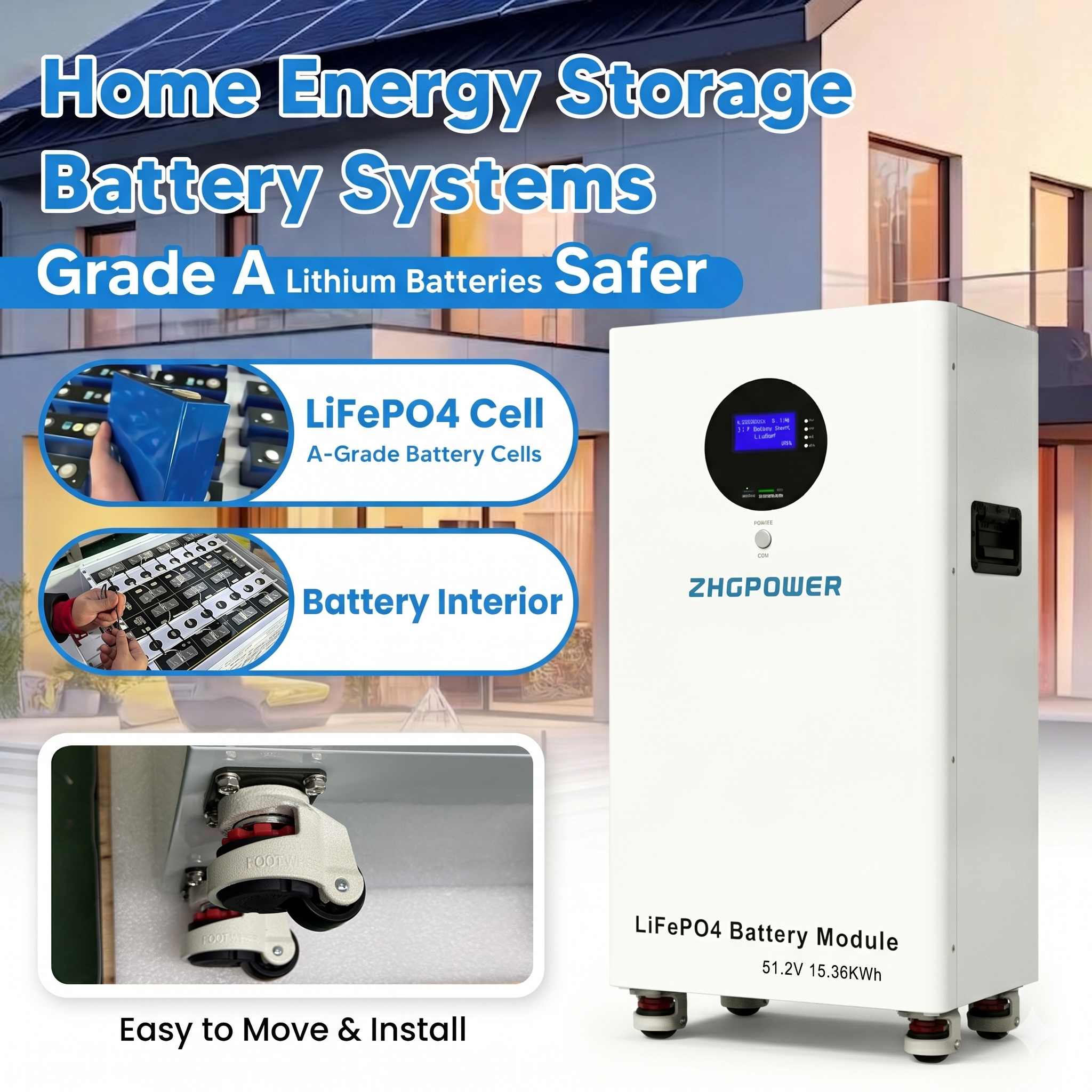

Featuring brand-new Grade A 314Ah/300Ah/280Ah cells, our battery provides 6000+ deep cycles at 80% DoD. With a 10-20 year designed service life, it offers the lowest cost per kWh for long-term solar storage and off-grid living.

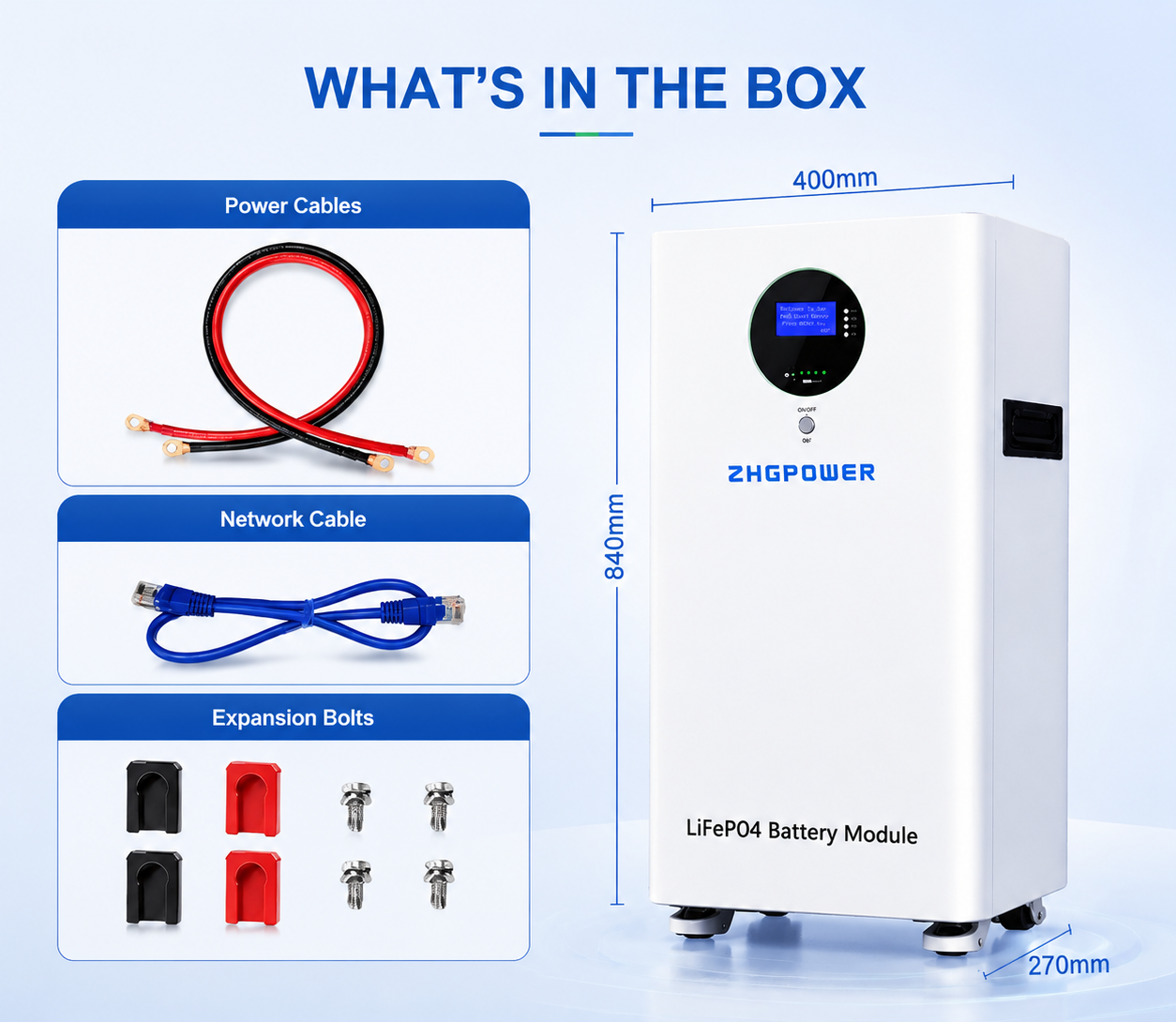

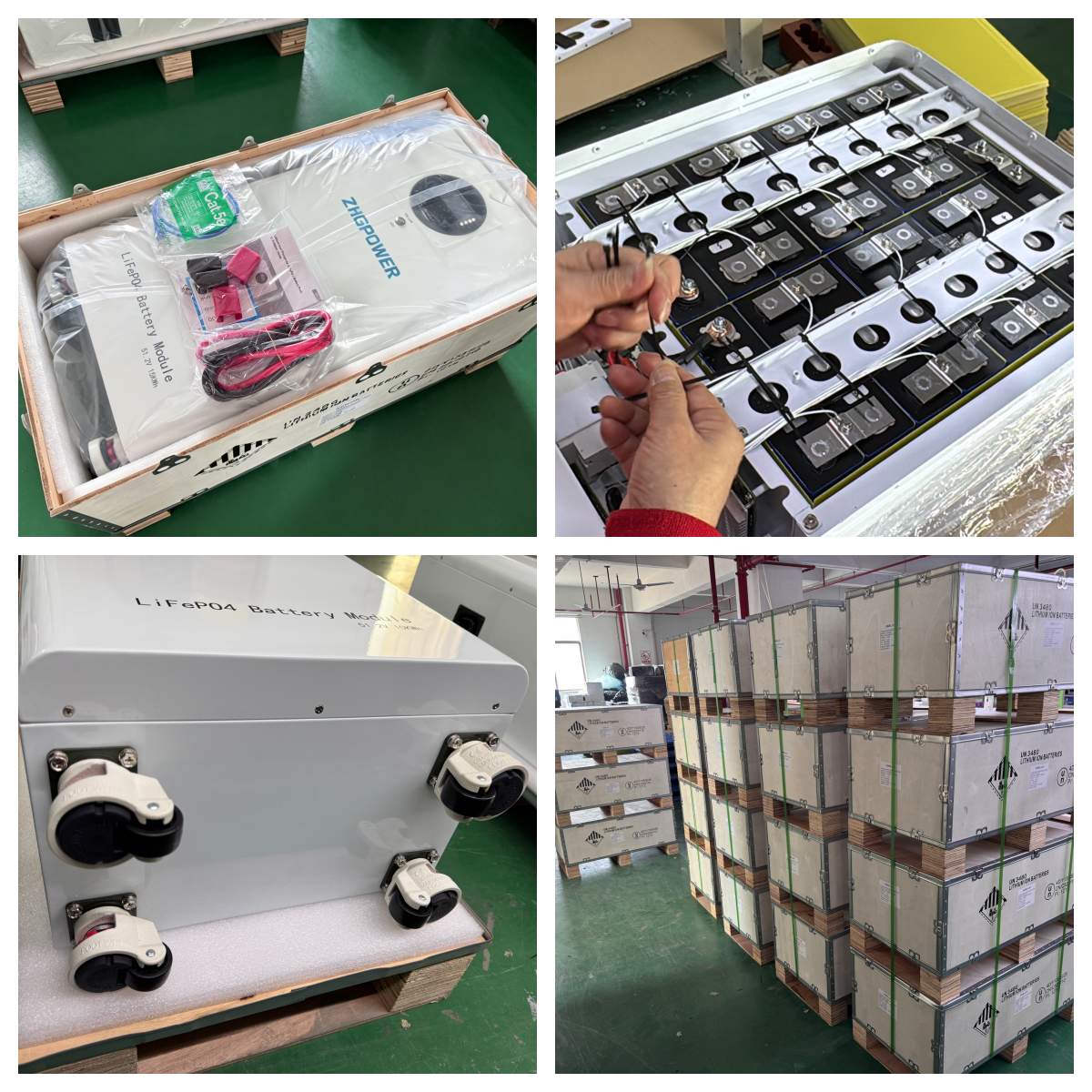

No wall-drilling needed! Our mobile vertical cabinet includes high-capacity wheels (100kg+ load) for easy movement. Featuring RS485/CAN/RS232 ports, it is plug-and-play compatible with 95% of mainstream inverters (Deye, Growatt, Victron, etc.)
| Item | Parameter Value | |
|---|---|---|
| Battery Model | ZHG16S300LFPMM |
Other models available: 51.2V (48V) · 100Ah / 200Ah / 300Ah 25.6V (24V) · 100Ah / 200Ah |
| Rated Capacity | 300Ah | |
| Rated Voltage | 51.2V | |
| Battery Type | Lithium Iron Phosphate (LiFePO4) | |
| Operating Voltage Range | 43.2V~57.6V | |
| Maximum Charging Current | 200A (continuous) | |
| Maximum Discharging Current | 200A (continuous) | |
| Operating Temperature | 0°C~50°C (equipment operating environment) | |
| Charging Temperature | 0°C~55°C | |
| Discharging Temperature | -10°C~55°C | |
| Storage Temperature | -10°C~50°C | |
| Communication Interface | RS485/CAN/RS232 | |
| Communication Protocol | Can match the mainstream inverter protocols on the market | |
| Cycle Life | ≥6000 cycles (80% DOD, 0.2C, 25°C) | |
| Self-Discharge Rate | ≤3%/month | |
| Assistance Function | BMS (over-voltage, under-voltage, over-current, short-circuit, over-temp, low-temp protection), SOC/SOH calculation, cell balancing, fault recovery, display, Bluetooth/WiFi monitoring | |

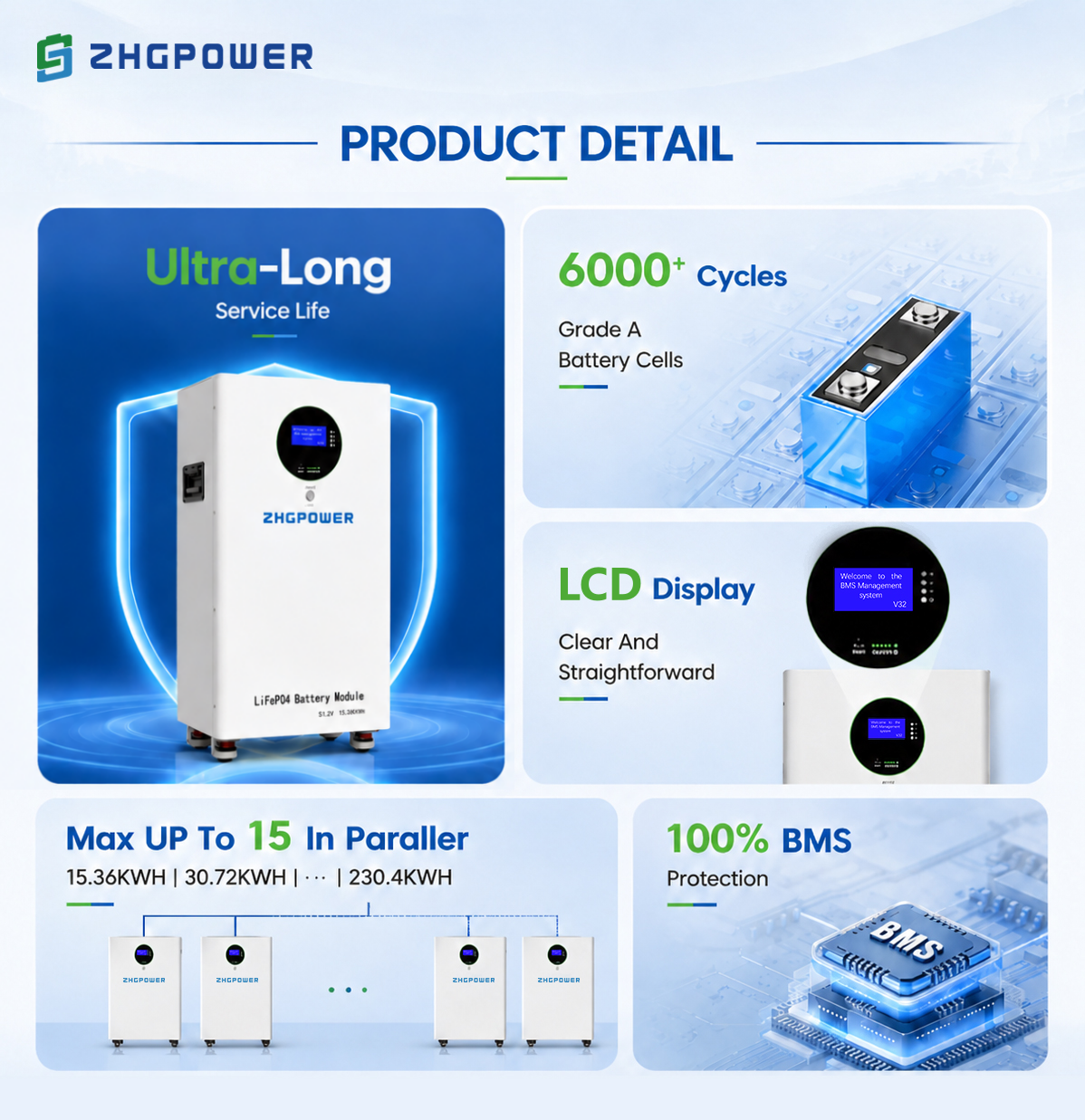

| Supports up to 15 units in parallel, expandable to 225kWh | ||
Absolutely. We use only Grade A, 100% brand-new cells. We guarantee that every battery pack meets its rated specifications. Individual cell testing reports are available upon request.

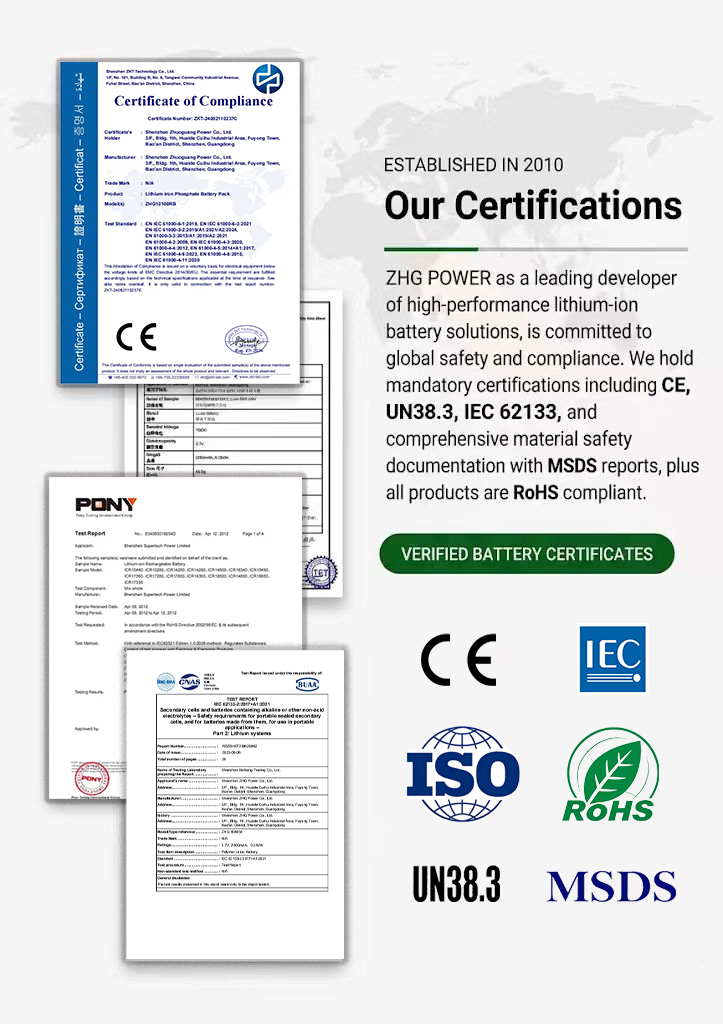

Our products comply with global safety and transport standards: Safety: CE, ROHS, FCC; Transportation: MSDS, UN38.3. Full certification documentation is provided to ensure smooth customs clearance.

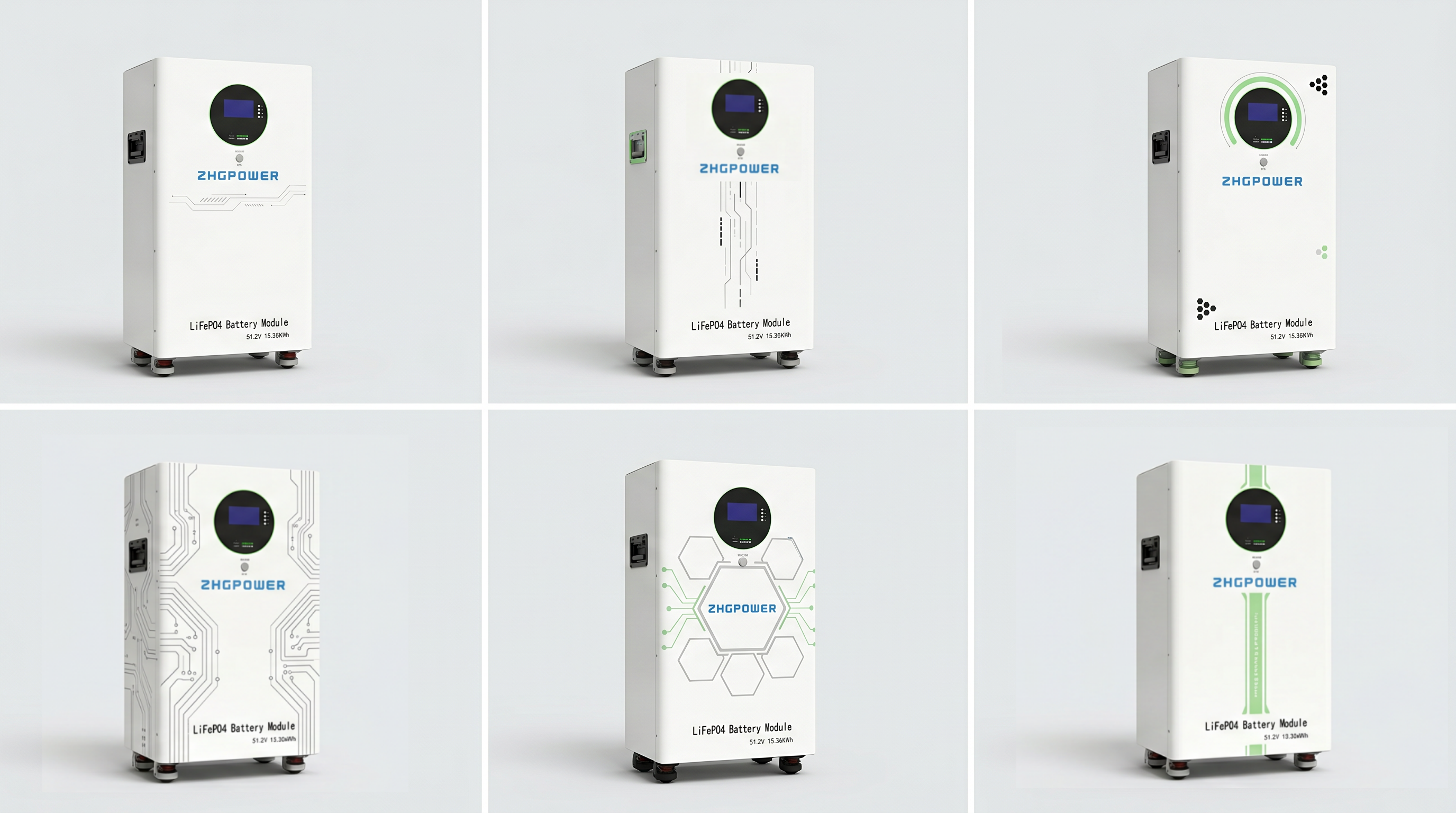

Yes! We offer comprehensive OEM/ODM services including Bluetooth/WiFi monitoring setups, custom LED/LCD displays, and specialized structural enclosures.
Yes, our advanced BMS supports over 90% of major inverter brands on the market, supporting RS485, CAN, and RS232 protocols for seamless integration.

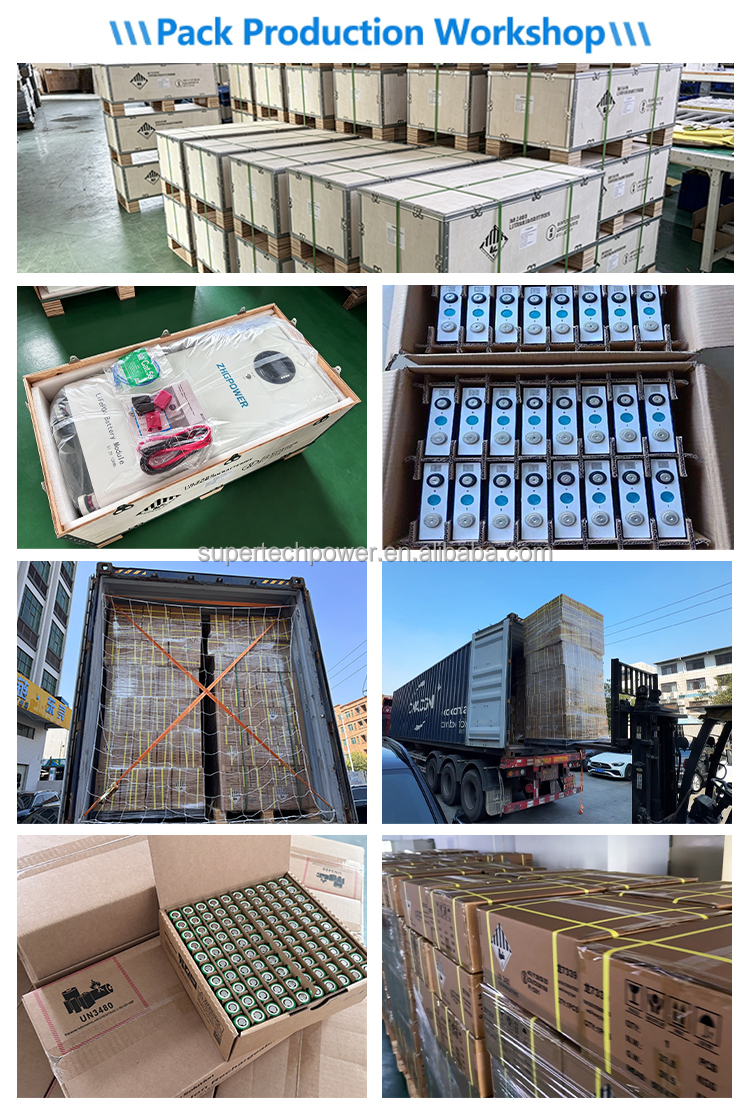

We offer flexible logistics: 3-7 days fast delivery for in-stock items; DDP (Tax Included) door-to-door service for USA, Canada, Australia, and most of Europe (approx. 40-55 days); and local shipping options from overseas warehouses for fast 3-7 day deliveries without extra tax fees.
Our standard 5-year warranty covers typical Energy Storage Systems (ESS) applications operating up to 6000 cycles at 25°C (80% DOD). For high-drain or specialized usage (e.g., EV traction), please consult us for a customized warranty plan tailored to your technical needs.
