Dealer recruitment plan
We are recruiting high-quality global distributors for power and new energy products. We offer exclusive competitive prices, one-stop premium services covering pre-sales consultation, in-sales guidance and after-sales support, and extended warranty periods beyond industry norms, plus technical training and targeted marketing resources to help you expand local markets and maximize profits. Join us for a win-win power supply market future—contact us anytime!
With 20 years of industry experience, we specialize in manufacturing large-scale power equipment and new energy products that meet national standards. We provide standardized and customized solutions for residential and industrial scenarios, and strict quality control ensures reliable product performance, laying a solid foundation for your business expansion and customer trust.

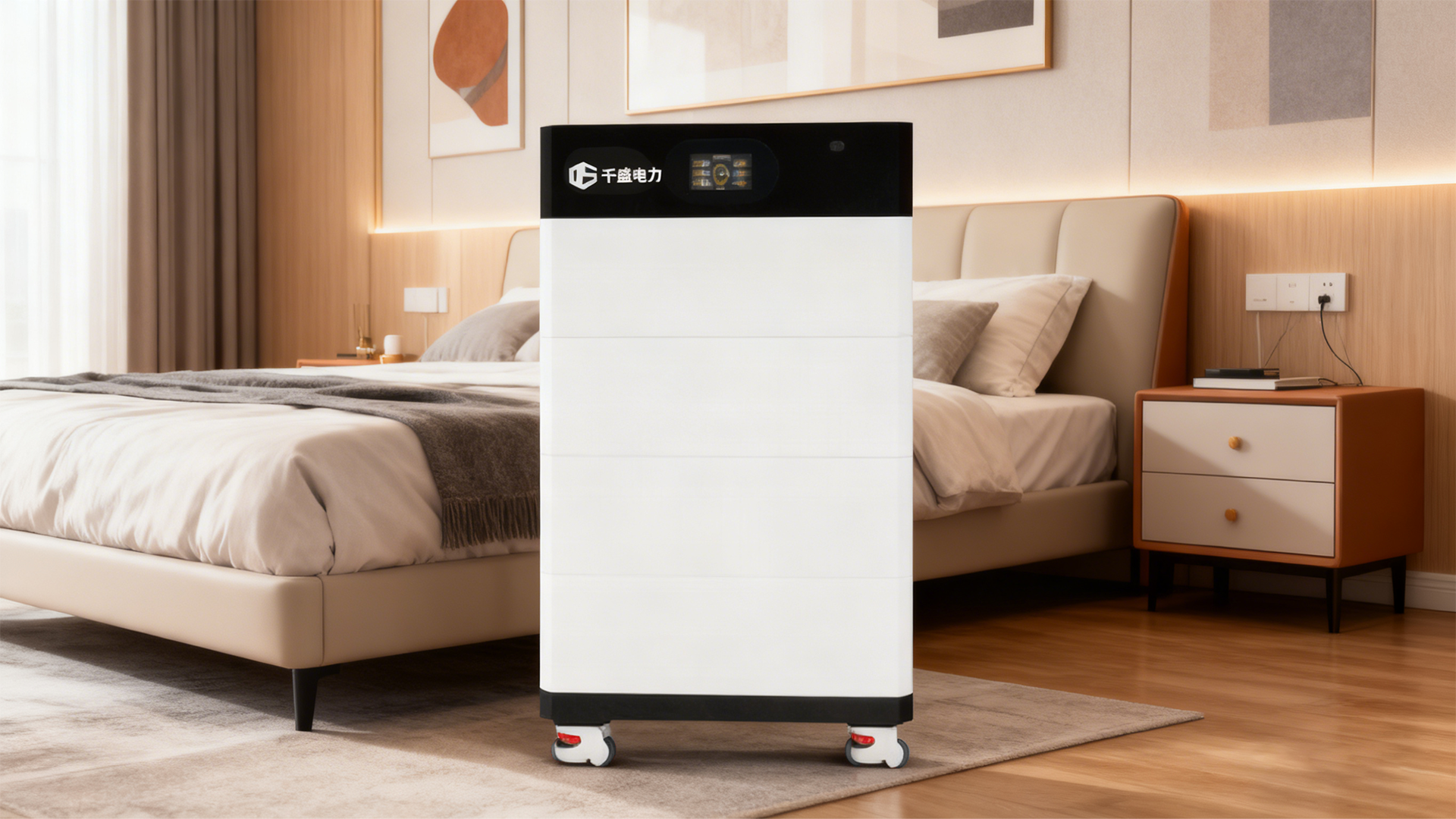

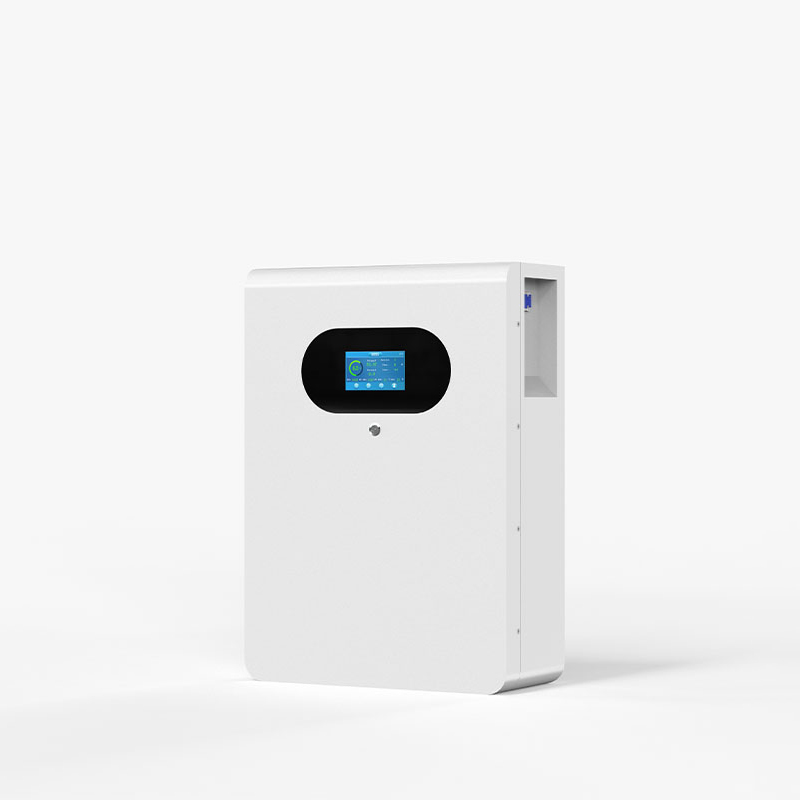

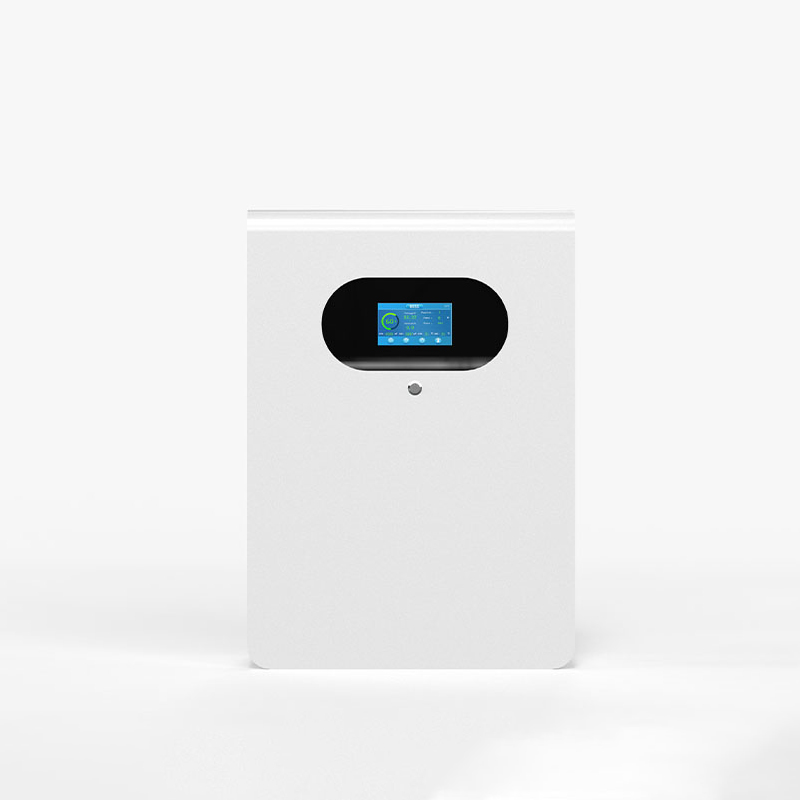

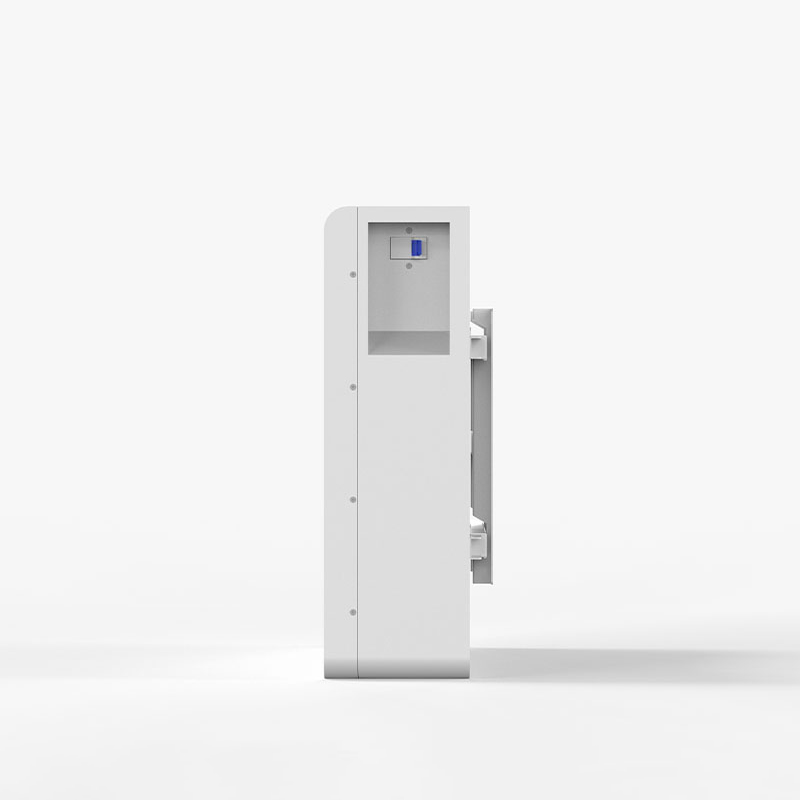

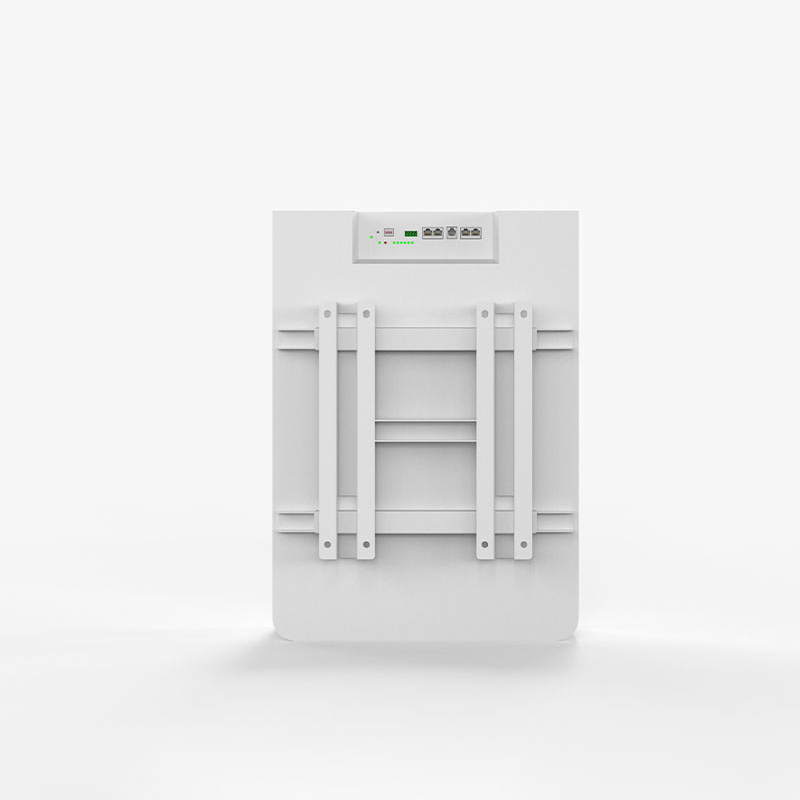

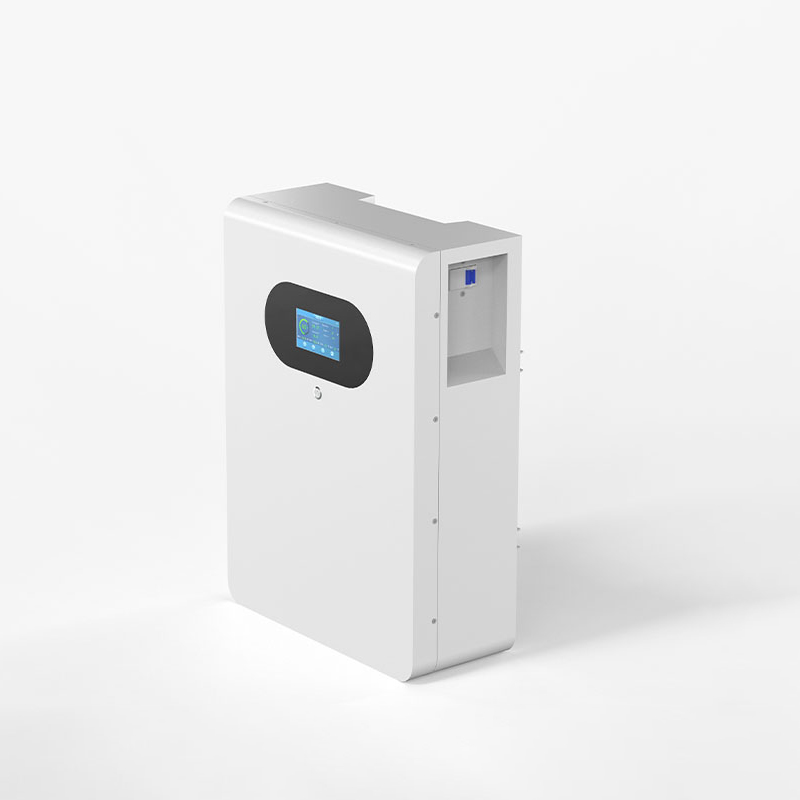

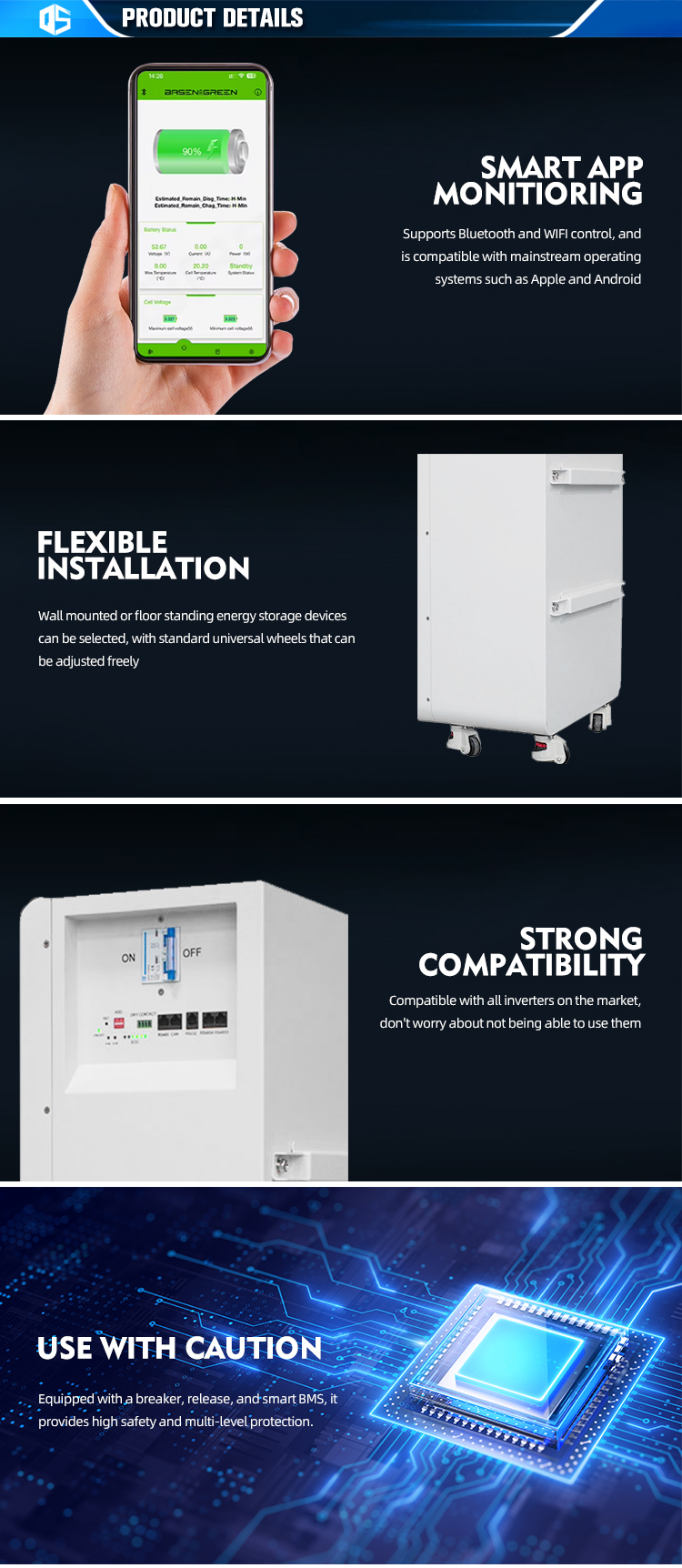

Our energy storage system supports wall-mounting and vertical stacking to adapt to diverse installation scenarios, allows parallel connection of up to 15 units for flexible capacity expansion, and is equipped with a dual-mode Bluetooth and WiFi APP that enables real-time battery status tracking—delivering comprehensive convenience from installation to usage.
Note：that the above parameters apply solely to standard versions of the product. For additional technical specifications, feel free to consult our team.
| Parameter |
Specification |
| Rated voltage |
51.2V |
| Rated capacity |
300Ah |
| Battery type |
Prismatic Battery |
| Cycle life |
6000 cycles |
| Charging cut-off voltage |
58.4V |
| Discharge cut-off voltage |
44.8V |
| Charging current |
300A |
| Discharge current |
300A |

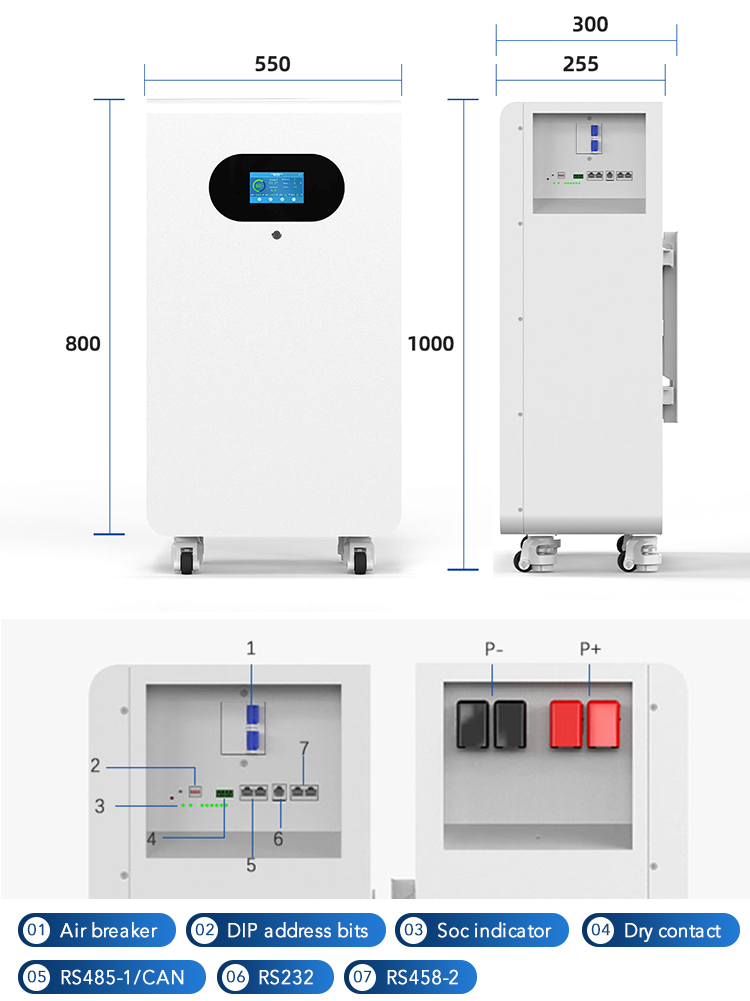

| Product dimensions |
550(L) *300(W) *1000 (H) mm |
| Weight |
75Kg |
| Charging temperature |
0-55℃ |

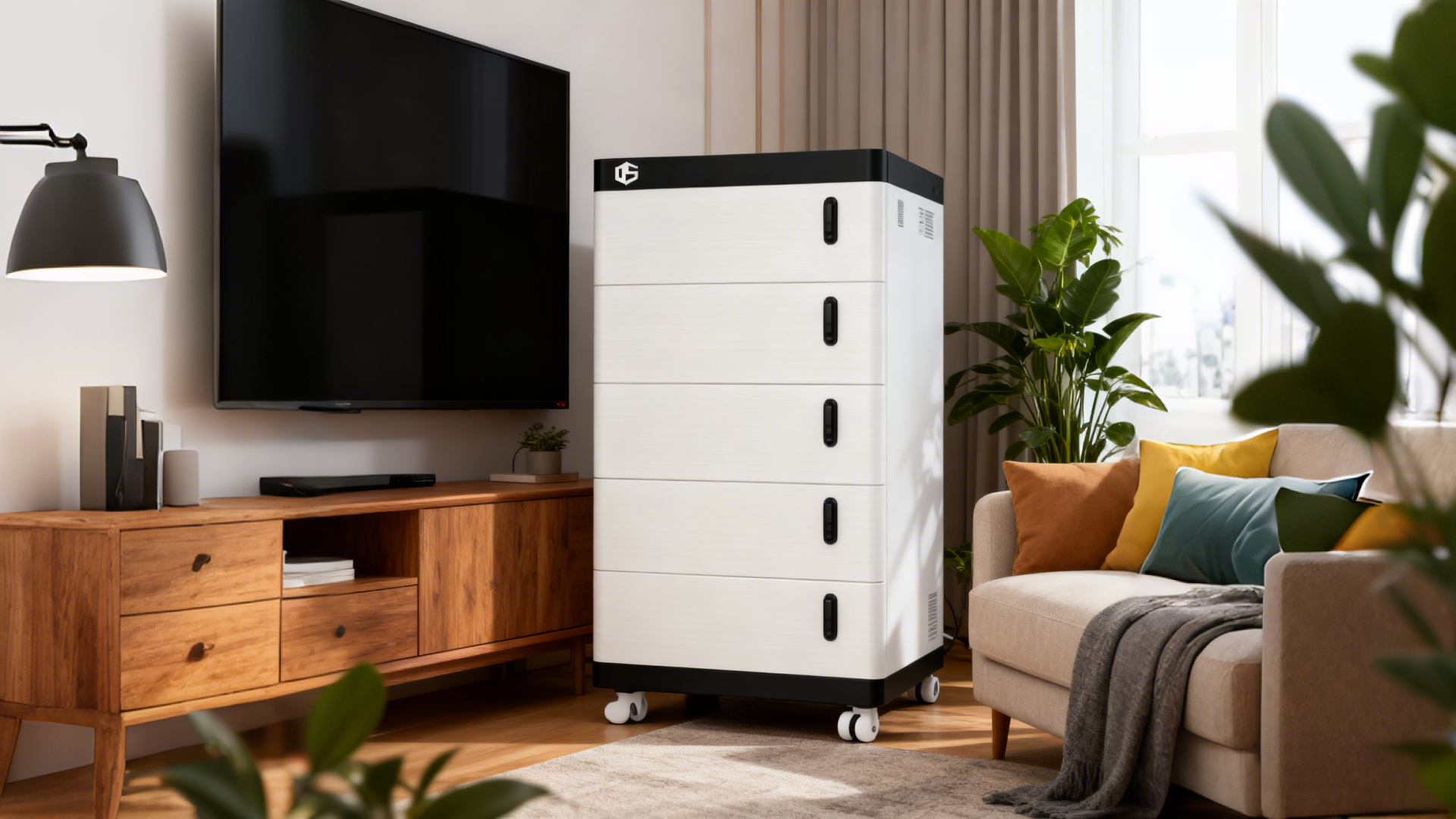

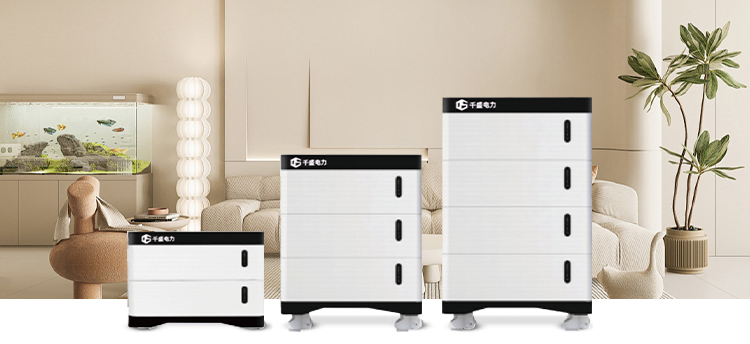

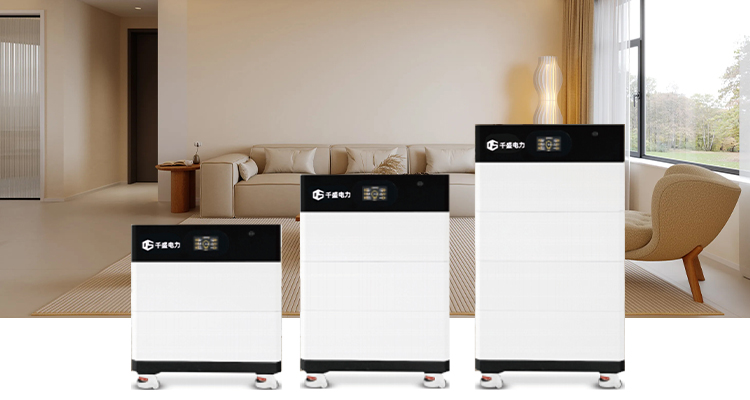

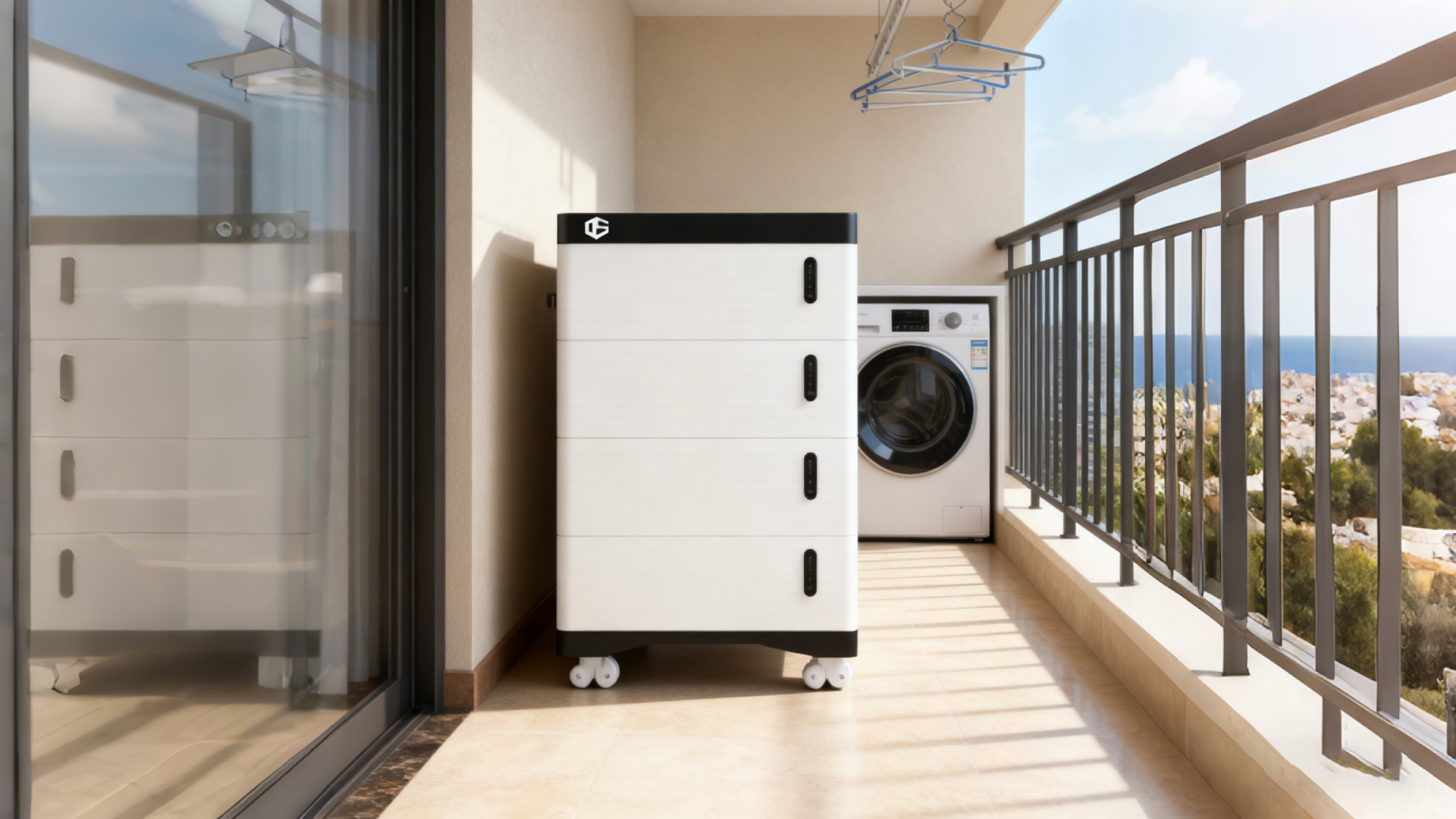

This low-voltage stackable LiFePO4 battery supports free assembly & capacity expansion (5/10/15kWh), carries IEC62619 safety certification, and works with over 20 mainstream inverters globally. With stable 51.2V specs plus RS485/CAN ports, it’s compatible with professional power devices for multiple scenarios.
| Parameter |
LV Stackable 5kWh*n(n≥8) |
LV Stackable 10kWh*n(n≥6) |
LV Stackable 14/15/16kWh*n(n≥5) |
| Battery Model |
LV Stackable 5kWh*n(n≥8) |
LV Stackable 10kWh*n(n≥6) |
LV Stackable 14/15/16kWh*n(n≥5) |
| Battery Energy |
5kWh |
10kWh |
14/15/16kWh |
| Nominal Voltage |
51.2V |
51.2V |
51.2V |
| Rated Capacity |
100Ah*n |
200Ah*n |
280/300/314Ah*n |
| End-of-Charge Voltage |
58.0V |
58.0V |
58.0V |
| End-of-Discharge Voltage |
42.0V |
42.0V |
42.0V |
| Max. Charge Current |
100A |
200A |
200A |
| Max. Discharge Current |
100A |
100A |
200A |
| Communication |
RS485/CAN |
RS485/CAN |
RS485/CAN |
| Size (mm) |
585*360*130mm |
590*500*245mm |
670*550*265mm |
| Weight (kg) |
42kg(about) |
75kg(about) |
112kg(about) |

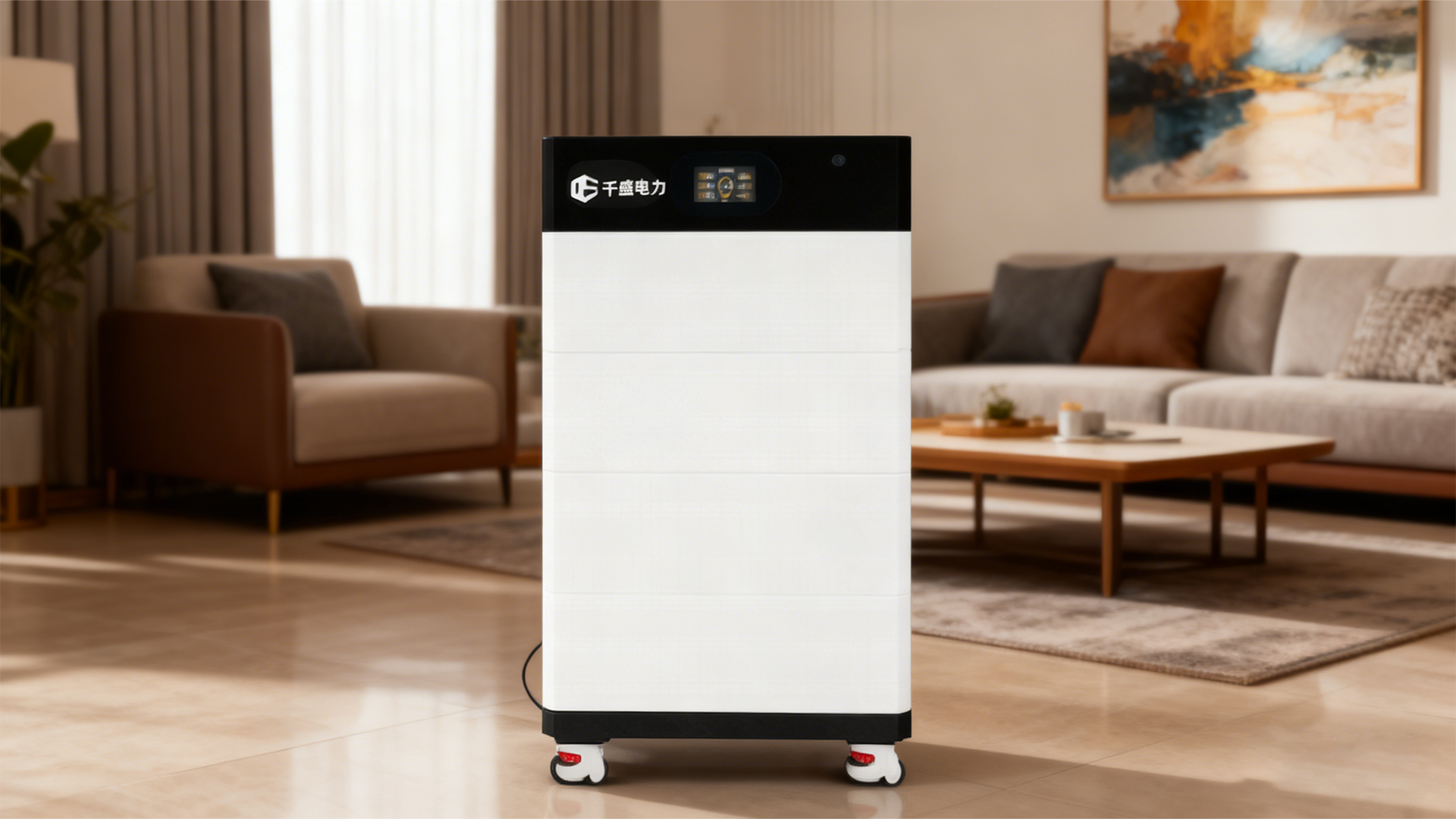

This low-voltage stackable LiFePO4 battery supports free assembly & capacity expansion (5/10/15kWh), carries IEC62619 safety certification, and works with over 20 mainstream inverters globally. With stable 51.2V specs plus RS485/CAN ports, it’s compatible with professional power devices for multiple scenarios.
| Parameter |
10kWh |
15kWh |
20kWh |
20kWh |
30kWh |
40kWh |
| Battery Model |
10kWh |
15kWh |
20kWh |
20kWh |
30kWh |
40kWh |
| Battery Energy |
10kWh |
15kWh |
20kWh |
20kWh |
30kWh |
40kWh |
| Nominal Voltage |
204V |
307V |
409V |
204V |
307V |
409V |
| Rated Capacity |
50Ah |
50Ah |
50Ah |
100Ah |
100Ah |
100Ah |
| End-of-Charge Voltage |
233.0V |
350.0V |
467.0V |
233.0V |
350.0V |
467.0V |
| End-of-Discharge Voltage |
166.0V |
250.0V |
335.0V |
166.0V |
250.0V |
335.0V |
| Max. Charge Current |
25A |
25A |
25A |
50A |
50A |
50A |
| Max. Discharge Current |
50A |
50A |
50A |
100A |
100A |
100A |
| Communication |
RS485/CAN |
RS485/CAN |
RS485/CAN |
RS485/CAN |
RS485/CAN |
RS485/CAN |
| Size (mm) |
585*360*535mm |
585*360*690mm |
585*360*845mm |
585*360*535mm |
585*360*690mm |
585*360*845mm |
| Weight (kg) |
100kg(about) |
140kg(about) |
182kg(about) |
182kg(about) |
224kg(about) |
266kg(about) |

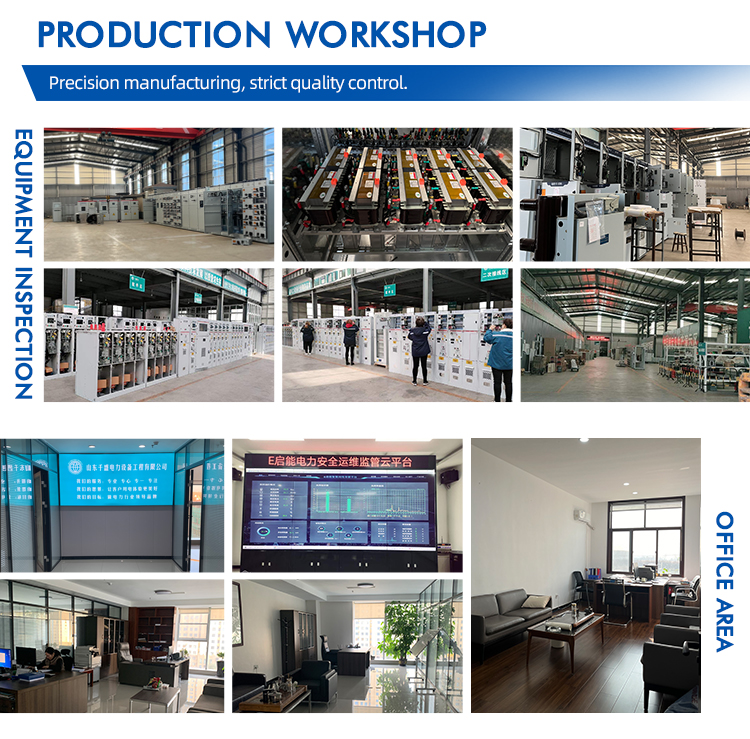

Production process
The full process automation, refined production control, and multi-dimensional rigorous quality inspection system have laid a solid foundation for stable and sustainable power generation performance in every link from raw material processing to finished product delivery.

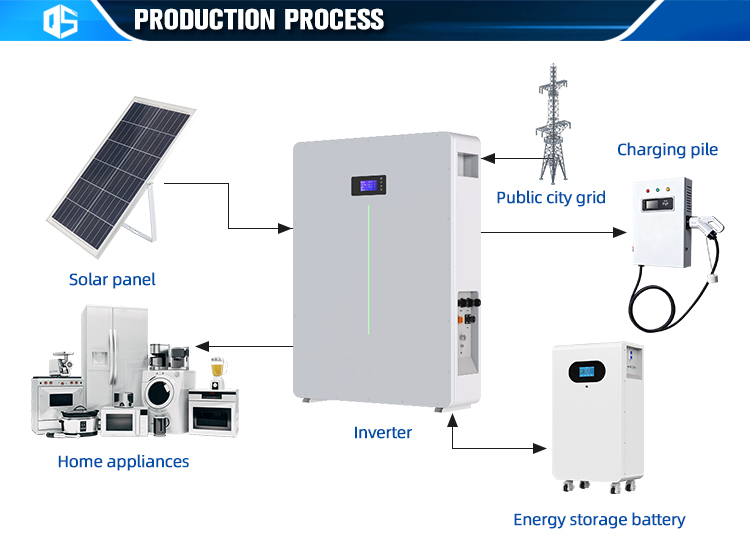

Our home energy storage system is perfectly tailored to diverse household energy scenarios—whether it’s for stable daily household power supply, emergency backup during unexpected outages, or energy-saving cost reduction via time-of-use electricity tariff arbitrage. Backed by strict end-to-end quality control, we deliver a complete green energy cycle for household users, covering everything from photovoltaic energy harvesting to stored energy supply, making household energy use more reliable, cost-effective, and eco-friendly.

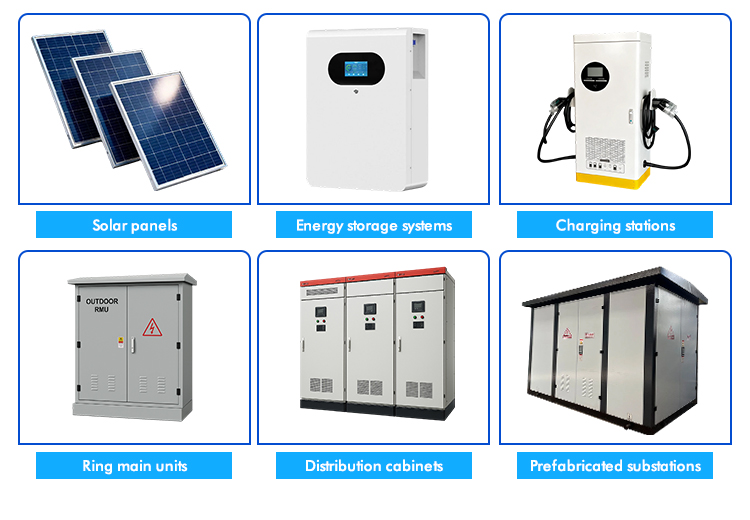

We are a professional enterprise engaged in the manufacturing and construction of large-scale power equipment and new energy power. For the past 20 years, we have focused on a series of power products such as ring main units, distribution cabinets, transformers, photovoltaic panels, energy storage, inverters, etc.
Equipped with robust packaging solutions and streamlined logistics networks, we ensure safe, damage-free delivery of products to every destination, backed by reliable tracking and timely transportation services.

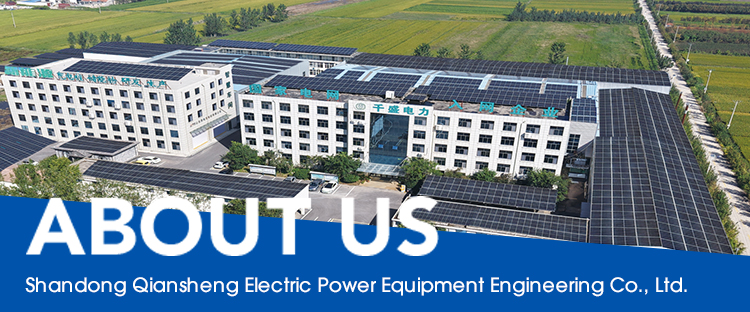

ABOUT US
Welcome. With 20 years of industry focus, we are a professional enterprise engaged in large-scale power equipment manufacturing and new energy power project construction, offering a full range of products including ring main units, distribution cabinets, transformers, photovoltaic panels, energy storage systems and inverters.
Our production lines integrate advanced technology and exquisite craftsmanship to ensure all products comply with national electricity standards. We provide comprehensive standardized and customized solutions to meet the specific power needs of both residential and commercial facilities.
Reliability is our core. We use high-quality raw materials, implement strict quality inspections and optimize production efficiency to guarantee on-time delivery. Beyond products, we act as your trusted partner—listening to your demands, solving challenges and growing alongside your business.
Join our numerous loyal customers and trust our power system and new energy supporting product needs.
Every interaction is a testament to mutual trust, collaborative potential, and shared success in the power and new energy field.
Frequently Asked Questions
Q
Are you a factory or a trading company?
We are a professional manufacturer of ring main units, distribution cabinets, transformers, photovoltaic panels, energy storage, inverters and other series of power equipment and new energy products in China.
Q
How can we guarantee the products quality?
We always provide esteemed buyers with a pre-production sample before mass production; we also conduct strict testing on every product prior to shipment dispatch.
Q
What products we can supply you?
We can supply a full range of power and new energy products including ring main units, distribution cabinets, transformers, photovoltaic panels, energy storage, inverters and more.
Q
Where is your manufacturer located? How can I visit there?
Our factory is located in China. You can contact our sales team in advance to arrange a visit.
Q
Can the products pricing be cheaper?
Of course, we can offer you a very favorable discount for large-quantity orders.
Q
Can print our company‘s logo on the products?
Yes! We also accept OEM & ODM orders for all our power and new energy products.
