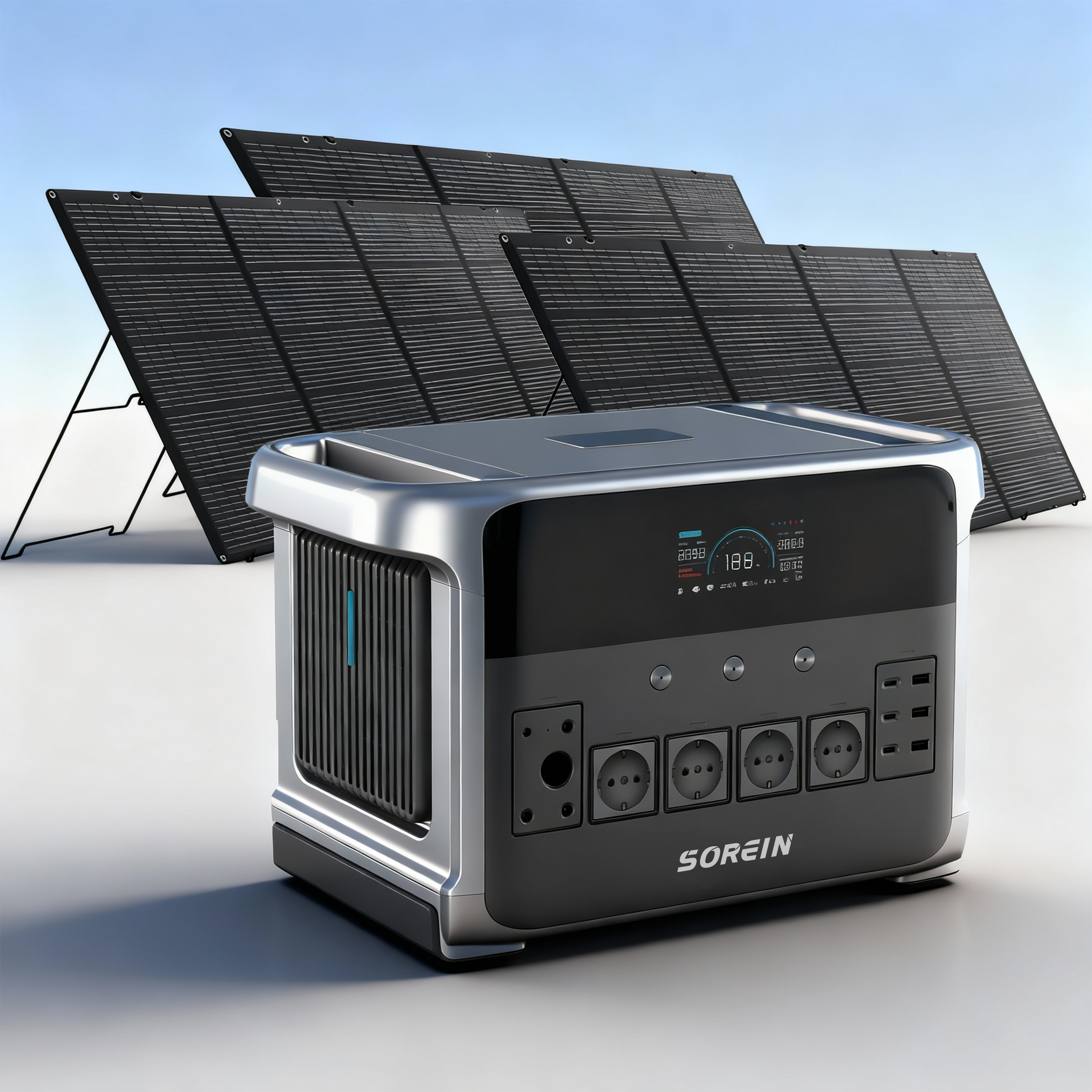

Volt Power
1 / 5

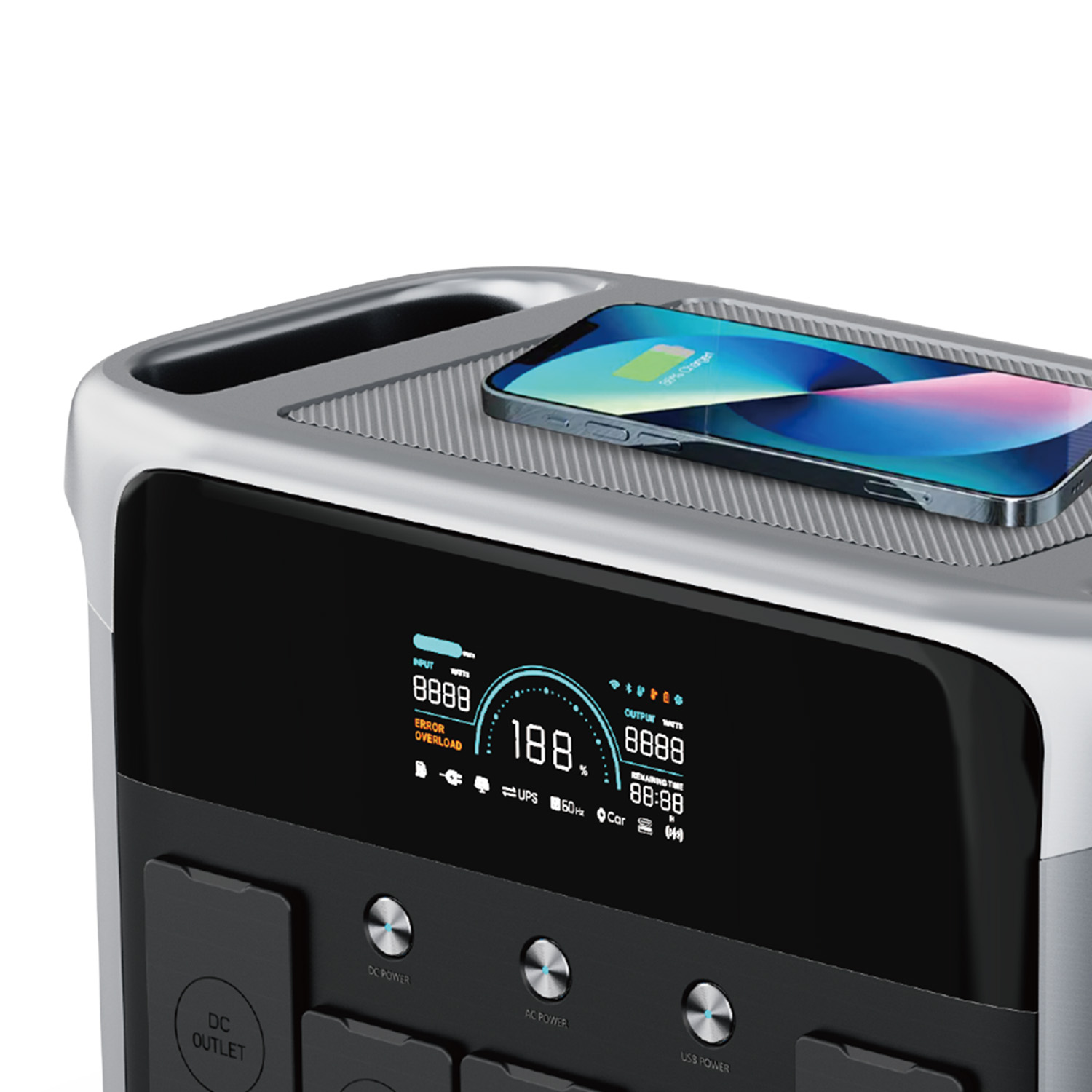

Need cellphone has wireless charging function itself

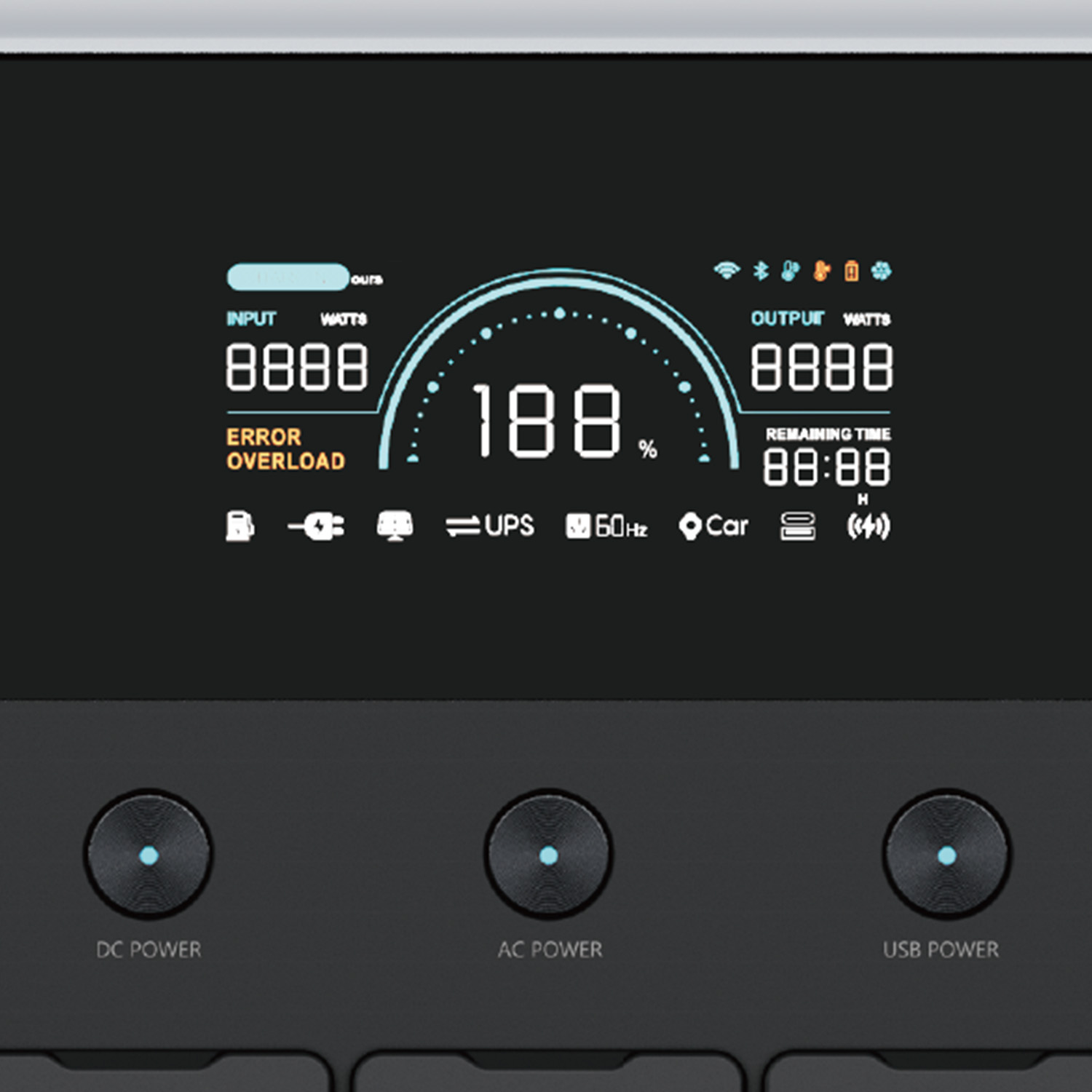

clearly display port
charge gas formation, lighter desig

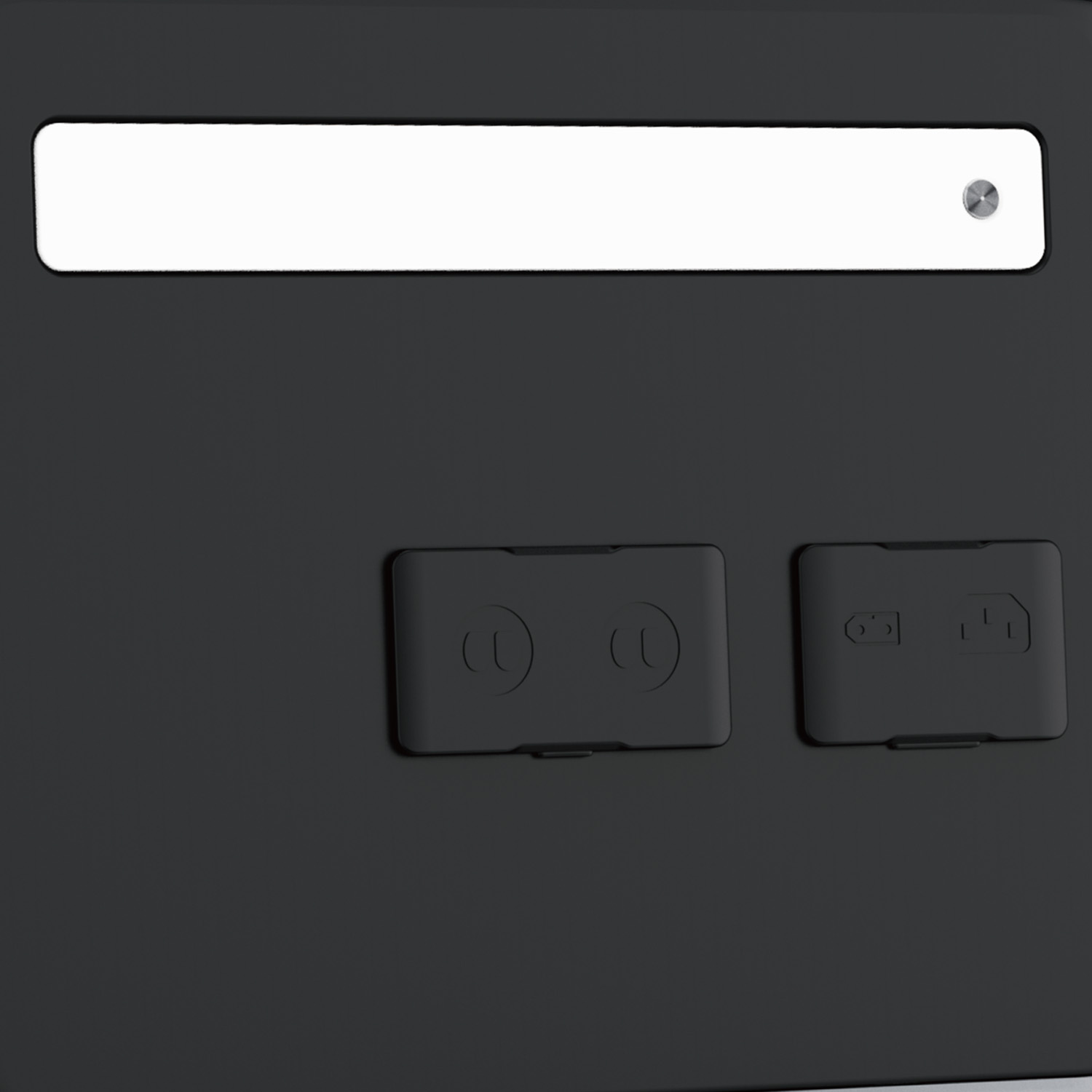

Four models: high brightnesswhite lightwarm light/sos

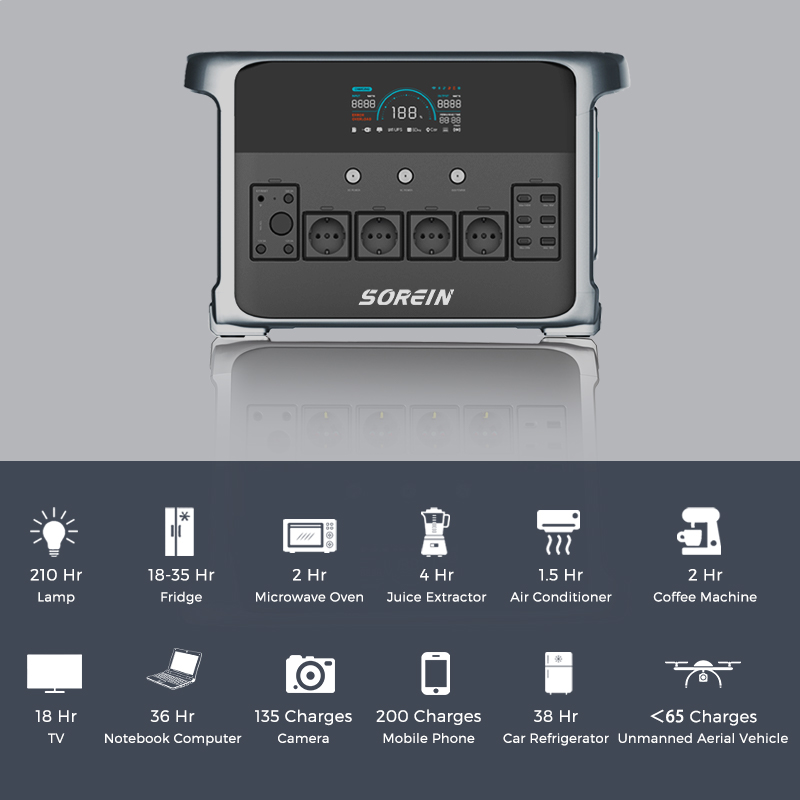

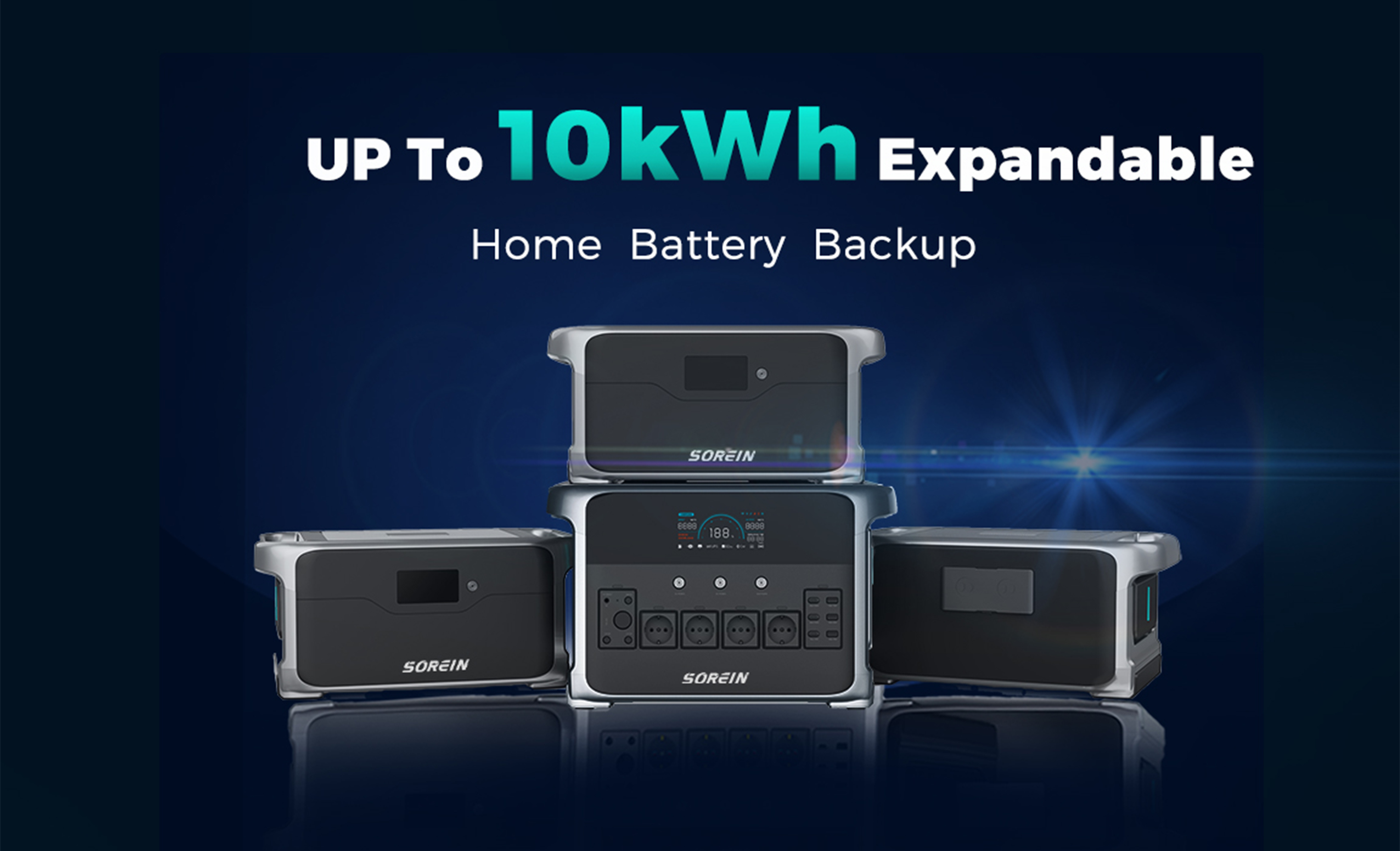

Home emergency backup power supply,outdoor travel,emergency disaster relief,field work and other applications
| General Info | |
| Model | H1003 |
| Region/Country | US/CA/EU/UK/FR/AU/CN/KR/ZA |
| Net Weight | 25Kg |
| Product Dimension (H × L × W) | 480×285×300mm |

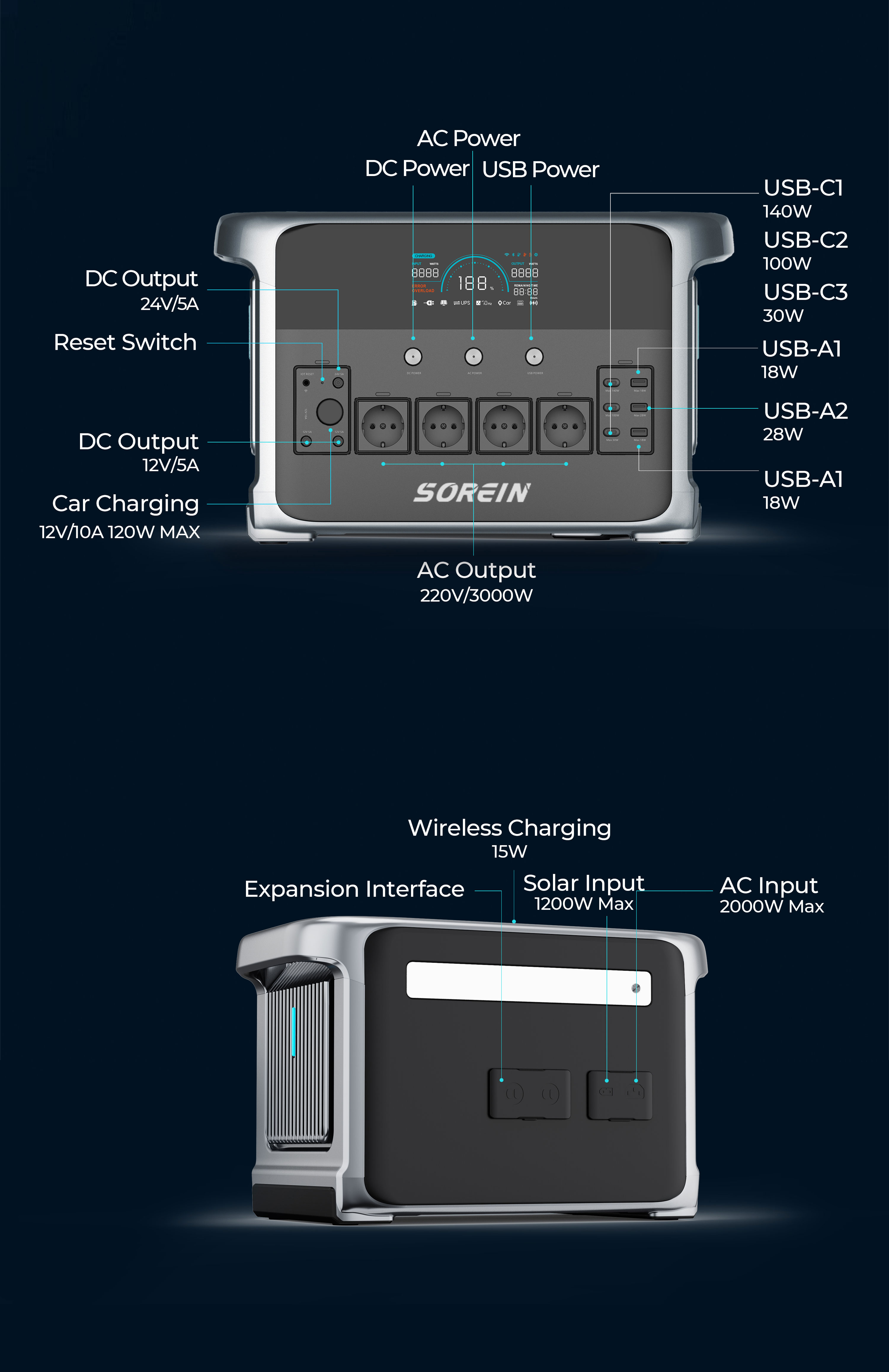

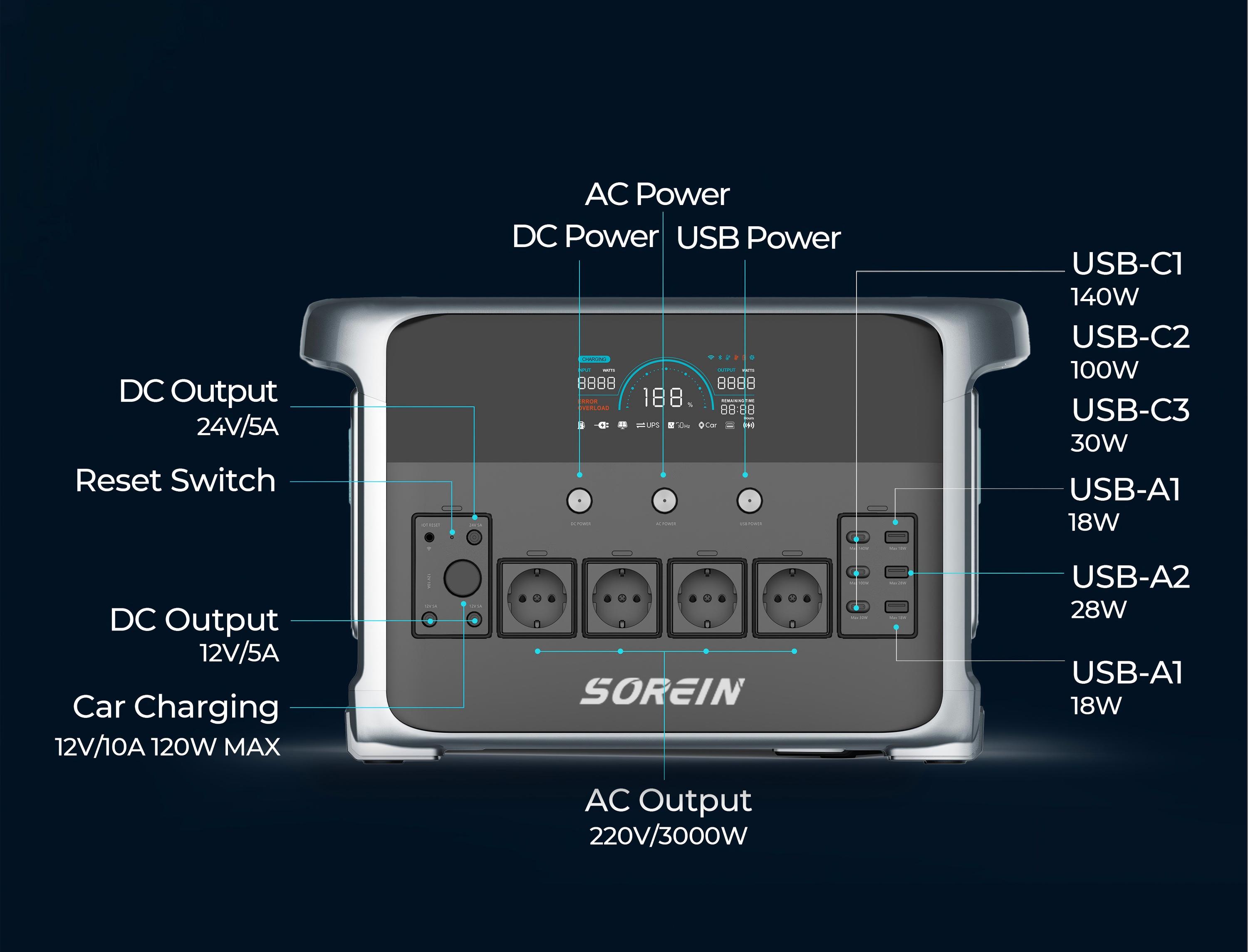

| Output Ports | |
| AC Output x4 (Pure sine wave) | 110V~240V 50Hz/60Hz 3000W Max / 120V~60Hz 2400w Max |
| USB-A(x3) | 5V/3A, 9V/3A, 12V/2A, 28W Max / 5V/3A, 9V/2A, 12V/1.5A, 18W Max |
| USB-C (×3) | 5V/3A,9V/3A,12V/2A,15V/3A 20V/5A, 28V/5A 140W Max / 5V/3A,9V/3A,12V/2A, 15V/3A,20V/5A,100w Max / 5V/3A,9V/3A,12V/2.5A, 30W Max |
| Cigarette Lighter(x1) | 12V 10A, 120W Max |
| DC5521 Output (×2) | One Port 12V/5A (Cigarette Lighter Port+DC5521x2 output 120w Max) |
| DC5525 Output(x1) | 24V/5A,120W Max |
| Total Output (x1) | 3000W Max |

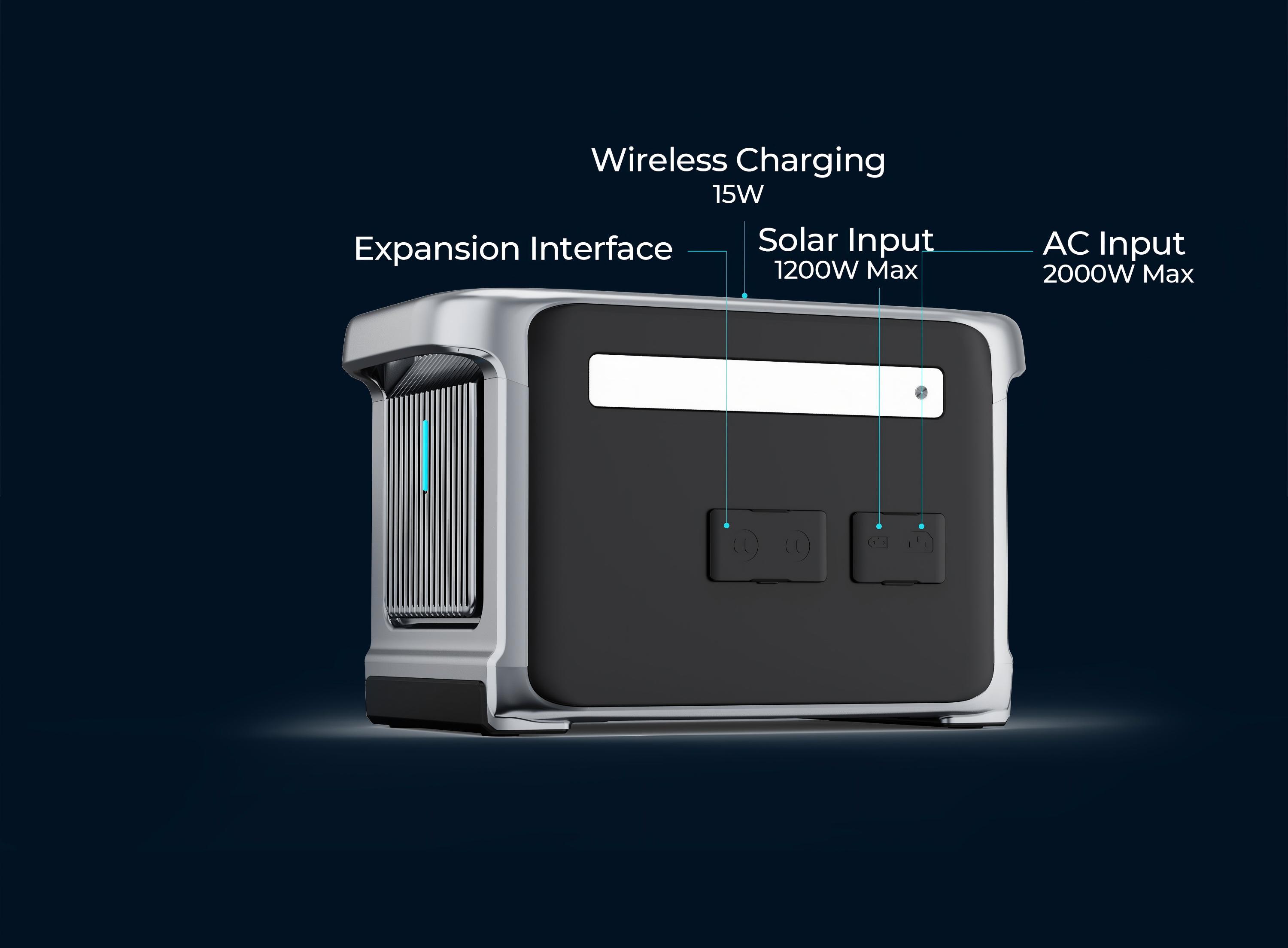

| Input Ports | |

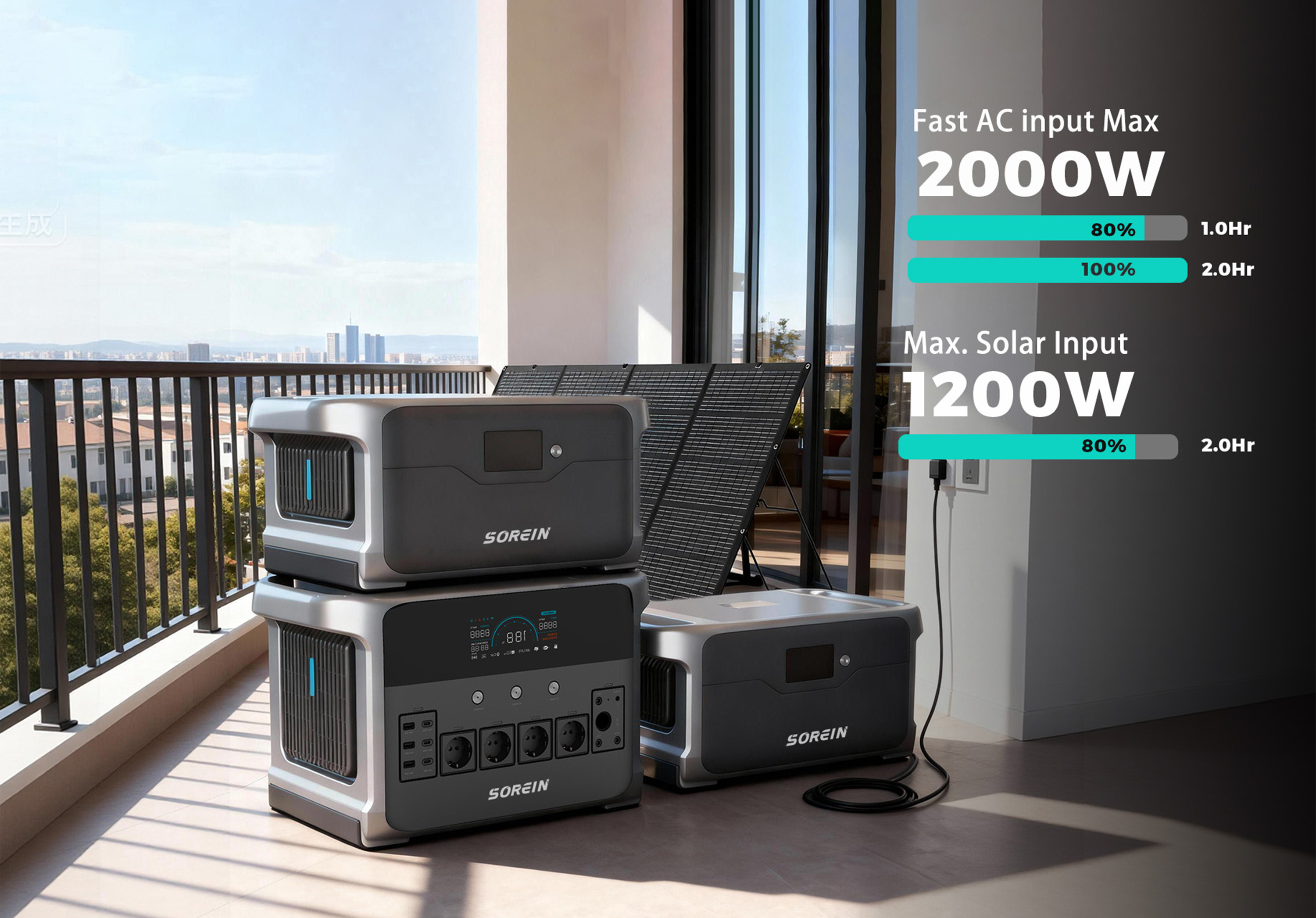

| AC Charging (x2) | 100-130V 60Hz, 2000W Max |
| MTTP Charging | 12-70V 25A Max, 1200W Max |
| Cigarette Lighter | 12/24 V 8.5A Max |
| Battery Info | |

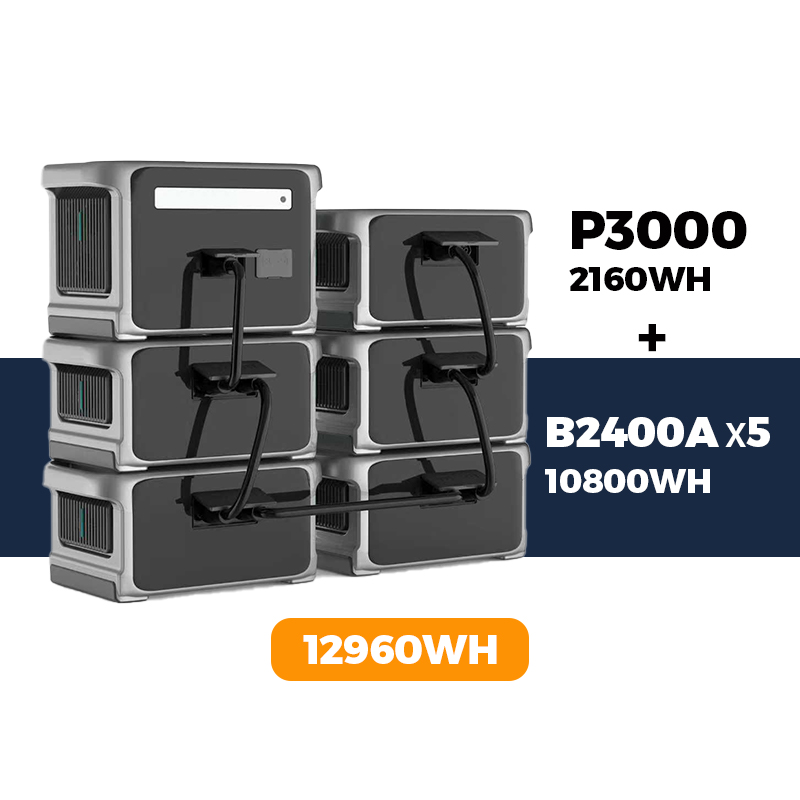

| Battery Capacity | 2160Wh, 45Ah,48V |
| Cell Chemistry | LFP |
| Cycle Life | 3,500 cycles to 80% capacity |
| Operating Temperature | |
| Optimal Operating Temperature | 20°C~30°C (68°F ~ 86°F) |
| Discharging Temperature | -20°C~45°C (-4°F ~ 113°F) *In environments below 0°C, the discharge efficiency decreases, so we recommend using the smart heating module (optional). |
| Charging Temperature | 0°C~45°C (32°F ~ 113°F) |
| Storage Temperature | 0°C~45°C (32°F ~ 113°F) |
