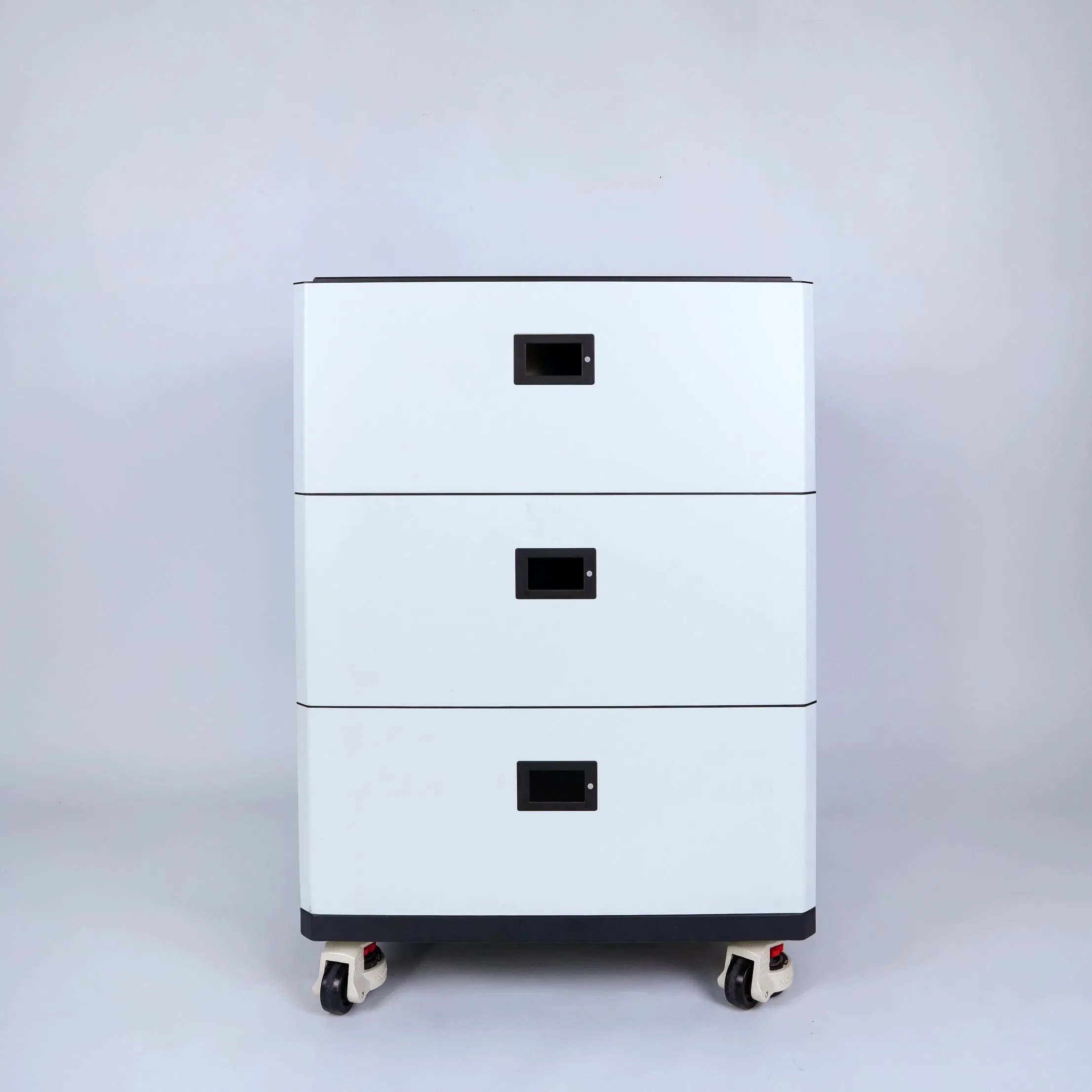

| Battery Parameters | |
|---|---|
| Battery Rated Storage Capacity | 14336WH |
| Battery Type | Lithium Iron Phosphate Battery (LFP) |
| Series-Parallel Configuration | 1P*16S |
| Overcharge / Overdischarge | 58.4V / 44.8V |
| Float Charge / Cut-off Voltage | 57.6V / 43.2V |
| Maximum Charge/Discharge Current | 100A |
| Internal Resistance | ≤ 0.25 mΩ |
| Cycle Life (at 25℃) | ≥6000 Cycles |
| Operating Temperature (Discharge) | -30 to 60℃ |
| Operating Temperature (Charge) | 0 to 60℃ |
| Protection Rating | IP54 |

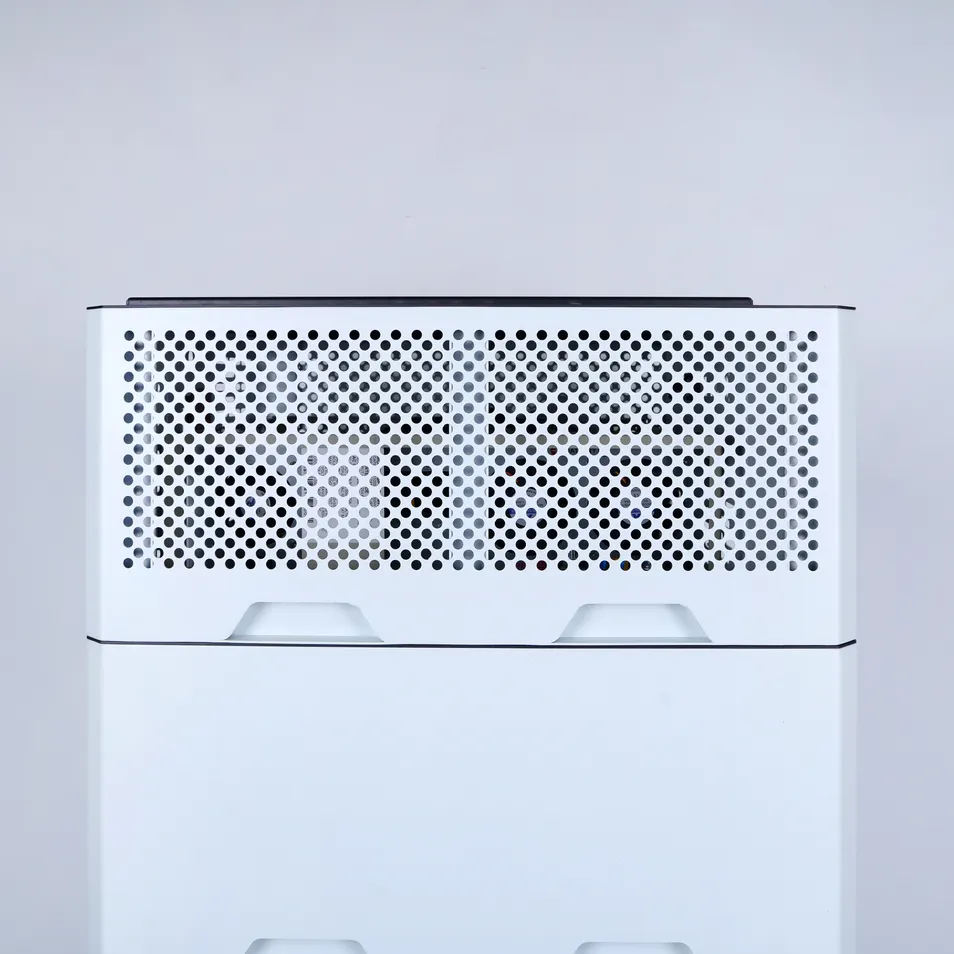

| Inverter Parameters | |
|---|---|
| Rated Output Power | 11000W |
| Input Voltage Range | 90–280 VAC ±3 V |
| Output Waveform | Pure Sine Wave |
| Peak Power | 22000VA |
| Switching Time | 10ms (Computer) / 20ms (Appliances) |
| Maximum Conversion Efficiency | 98% |
| Grid Feed-in Voltage Range | 195-253VA |
