| 5KWh/10KWh/15KWh floor type battery data sheet | |||
|---|---|---|---|
| Module type | 48V/51.2V/5KWH | 48V/51.2V/10KWH | 48V/51.2V/15KWH |
| Rated Capacity | 100Ah | 200Ah | 300Ah |
| Minimum Capacity | ≥99.5Ah | ≥198.5Ah | ≥299.5Ah |
| Energy | 5.12KWh | 10.24KWh | 15.36KWh |
| Nominal Voltage | 48V/51.2V | 48V/51.2V | 48V/51.2V |
| Open Voltage | 48V~52V | 48V~52V | 48V~52V |
| Load Voltage | ≥48V | ≥48V | ≥48V |
| Internal Impedance | ≤80mΩ | ≤80mΩ | ≤80mΩ |
| Charge voltage | 58.4V | 58.4V | 58.4V |
| Standard charge current | 50A | 100A | 100A |
| Max charge current | 100A | 200A | 200A |
| Standard discharge current | 100A | 200A | 200A |
| Max discharge current | 100A (continuous) | 200A (continuous) | 200A (continuous) |
| Discharge cut-off voltage | 43.2V | 43.2V | 43.2V |
| Operating Temperature (charge) | 0°C~+60°C | 0°C~+60°C | 0°C~+60°C |
| Operating Temperature (discharge) | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Weight | About 47.5kg | About 99.5kg | About 133kg |

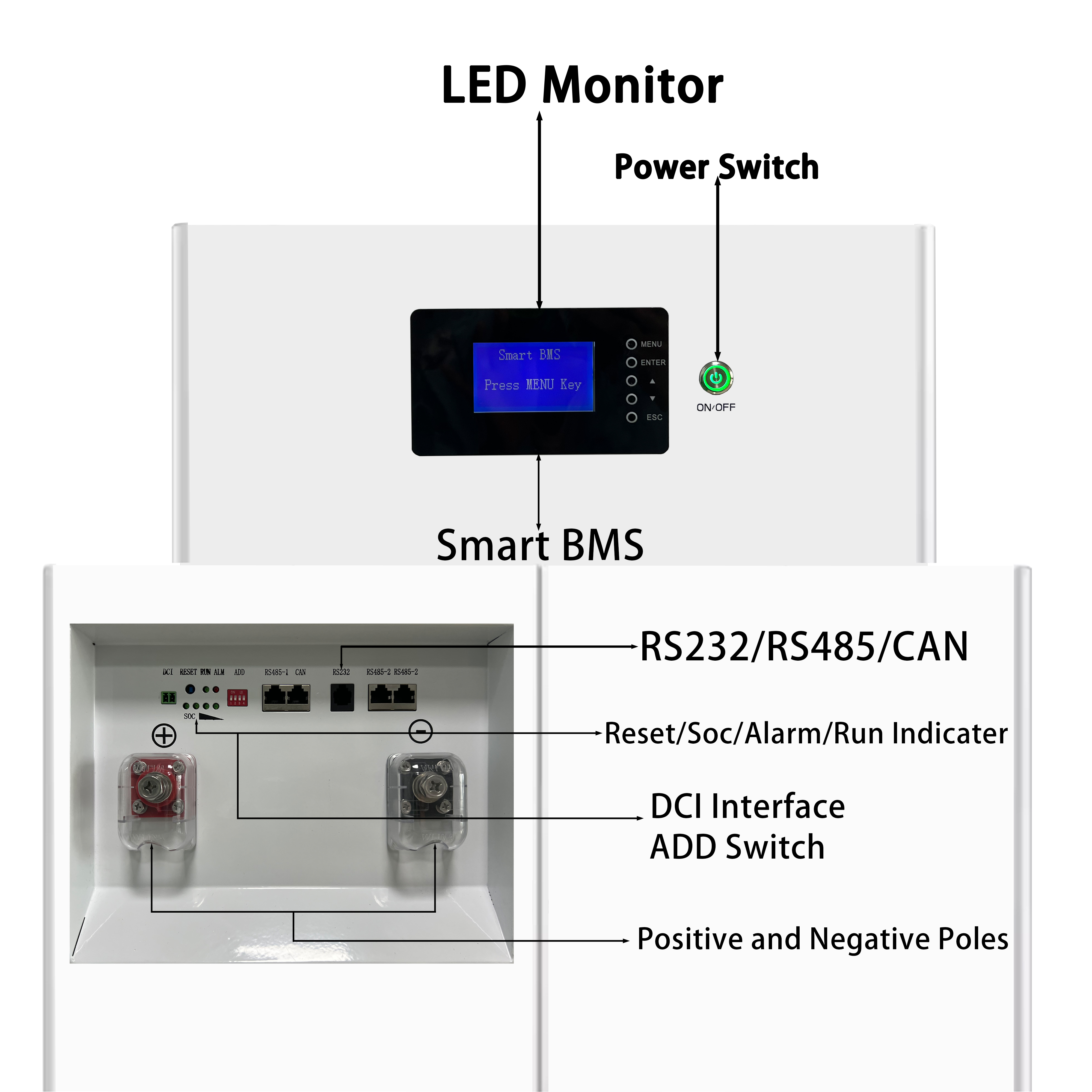

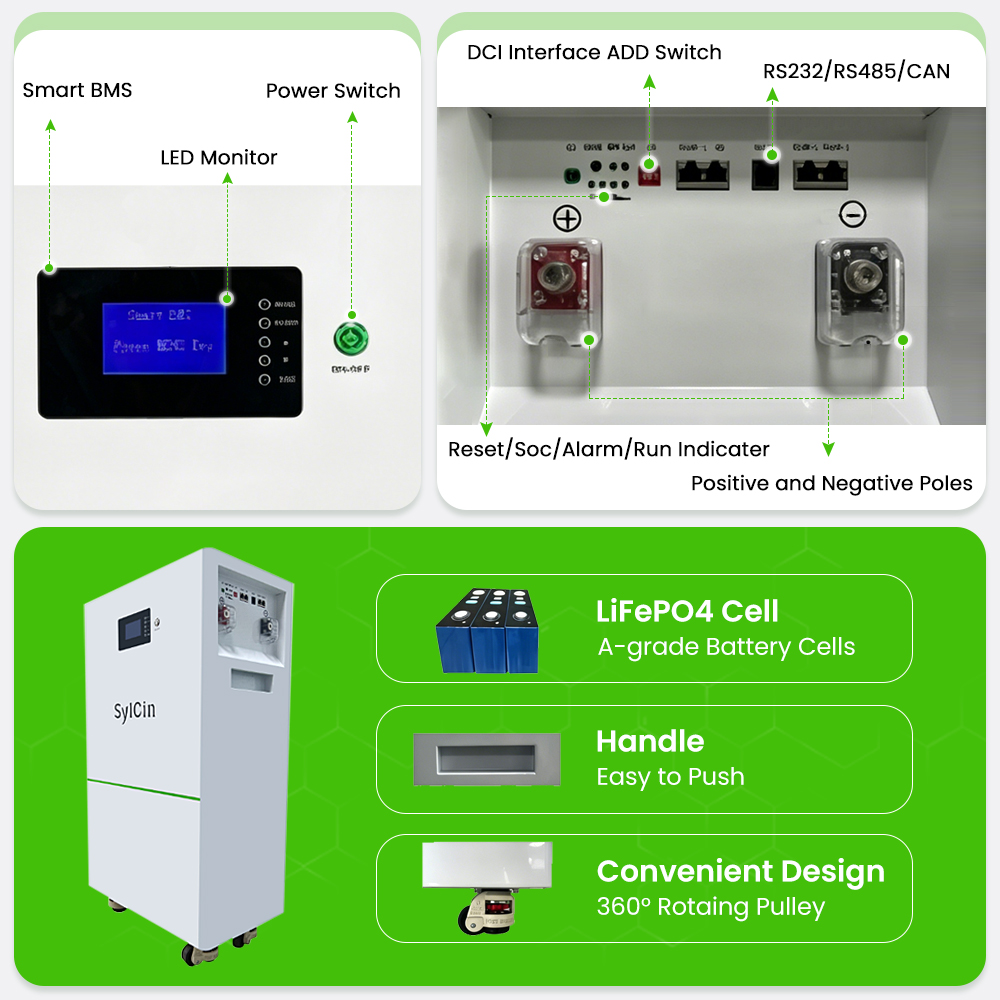

| Communication | CAN/RS485/RS232/Dry contact interface | CAN/RS485/RS232/Dry contact interface | CAN/RS485/RS232/Dry contact interface |
| Series-Parallel Connection | 15 battery modules connected in parallel | 15 battery modules connected in parallel | 15 battery modules connected in parallel |
| Size | L=650±2, W=428±3, H=210±2mm | L=880±2, W=530±3, H=250±2mm | L=945±2, W=530±3, H=299±2mm |
