Mainstream size for easy installation and convenient maintenance.
Low self-discharge rate, supports aerosol fire extinguishing for enhanced protection.
Offers over-charge, over-discharge, over-current, and temperature protection with automatic cell balancing.
Stable performance from -20°C to 50°C, ensuring reliable operation in diverse climates.
Supports parallel connection of up to 5 clusters for capacity and power expansion.
Maximizes space utilization and reduces system cost for higher overall efficiency.
| Model | SKTESS241 |
| Battery Type | LiFePO4 |

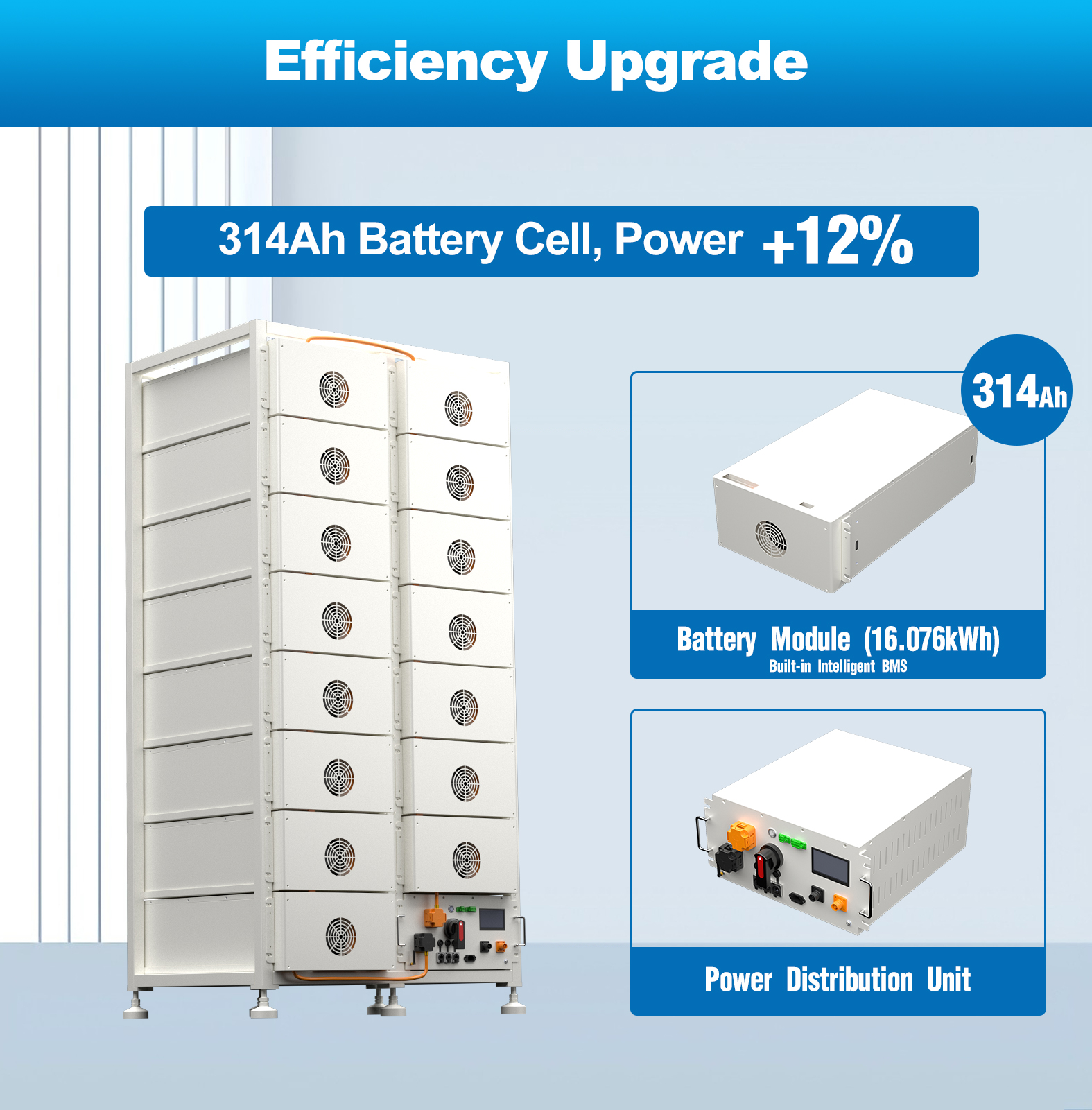

| Battery Capacity | 314Ah |
| Pack Configuration | 1P16S*15 |
| Nominal Capacity | 241.152kWh |
| Nominal Voltage | 768V |
| Operating Voltage Range | 672~852V |
| Max.Continuous Charge/ Discharge Current | 157A |
| Charge/Discharge Rate | 0.5C |
| Ingress Protection | IP20 |
| Anti-Corrosion Grade | C3 (C4 Optional) |
| Cycle Life | Cycle Life ≥6000 /5 Years (@25°C ±2°C,0.5C /0.5C,70% EOL) |
| Charge Operating Temperature | 0°C~45°C |
| Discharge Operating Temperature | -20°C~50°C |
| Operating Temperature Range | -20°C~50°C |
| Relative Humidity | 5~95 %(non-condensing ) |
| Communication | CAN/RS485 |
| Cooling | FAN |
| Dimension | 1032 × 800 × (2142±0.5)mm |
| Weight | ≤1800kg |
| Max. Parallel | 5 |
A1: The system utilizes high-safety LiFePO4 (Lithium Iron Phosphate) cells. These cells feature a low self-discharge rate and support aerosol fire extinguishing to ensure enhanced safety and protection.
A2: The system has a nominal capacity of 241.152kWh, a battery capacity of 314Ah, and utilizes a 1P16S*15 pack configuration at a nominal voltage of 768V.
A3: Yes, the battery system features flexible scalability. It supports parallel connection of up to 5 clusters, allowing you to scale both capacity and power output as needed.
A4: The integrated intelligent Battery Management System (BMS) provides comprehensive safety features, including over-charge, over-discharge, over-current, and temperature protection, alongside automatic cell balancing.
A5: Yes, the system has wide temperature adaptability. It supports a stable discharging temperature range of -20°C to 50°C and a charging temperature range of 0°C to 45°C, ensuring reliable operation across diverse climates.
A6: The system supports CAN and RS485 communication protocols for robust connectivity and relies on an efficient fan (FAN) cooling system for thermal management.
