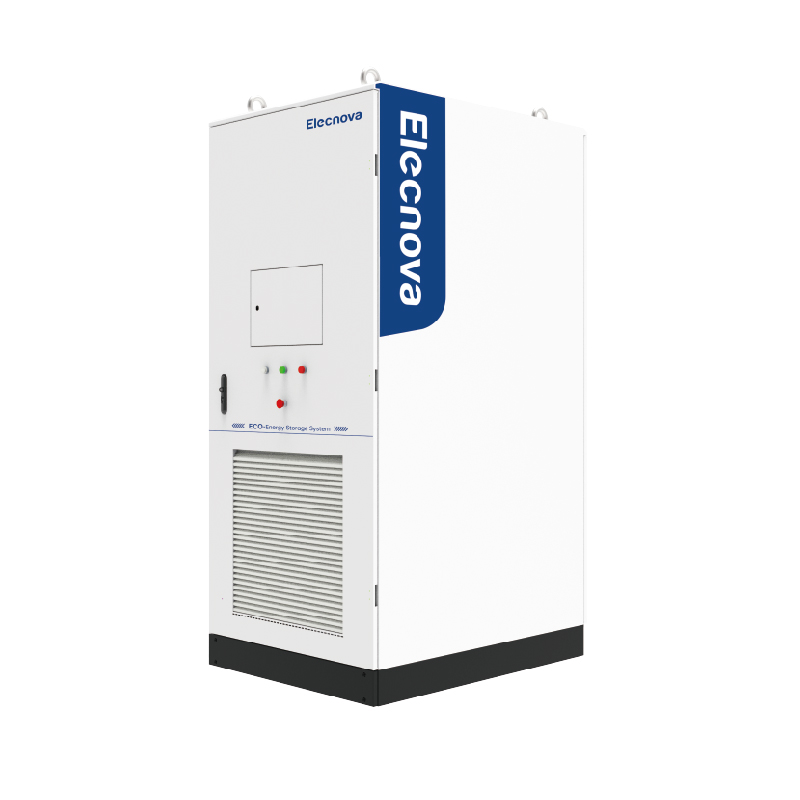

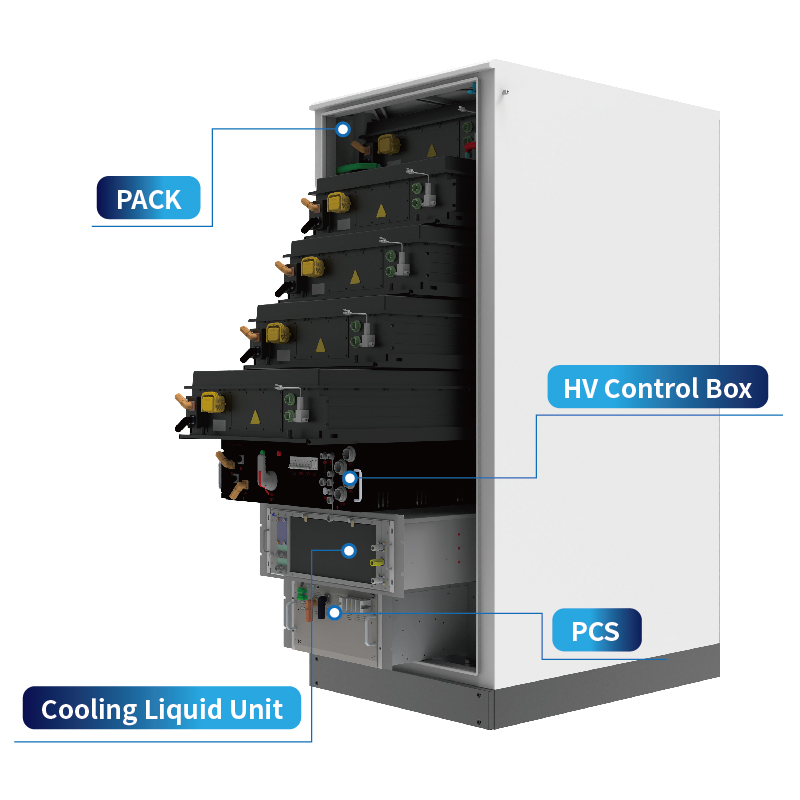

All in One Energy Storage System 100kW 233kWh Storage Home Commercial Solar Energy Storage System Battery with Smart BMS

Product Description

All-in-one liquid-cooled ESS cabinet
Product Description

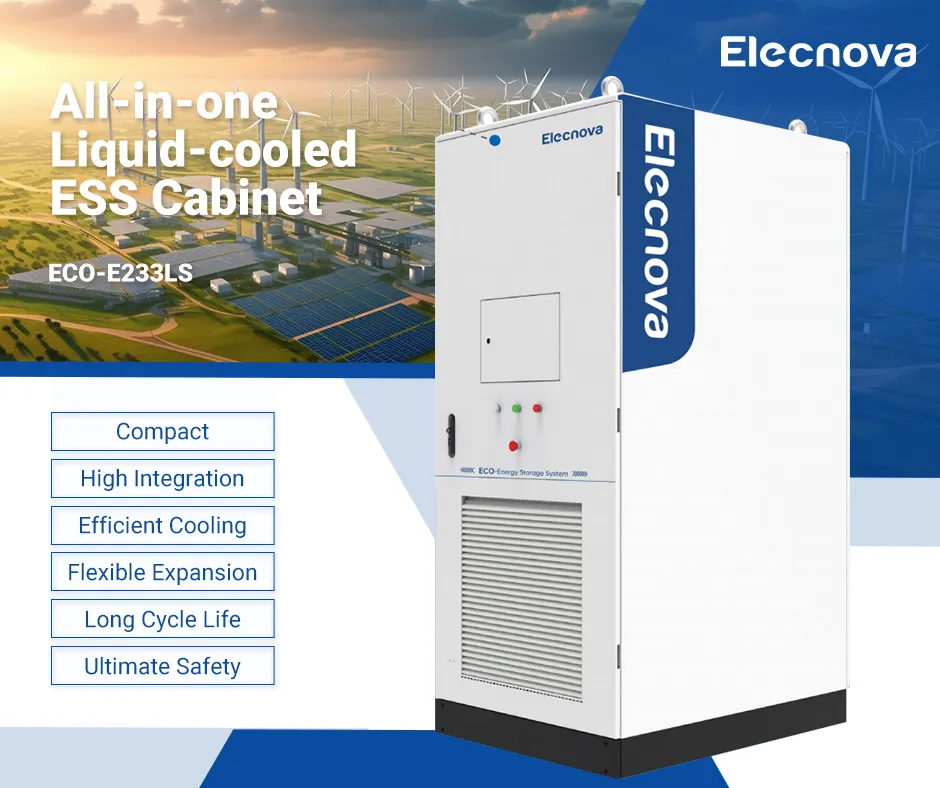

ESS Cabinet details
The all-in-one liquid-cooled ESS cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.

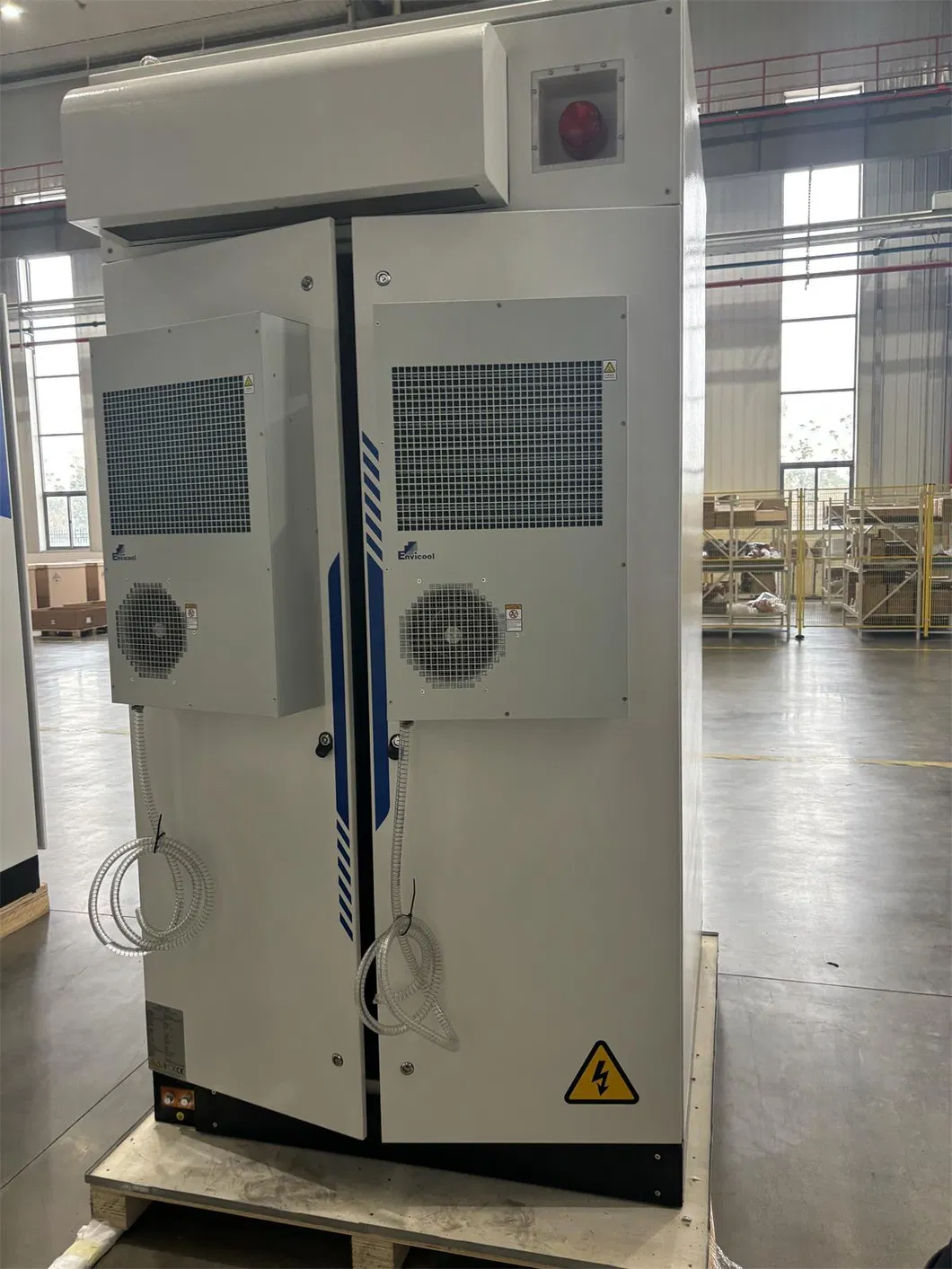

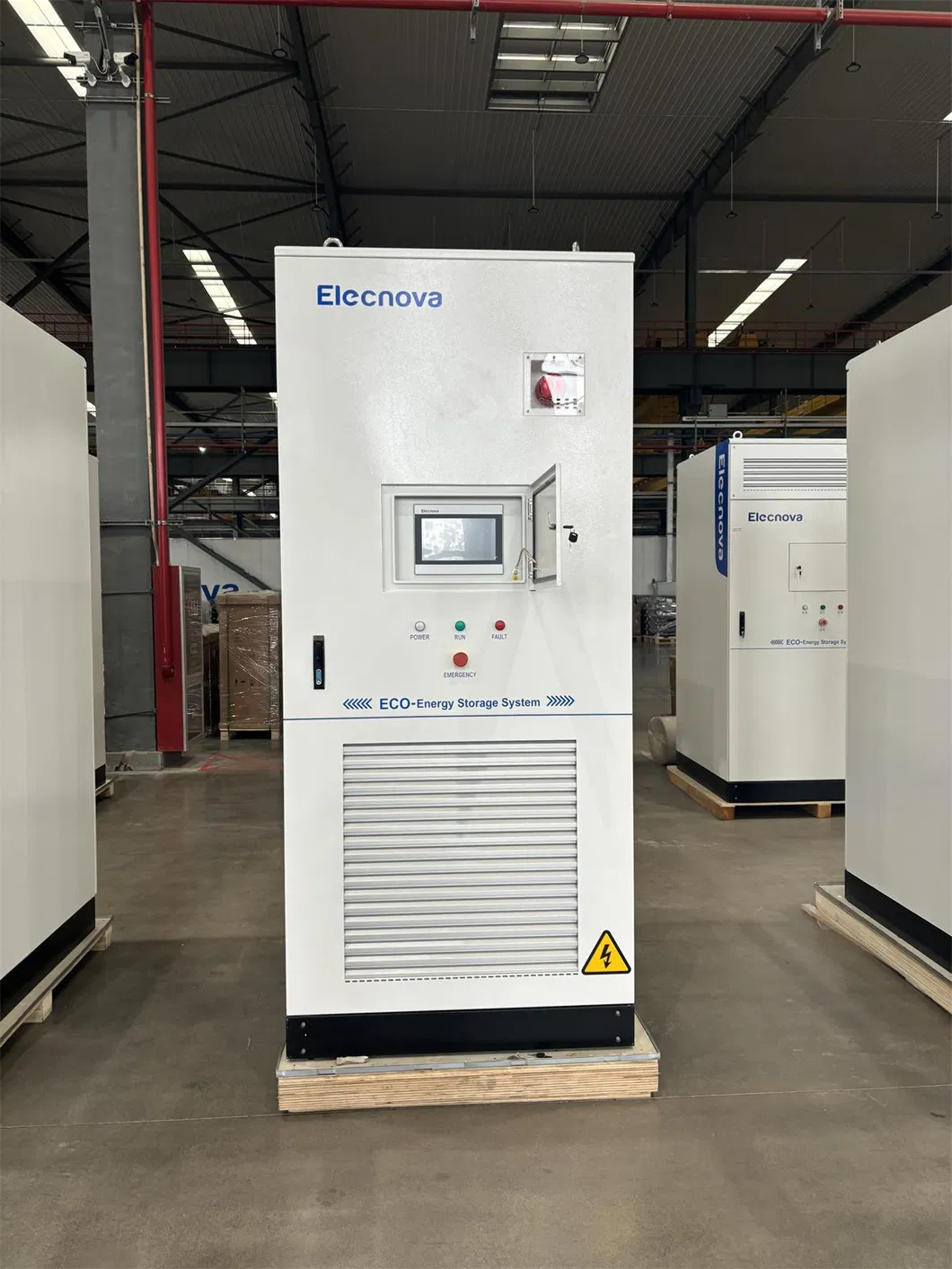

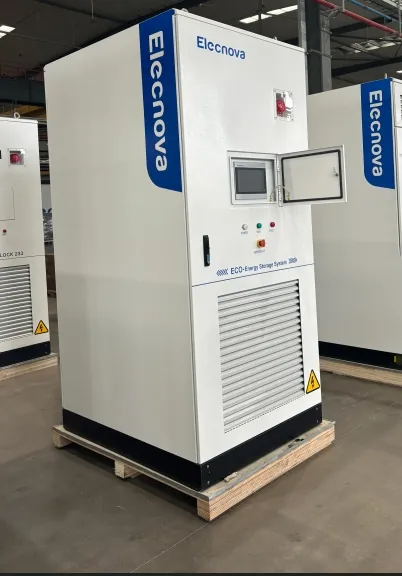

ESS Product feature 1 ESS Product feature 2 ESS Product feature 3

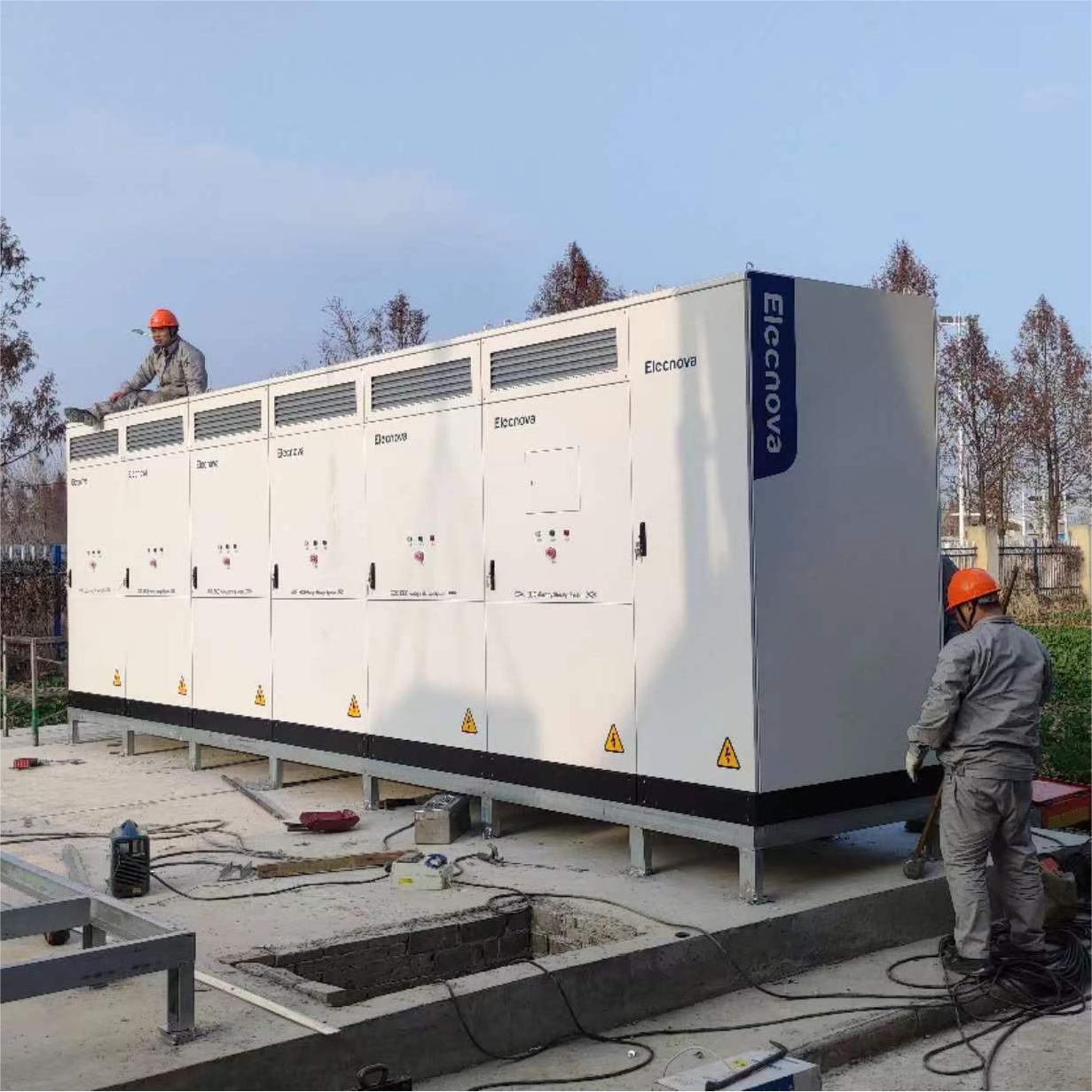

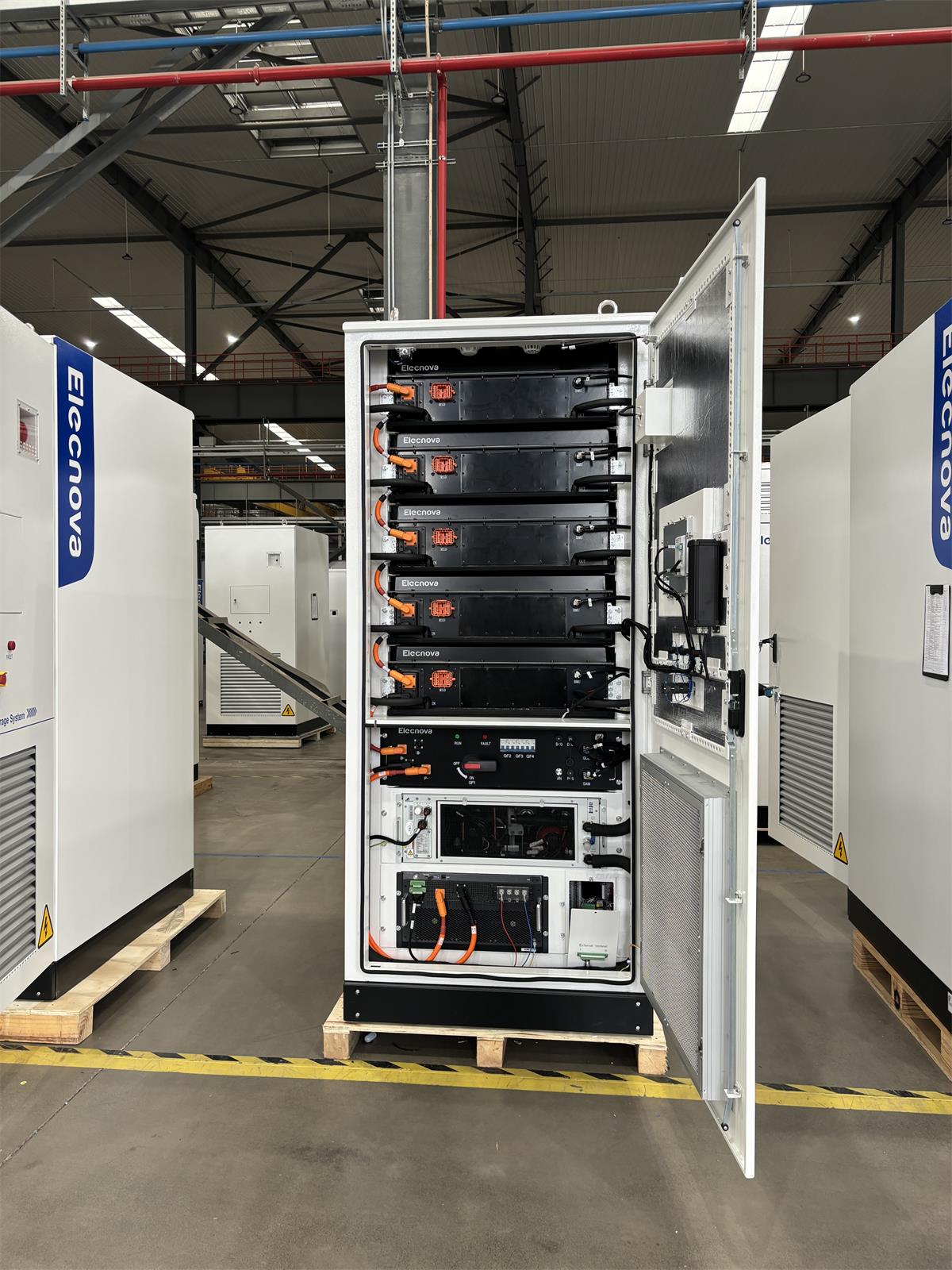

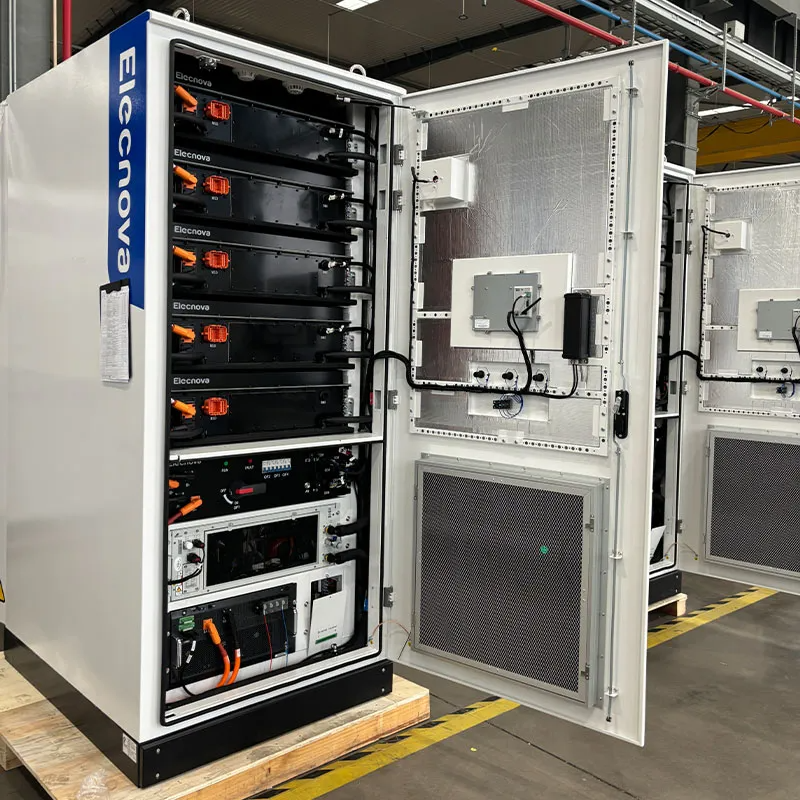

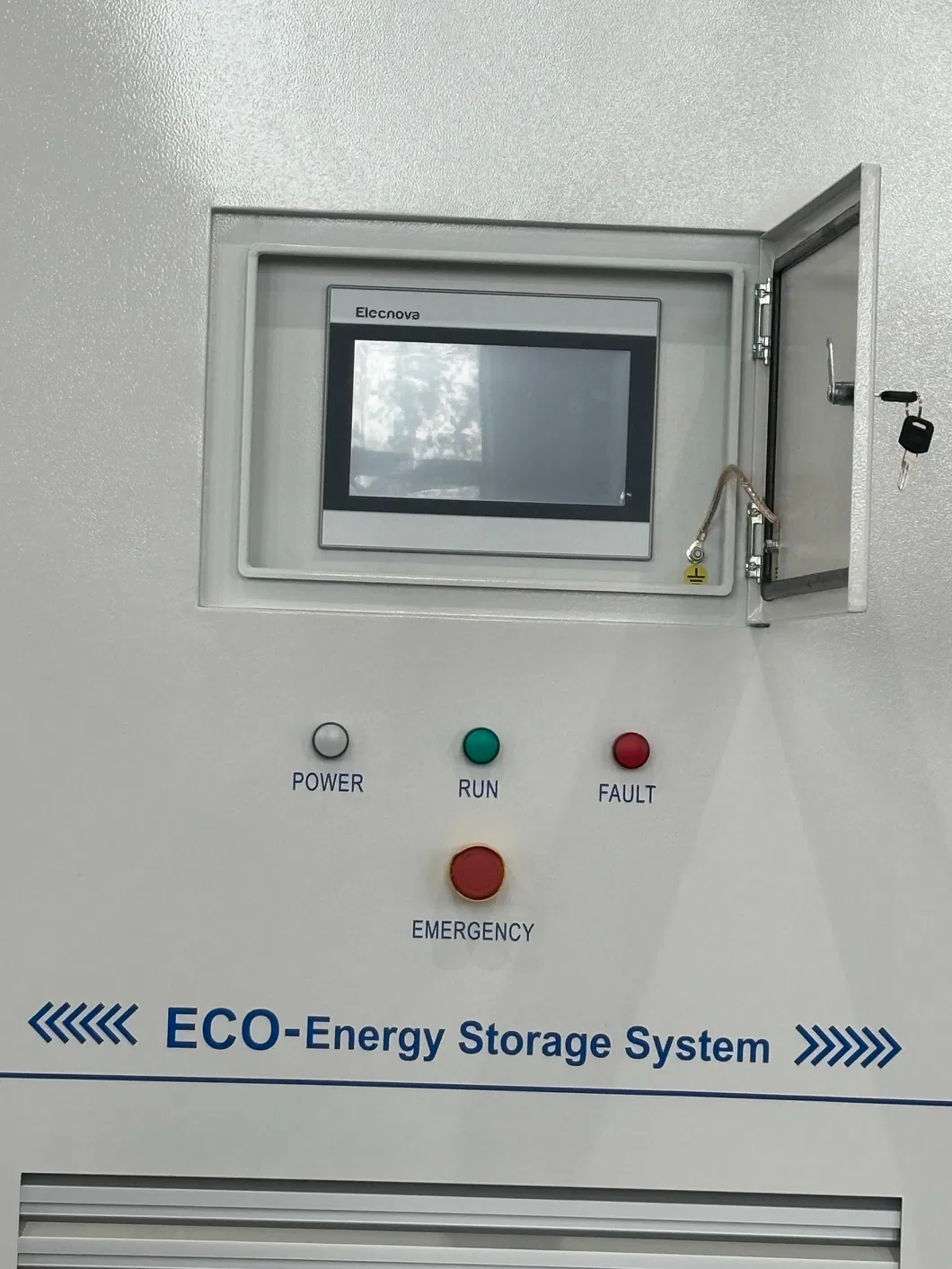

ESS Interior layout ESS Technical drawing ESS Construction site
Specification
Item Specification
Cell Type LFP280Ah
Rated Energy 233kWh
Noise ≤75dB
Voltage Range 728~936Vdc
PACK Ingress Rating IP65
Rated Charge/Discharge Rate 0.5P
Operating Temperature -25°C~55°C
Fire Safety NOVEC1230/aerosol
Ingress Rating IP55
Cooling Chiller+liquid cooling
Altitude ≤2,000m (derating above 2,000m)
Dimensions (W*D*H) 1,050*1,350*2,400 (mm)
Compliance UN38.3, IEC62619, UL1973, UL9540 and CE-EMC
Application
ESS Application scenarios
Company Profile

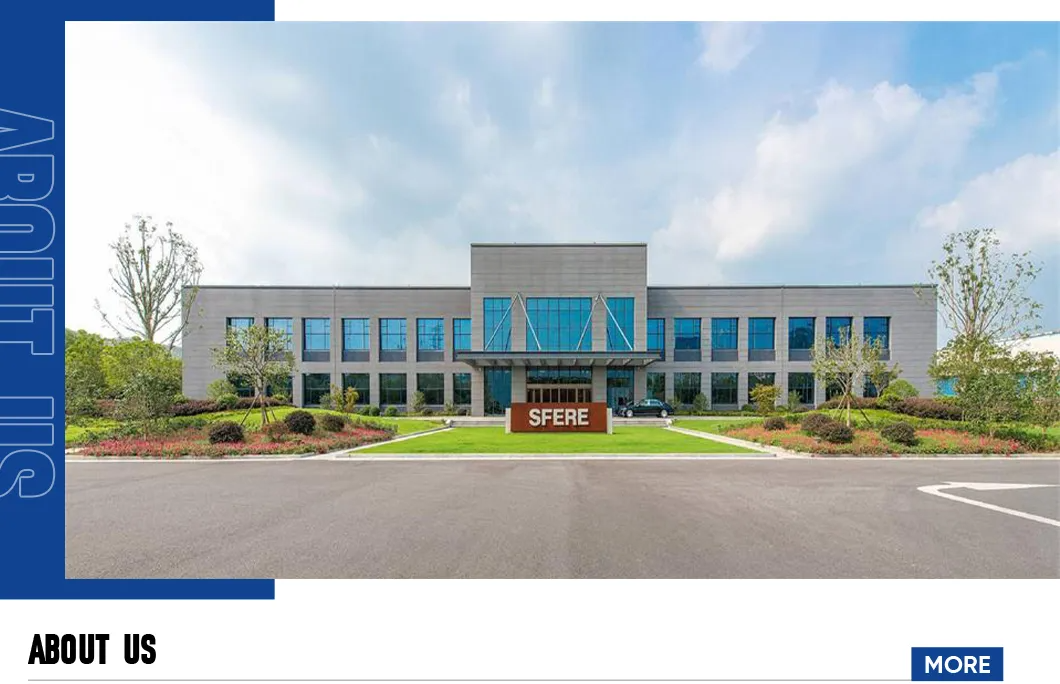

Company facilities
We integrate R&D, manufacturing, sales and service, and have a complete product ecosystem from smart terminal components, smart equipment to the Internet of Things platform. Our electrical application solutions empower users with intelligent and digital energy management, and provide reliable data services for users' energy saving and consumption reduction, energy safety and refined energy management.
Over the past decade, our team has been honored with many awards, such as High-tech Enterprise, Software Enterprise, Excellent Private Technology Enterprise, Engineering Center and Famous Brand. We have obtained 122 invention and utility model patents, 42 software copyrights, etc.
Our company has the overall supporting capability for the system integration of PACK, PCS, and BMS, aiming to meet the diversified energy requirements of segmented markets and customers, with products at the core and quality as the cornerstone. We are committed to providing high-quality customized products and serving various energy consumption scenarios on the power generation side, grid side, and user side.
Company overview banner
Our Certification
Product certifications
Exhibition
Exhibition booth
Packing & Delivery
Packaging and delivery preparation
FAQ
Q Are you trading company or manufacturer ?
We are a manufacturer. Our manufacturing center operates with over 600 employees, including 3 R&D centers and 1 CNAS lab.
Q Can you supply OEM & ODM service?
Yes, we welcome long term strategy business partners to implement the OEM & ODM projects.
Q Can you ship your battery products by sea or by air ?
Our products have obtained the UN38.3 certification, which is available for international sea shipment.
Q How long is the warranty?
We provide warranties of 3, 5, or 10 years depending on different prices and configuration conditions.
Q How do you provide after-sales service?
We have overseas affiliates and business partners worldwide for prompt on-site maintenance.
Q Can I get a sample?
Yes, please contact us for more details and sample requests.
