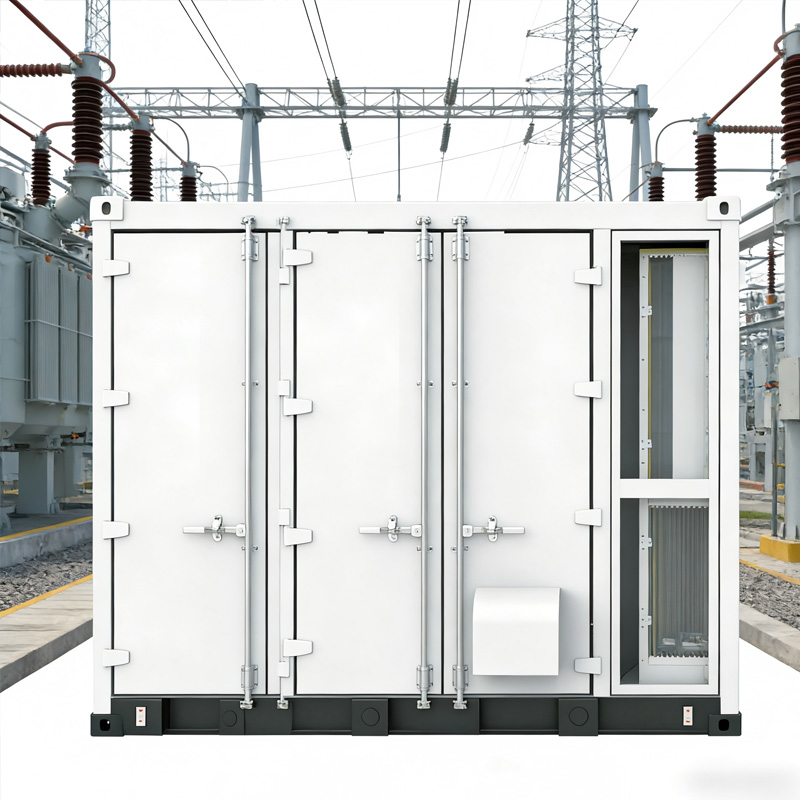

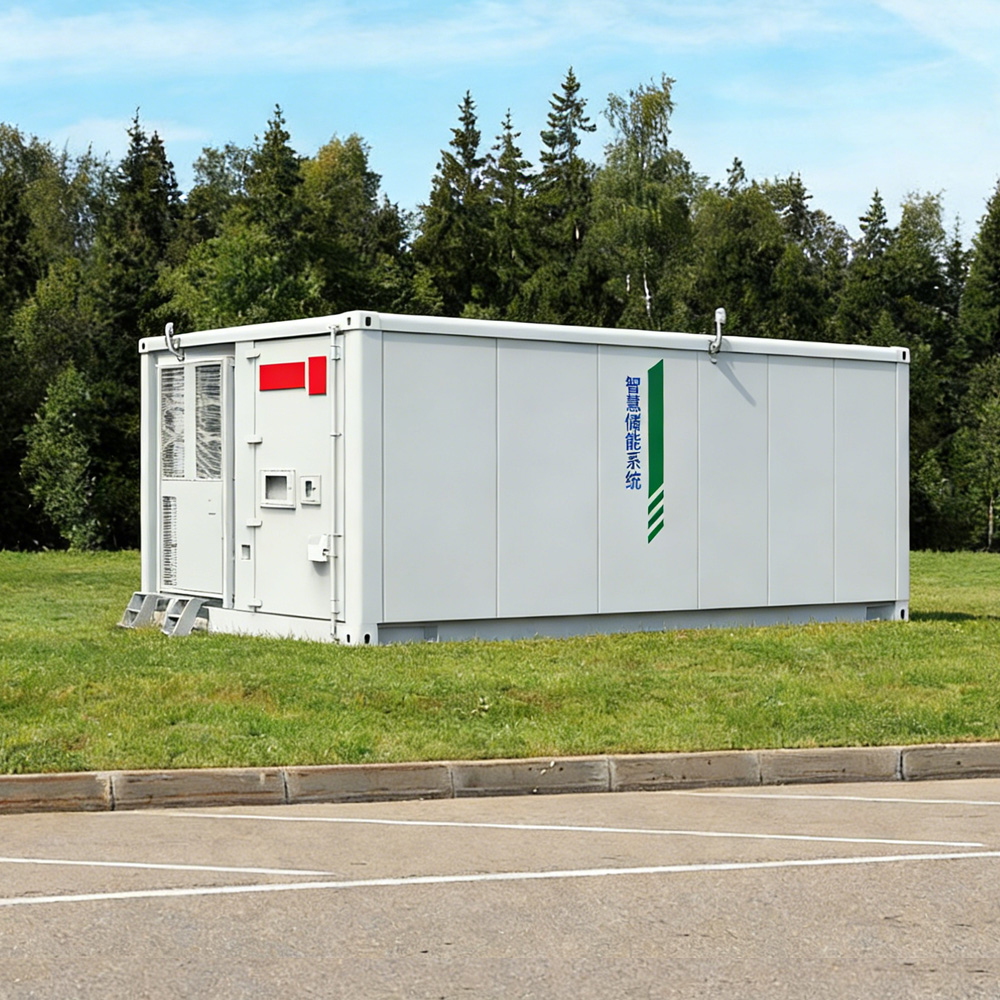

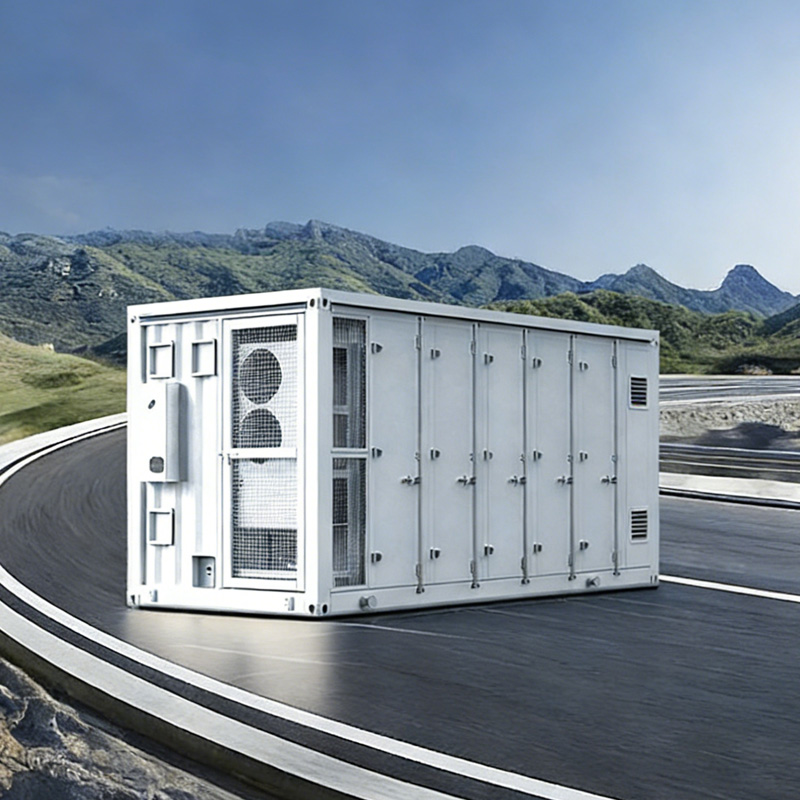

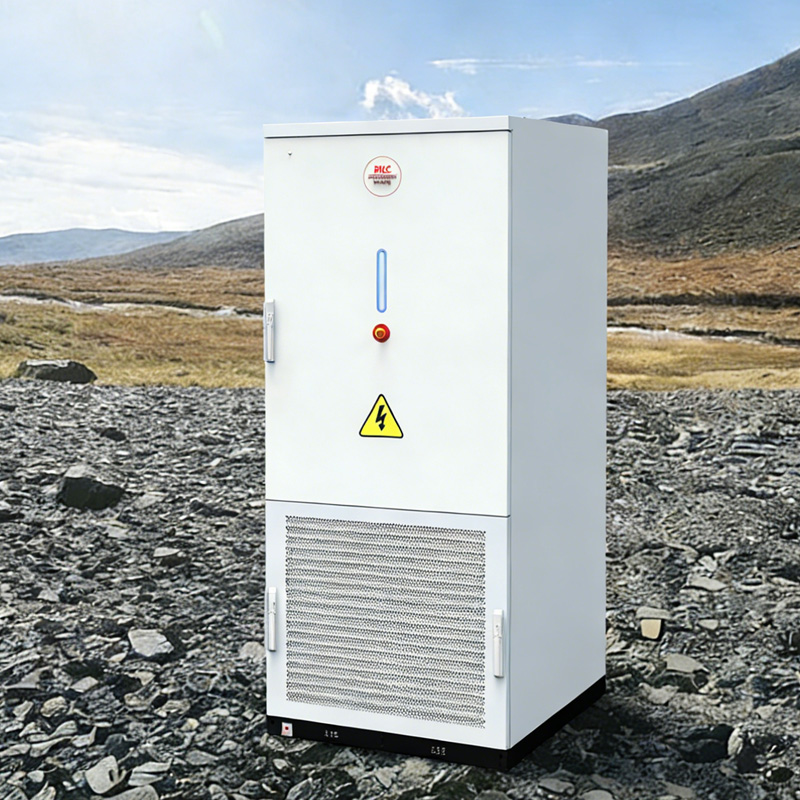

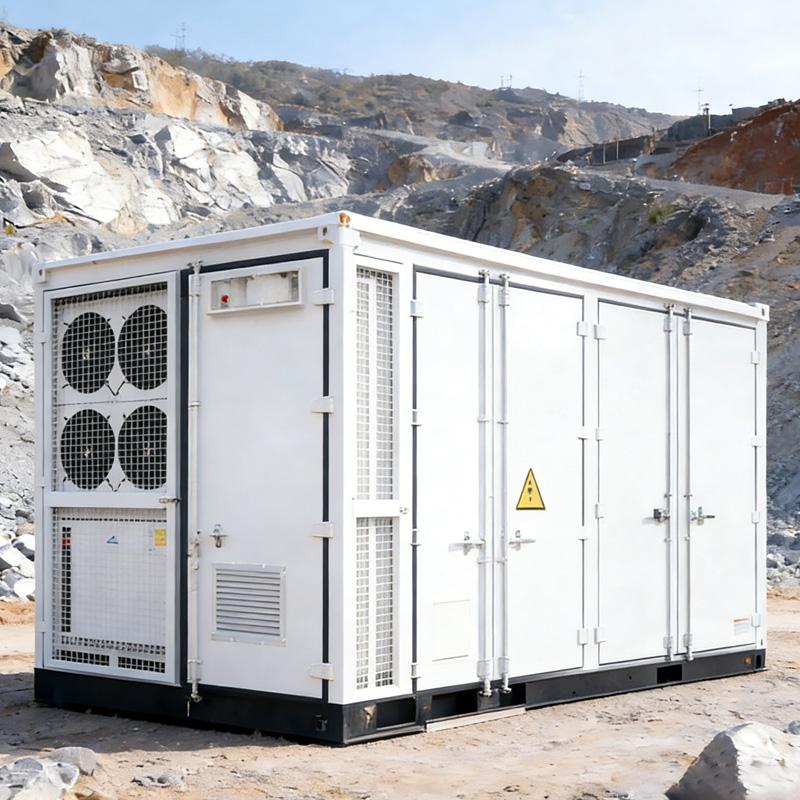

Containerised Fireproof Commercial Energy Storage for Data Center 24/7 Emergency Power Supply Commercial Energy Storage

Product Description

Battery System Header
Products Description

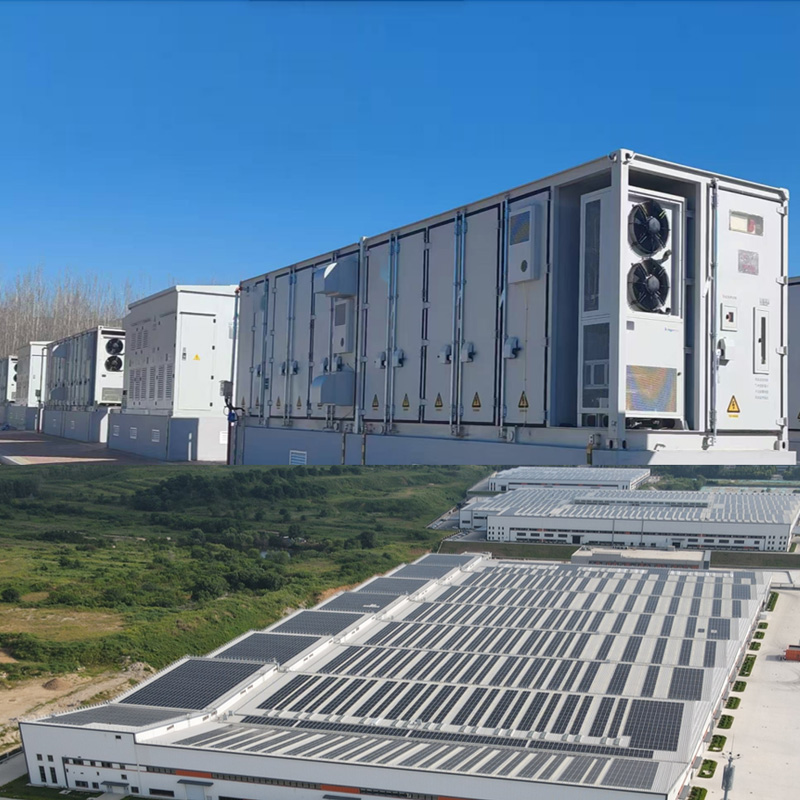

Product Setup

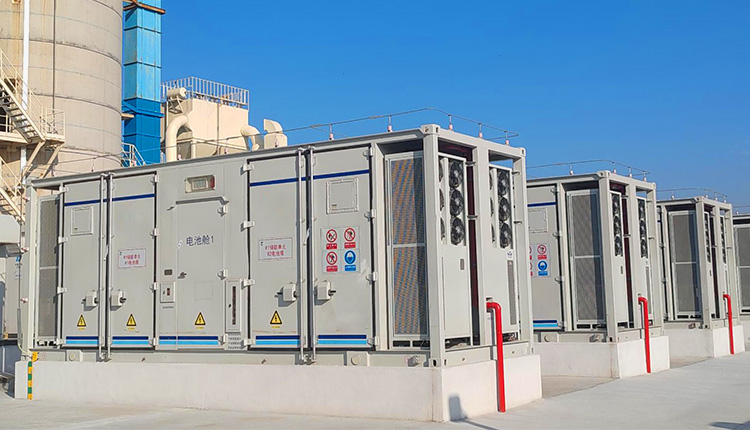

Product Structure

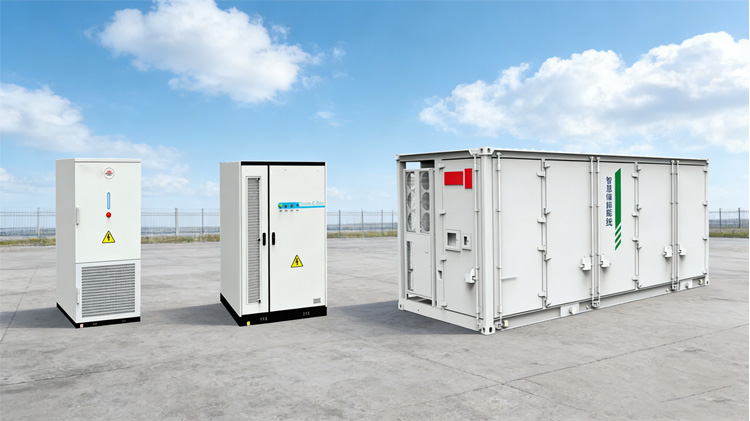

Battery Pack View

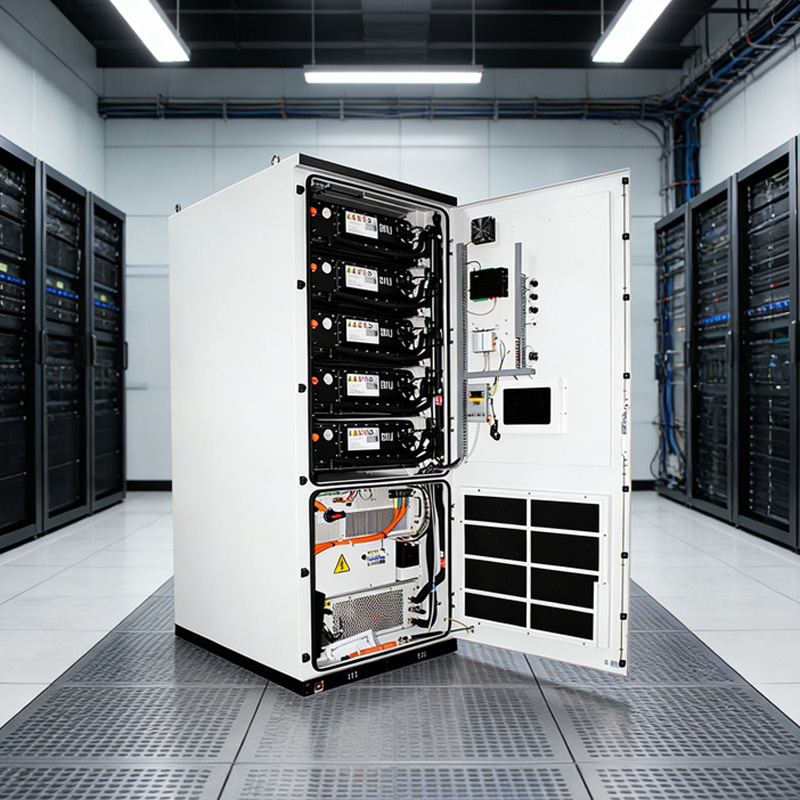

Battery Storage Inside

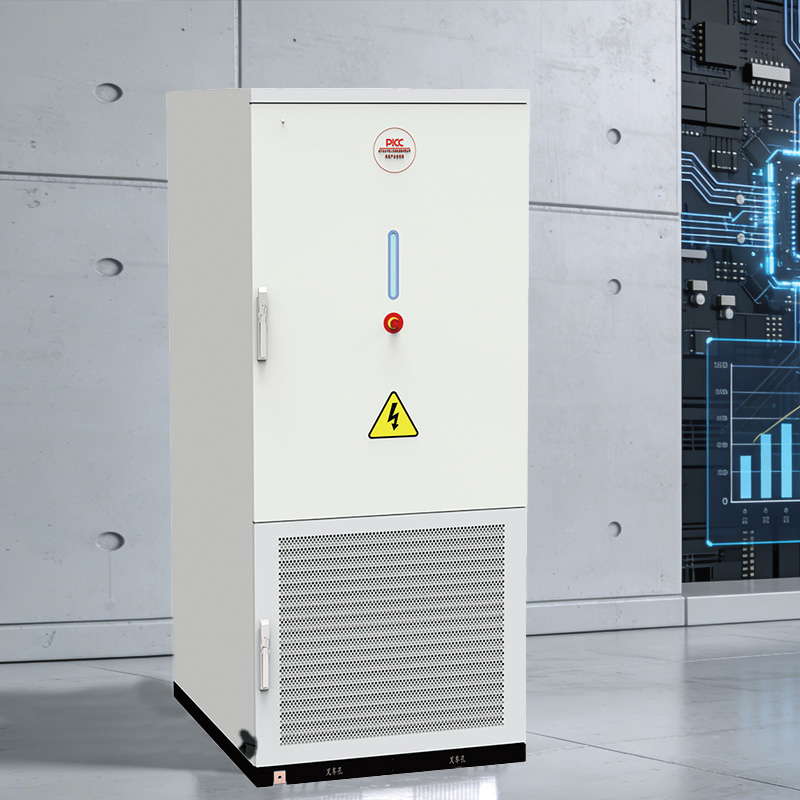

Control Panel Box
High Efficiency
91%+ RTE for maximum energy utilization.
Active Safety
Real-time monitoring, early warning & spray protection.
Flexible Operation
Seamless grid/island switching enhances reliability.
Long Life
8,000+ cycles, up to 15-year service life.
Precision Cooling
Full liquid cooling keeps cell temperature difference ≤3°C.
Modular Design
Supports easy expansion and mobile deployment.

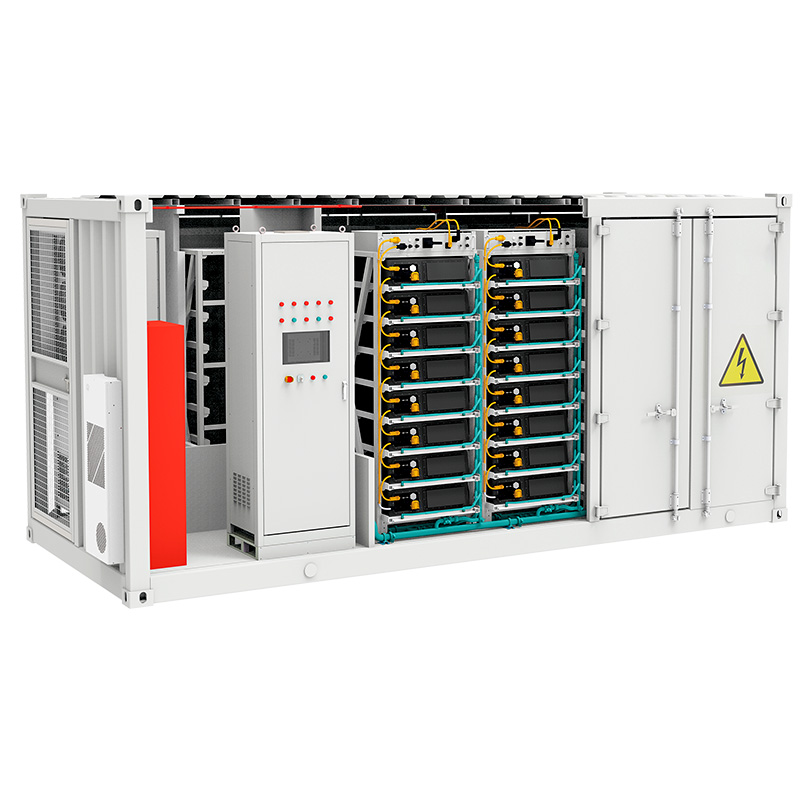

Dimensional Drawing
Model ENNP-BES-261 ENNP-ESS-5015
Rated Capacity(kWh) 261 5015
System Power(kW) 125 2500
Nominal Voltage(V) AC 400V 1332V
Standard Charge C-rate 0.5P, 25±2°C 0.5P, 25±2°C
Battery Cell Model LFP-314 LFP-314
Cooling Method Liquid Cooling Liquid Cooling
Environment Temperature -20-60°C -20-60°C
Communication Method LAN/CAN/RS485 LAN/CAN/RS485
Life Cycle ≥8000 times, @25°C, DOD95%, EOL80% ≥8000 times, @25°C, DOD95%, EOL80%
Fire Suppression System Perfluorohexanone (in-package detection + cluster-level fire fighting)+ cluster-level aerosol (optional)+ water fire fighting Perfluorohexanone (in-package detection + cluster-level fire fighting)+ cluster-level aerosol (optional)+ water fire fighting
Dimension(W*D*H), Weight 1000*1300*2400mm, 2800kg 6058*2438*3000mm, 43t
Industrial Project Setup
Project Introduction:
A large-scale industrial park in Shandong Province, China, hosts energy-intensive enterprises with a monthly power consumption of 10 million kWh and incurs relatively high electricity costs.
Equipments’ Technology: 5MWp PV System, 5MW/10MWh BESS, Micro-grid energy management system
Functions:
1. The energy storage system charges during off-peak electricity rates and discharges during peak rates, saving approximately 200,000 RMB yuan in electricity costs per month.
2. The BESS can serve as a backup power source to stabilize voltage and frequency.
Core Technology

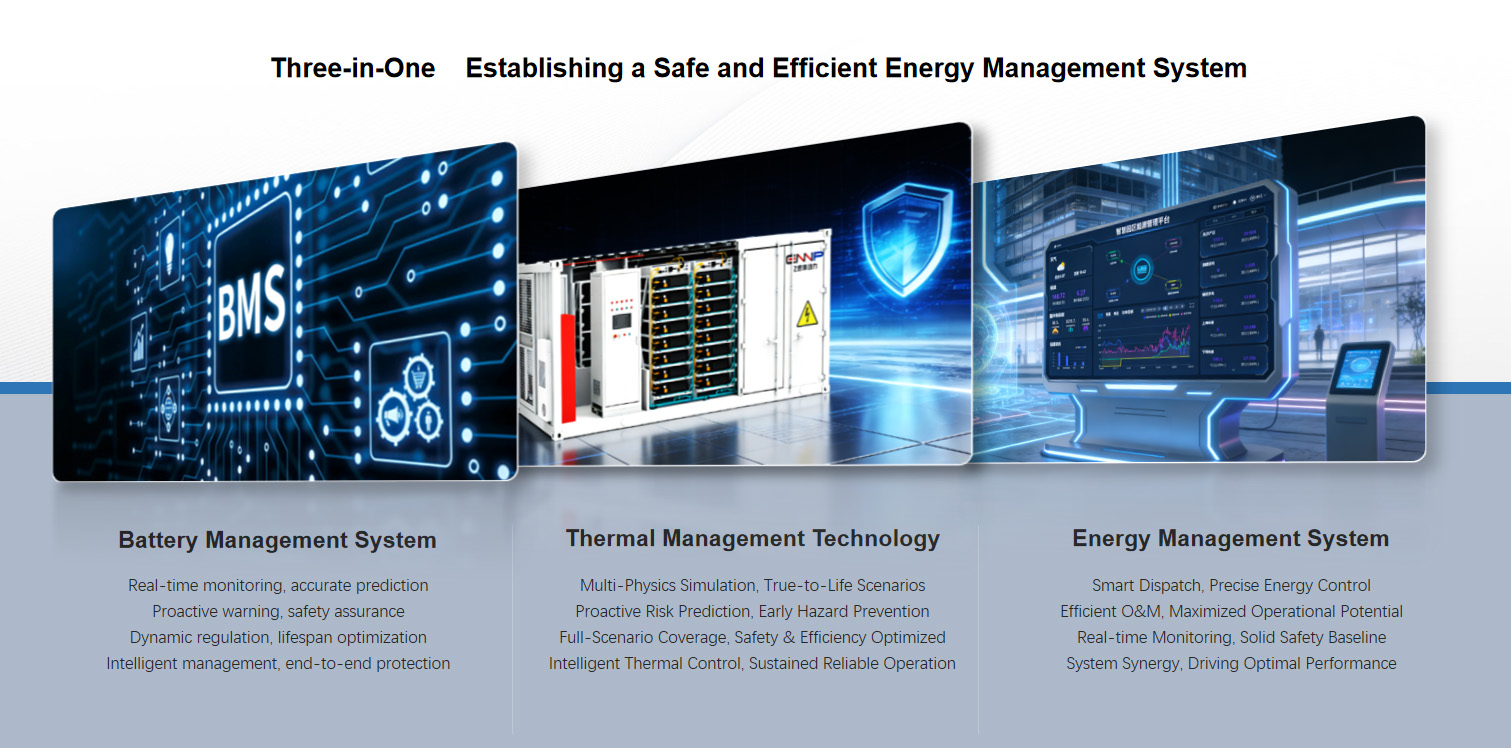

Three-in-One Establishing a Safe and Efficient Energy Management System
Three in One Diagram
Battery Management System
Real-time monitoring, accurate prediction
Proactive warning, safety assurance
regulation, lifespan optimization
Intelligent management, end-to-end protection
Thermal Management Technology
Multi-Physics Simulation, True-to-Life Scenarios
Proactive Risk Prediction, Early Hazard Prevention
Full-Scenario Coverage, Safety & Efficiency Optimized
Intelligent Thermal Control, Sustained Reliable Operation
Energy Management System
Smart Dispatch, Precise Energy Control
Efficient O&M, Maximized Operational Potential
Real-time Monitoring, Solid Safety Baseline
System Synergy, Driving Optimal Performance
EMS Details
Application
Application Environments
Company Profile

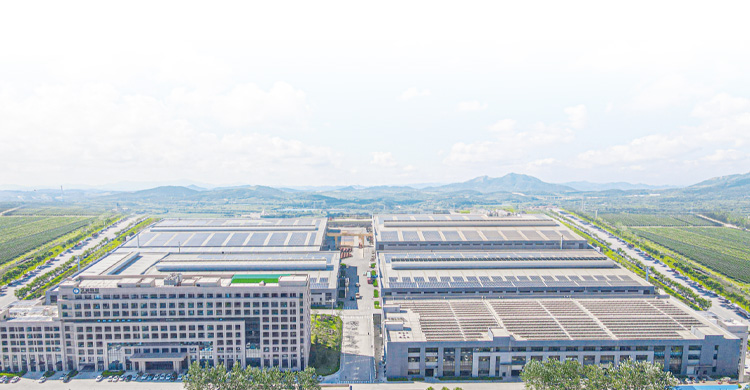

Factory Facility
Professional lithium battery manufacturer, high-Tech Enterprise with a Management Team combining experiences from CATL, and HuaWei over 16 years industry experience and they have gathered a vast amount of knowledge and outstanding industry talents to improve R&D and design. We not only can provide standard battery solution, but also customized battery solution.

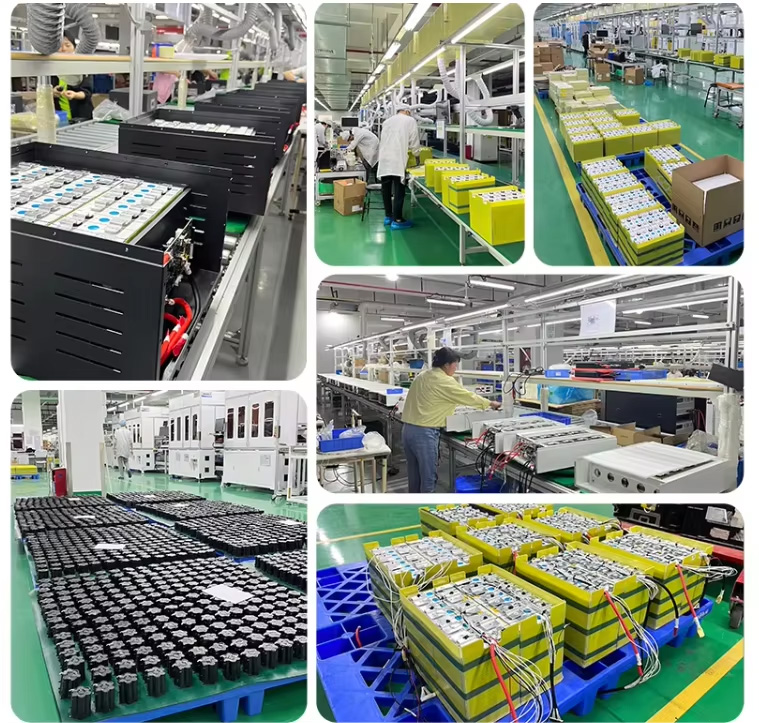

Production Line
The company has collaborated with well-known domestic intelligent equipment integration manufacturers to develop a highly flexible battery module production line and power battery packaging wiring. The production lines equipped with automatic error prevention system, it can achieve automatic detection of battery cells, intelligent visual recognition, and comprehensive and static testing of power battery packs, and have the ability to quickly deliver high-quality and diverse products at low cost through large-scale production. The total investment of Phase I factory is RMB 300 million, with a total construction area (36000 square meters), mainly produces power battery systems for construction machinery, mining machinery, electric motor control systems, and intelligent Energy storage systems, etc.
Certifications
Certification Documents
FAQ
Are the batteries grade A brand new?
Yes, the QR code is intact, Grade A, brand new.
Will the package be tough enough to protect the cells?
Our batteries will be securely packaged using thick PE foam and placed within.
How can I place the order?
Usually, we accept Alibaba Trade Assurance orders online. Our sales team will create an online order for you.
Can you test each battery prior to shipping?
We will test the voltage and internal resistance of all the batteries before shipping.
What about the lead time?
Our delivery times differ for standard and customized products. Standard orders typically ship within 3 days for 100 sets, within a week for 200 sets, and within 2 weeks for 500 sets. Customized orders take a bit longer: 20 days for 100 sets, 25 days for 200 sets, 30 days for 500 sets, and 40 days for orders over 500 sets.
Do you offer technical support for your products?
Absolutely. We provide comprehensive technical support via online video sessions, ensuring that you receive assistance whenever needed throughout the product lifecycle.
